Brother MFC-J6535DW Service Manual

3-57
Confidential

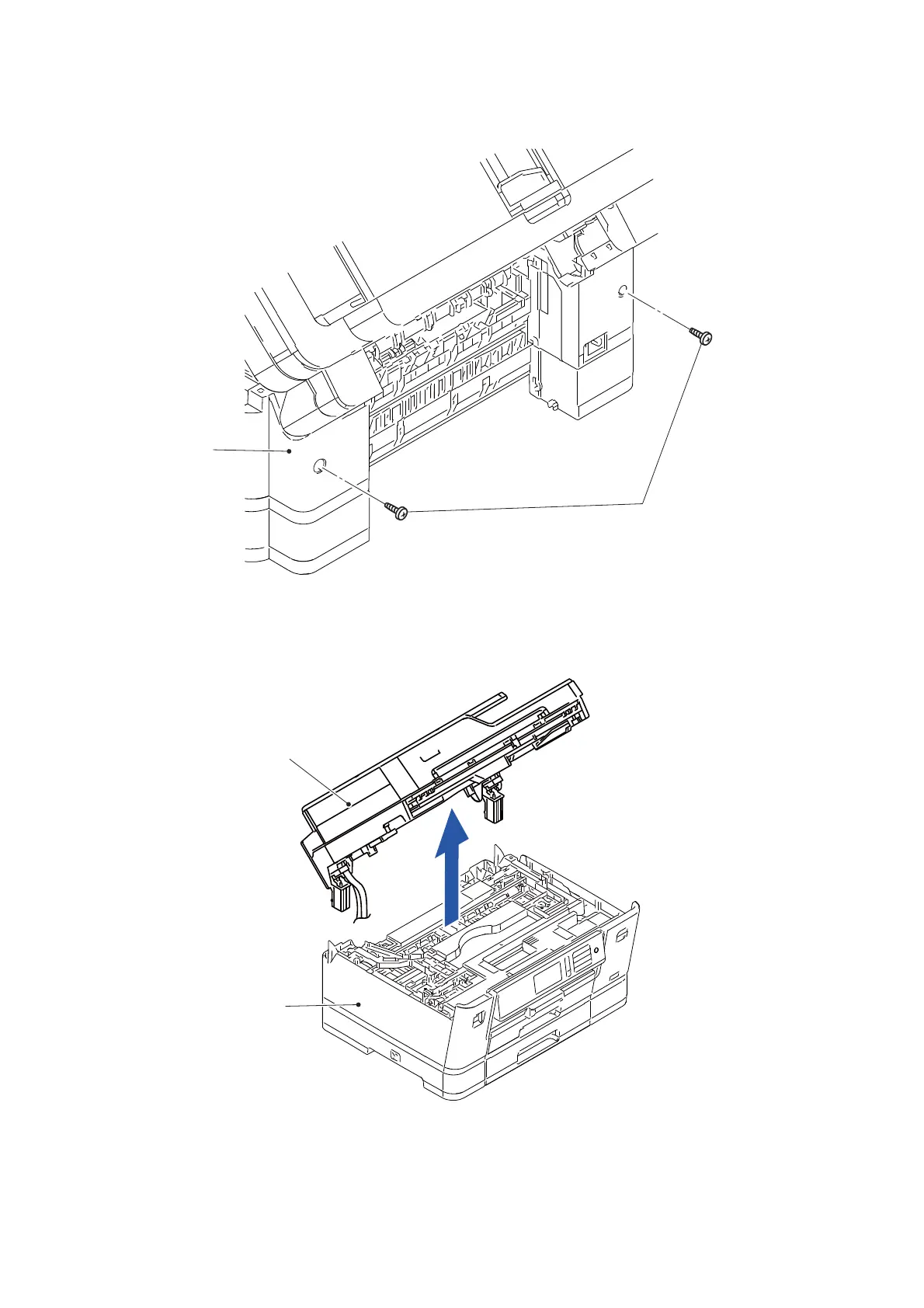

(13)Remove the two screws (TAPTITE BIND B M4x12) from the Main body.
Fig. 3-41
(14)Lift and remove the Document scanner unit from the Main body.
Fig. 3-42
(15)Remove the three screws (TAPTITE BIND B M4x12) each from the left and right
FB hinges to remove them from the Document scanner unit
TAPTITE BIND B M4x12
Main body
Document scanner unit
Main body
