Brother MFC-J6535DW Service Manual

3-81
Confidential
(2) < India model only > Peel off the Upper cover dust foam from the Upper cover.
Note: Once removed, the Upper cover dust foam should be replaced with a new
one.
(3) Remove the six screws (TAPTITE BIND B M4x12) and remove the Upper cover
from the Lower cover.

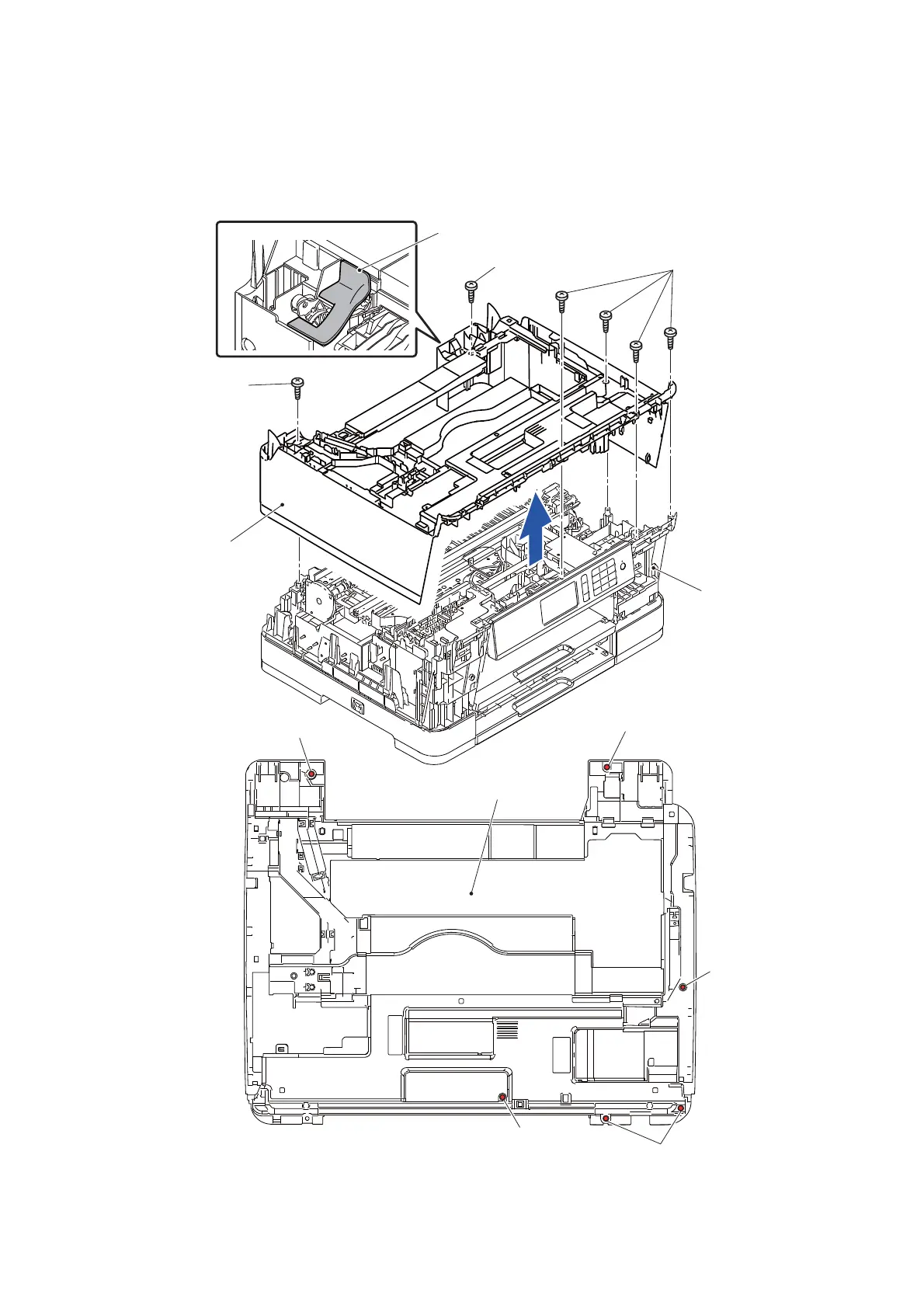

Fig. 3-83
TAPTITE BIND B
Upper cover
Lower cover
M4x12
TAPTITE BIND B M4x12
TAPTITE BIND B
M4x12
TAPTITE BIND B
M4x12
TAPTITE BIND B M4x12
TAPTITE BIND B M4x12
Upper cover
<Top view>
TAPTITE BIND B M4x12
TAPTITE BIND B M4x12
Upper cover dust foam
< India model only >
