(4) Remove the screw (SCREW PAN (S/P WASHER) M3.5x6) and remove the AC
cord FG wire. (Case of 200 V)
Assembling Note: After connecting the AC cord FG wire, be sure to check that there
is no looseness of the wire.
(5) Remove the Power cord and two Ferrite cores from the Enclosure base.
Assembling Note: When handling the Power cord, be sure to check the sheath is not
damaged.
(6) < Made-in-Philippines machine only >
Remove the Protect holder L/R from the Power supply unit.
(7) Remove the three screws (SCREW CUP M3x6) and remove the Power supply
PCB ASSY from the Power supply unit.
Assembling Note: Two insulation sheets must be interleaved without damage
between the Power supply PCB ASSY and Power supply unit.
(8) Disconnect the Power supply harness from the Power supply PCB ASSY.

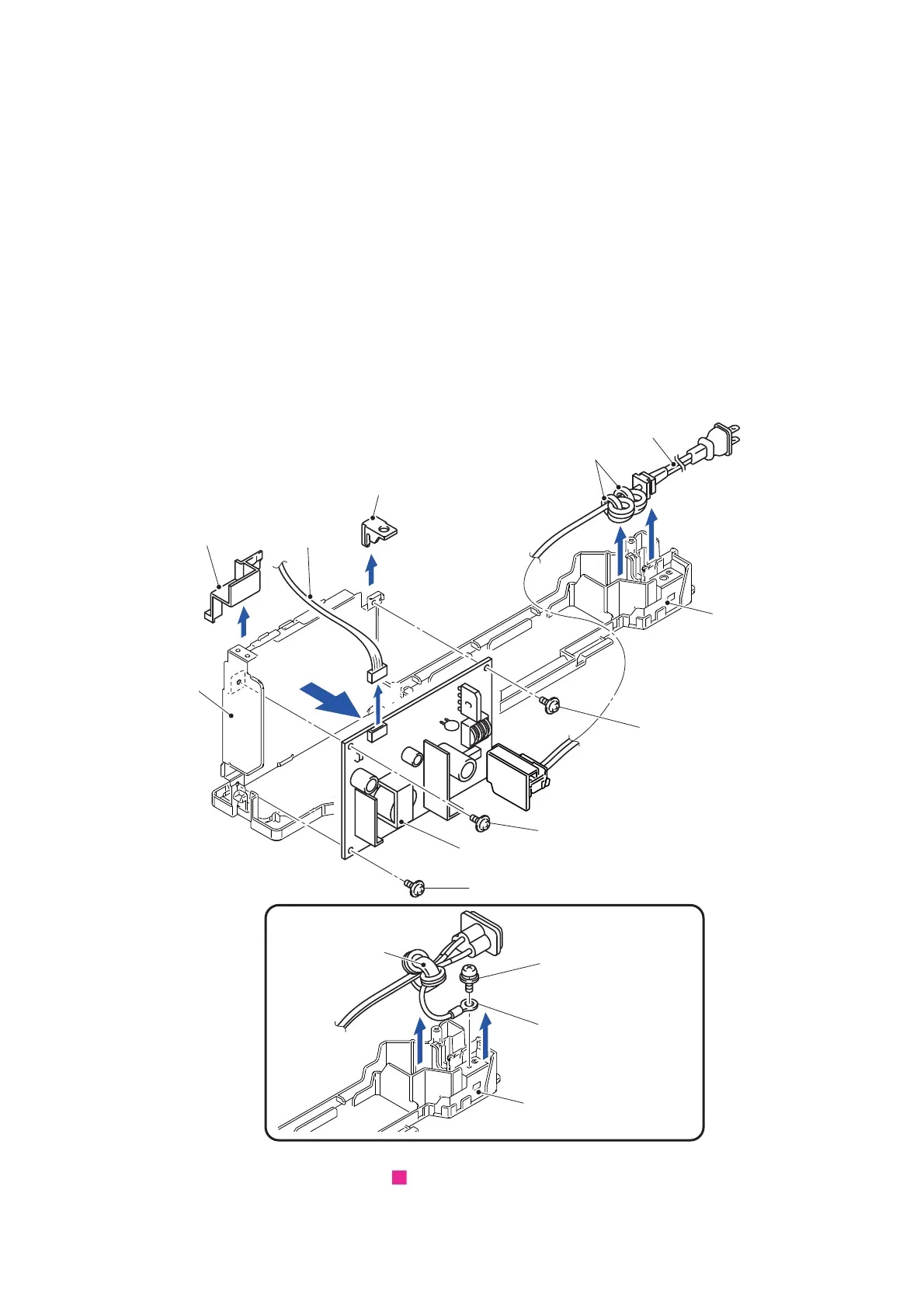

Fig. 3-165
Routing of harnesses: See “ Power supply PCB ASSY”.
Power cord
Ferrite cores
SCREW CUP M3x6
Power supply PCB ASSY
SCREW CUP M3x6
Power supply
Power supply unit
Enclosure base
5
5
7
8
SCREW CUP M3x6
4
4
<Case of 200 V>
Ferrite core
SCREW PAN
AC cord FG wire
Enclosure base
(S/P WASHER) M3.5x6
Protect holder R
harness
Protect holder L
6
6
12
