3-133
Confidential
9.55 Paper Feed Motor

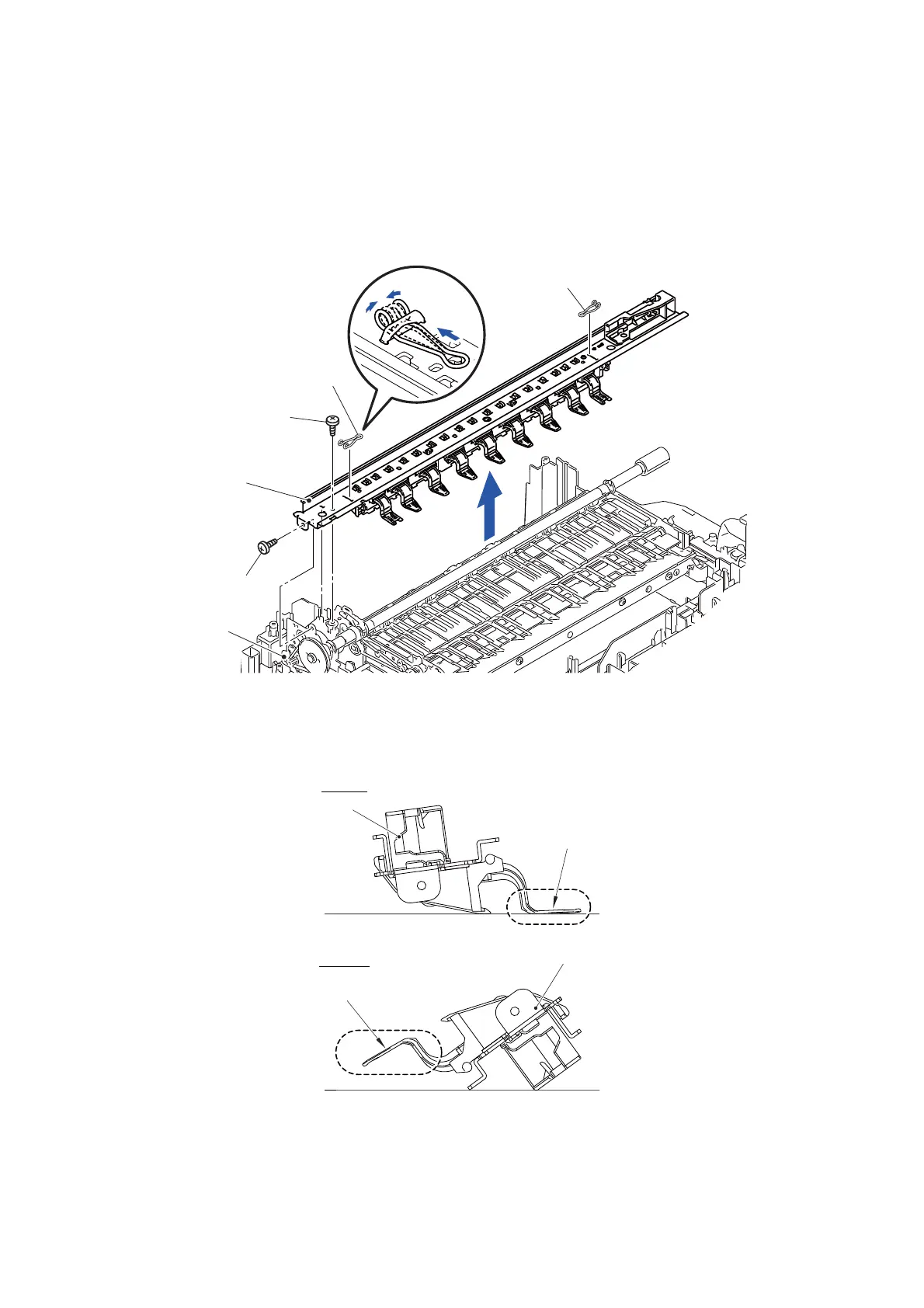

(1) Remove the two screws (SCREW BIND M3x6) from the CR guide rail.
(2) Remove the two CR guide rail springs.
(3) Remove the CR guide rail from the Main body.
Fig. 3-173
Note: Do not place the removed CR guide rail with the Recording paper holder down.
Fig. 3-174
CR guide rail spring
SCREW BIND M3x6
CR guide rail
SCREW BIND M3x6
Main body
CR guide rail spring
CR guide rail
CR guide rail
Recording paper holder
Recording paper holder
Wrong
Correct
