3-138
Confidential
Assembling Note: Platen springs should not be bent or turned over.

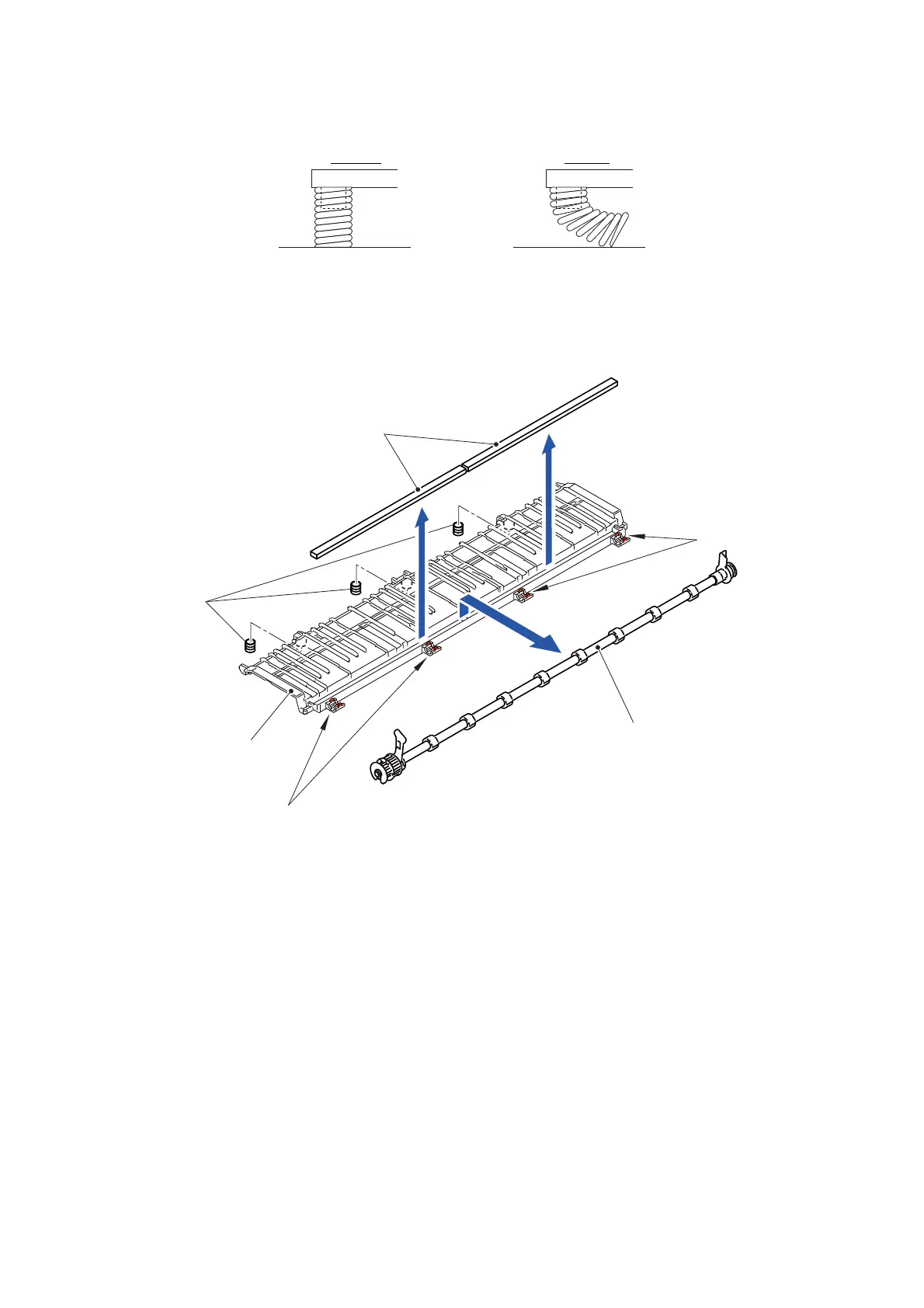

Fig. 3-183
(5) Release the four Hooks and remove the Paper ejection roller from the Platen.
(6) Remove the Platen springs and Platen foam from the Platen.
Fig. 3-184
WrongCorrect
Hooks
Hooks
Paper ejection roller
Platen
Platen springs
Platen foam
