Brother PR600 - Case Guide UL Assembly

3 - 52
Main unit
Needle bar unit
1
Case guide UL assembly

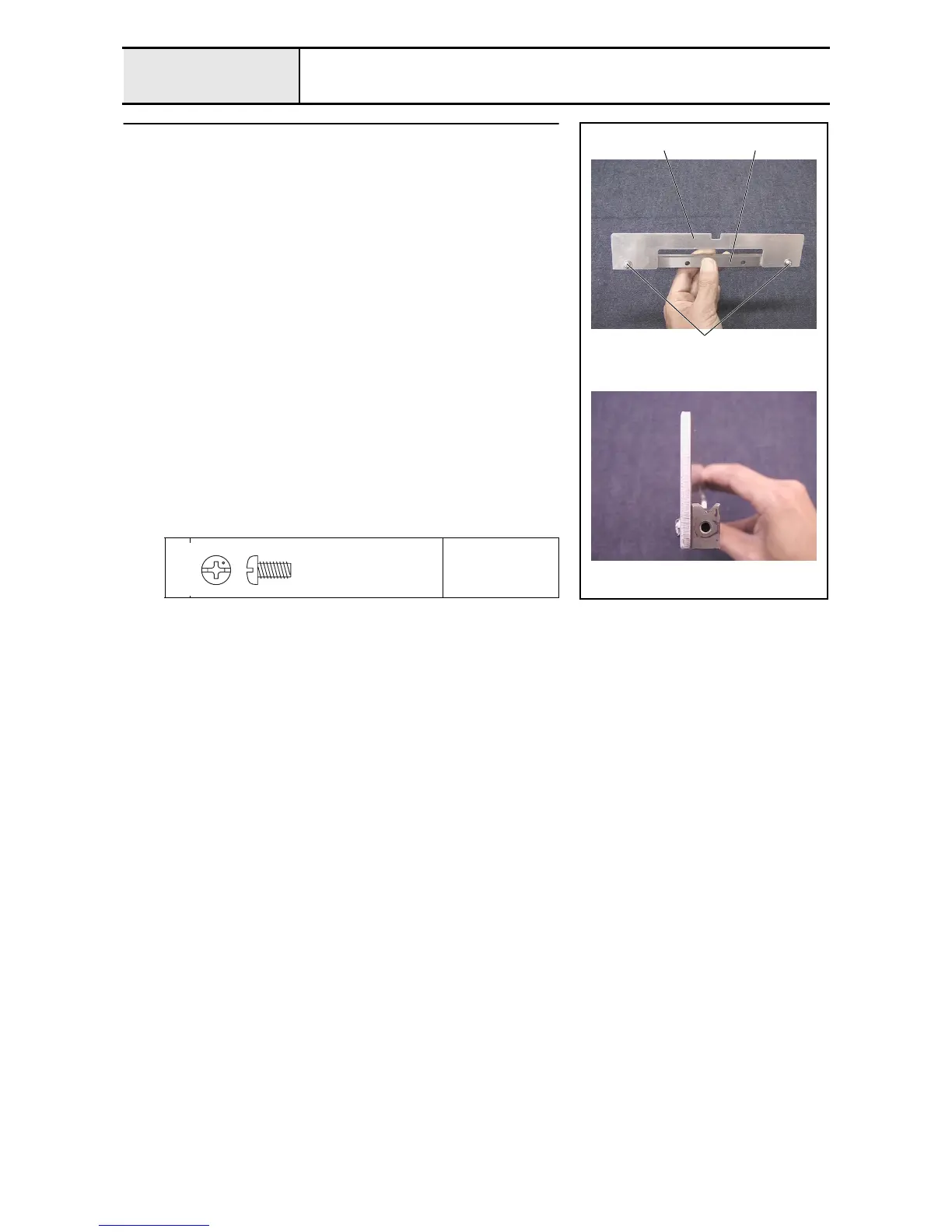

1. Attach the thread take-up guide 2 to the case guide UL 1 with the 2
screws 1.
*Key point
• Check that these are attached in the direction shown in the
photo.
1
Torque
1.18 – 1.57 N-m
1
1
2
Screw, Pan
M4X8
Color; Silver
