Brother PR600 - Base Cover R Removal

2 - 7
Main parts
Main unit
Disassembly
5
Base cover R removal

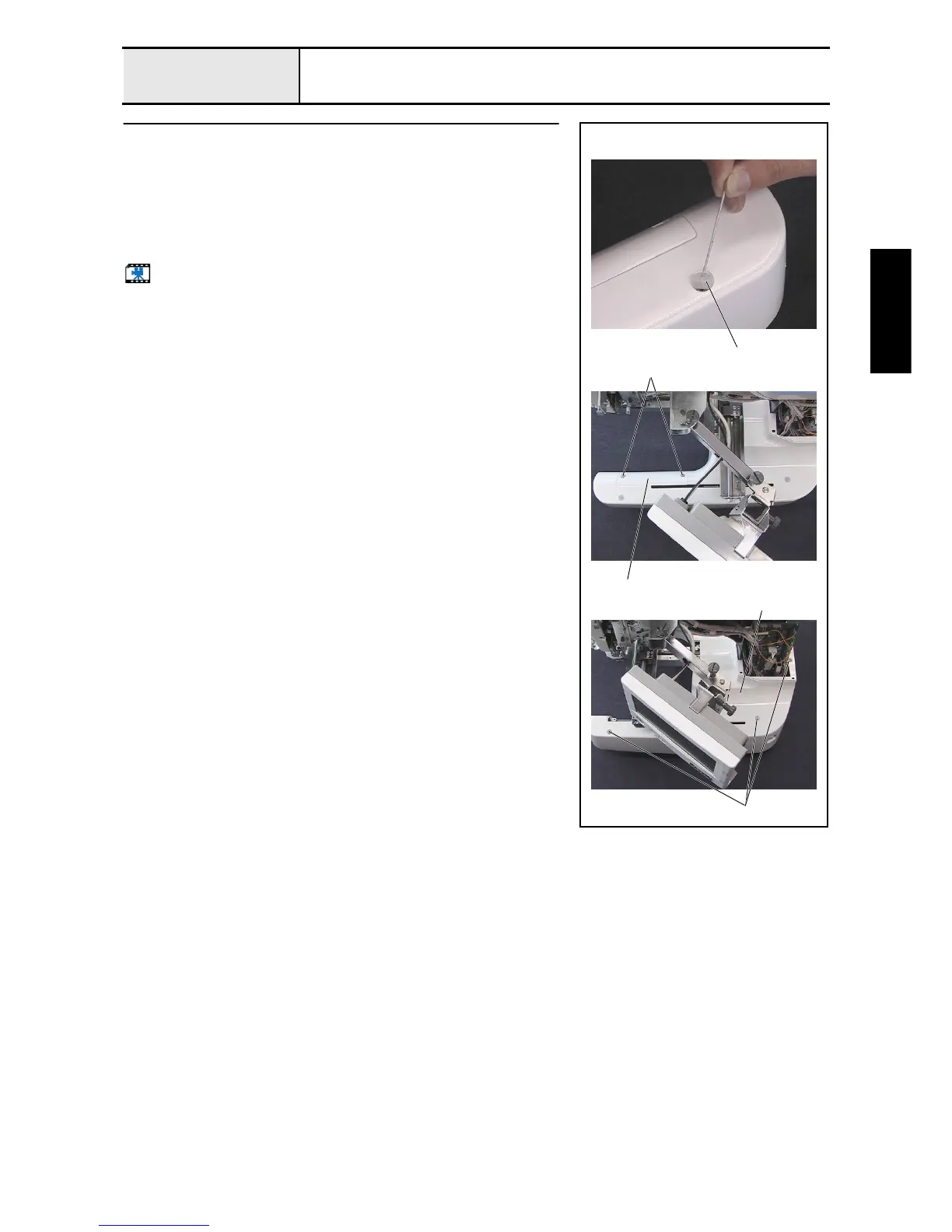

1. Remove the 2 screw covers 1.
2. Remove the 2 screws 1 and then remove the base cover R lid 2.
3. Removes the 3 screws 2 and then remove the base cover R 3.
*Key point
• ·Fully draw the feed final assembly toward you before
removing the base cover R.
Start movie clip (CD-ROM version only)
1
2
3
1
2
