Brother PR600 - Needle Bar Case Final Assembly Removal; Change Roller Base Assembly Removal; Case Guide D Removal

2 - 37
Needle bar unit
Main unit
Disassembly
1

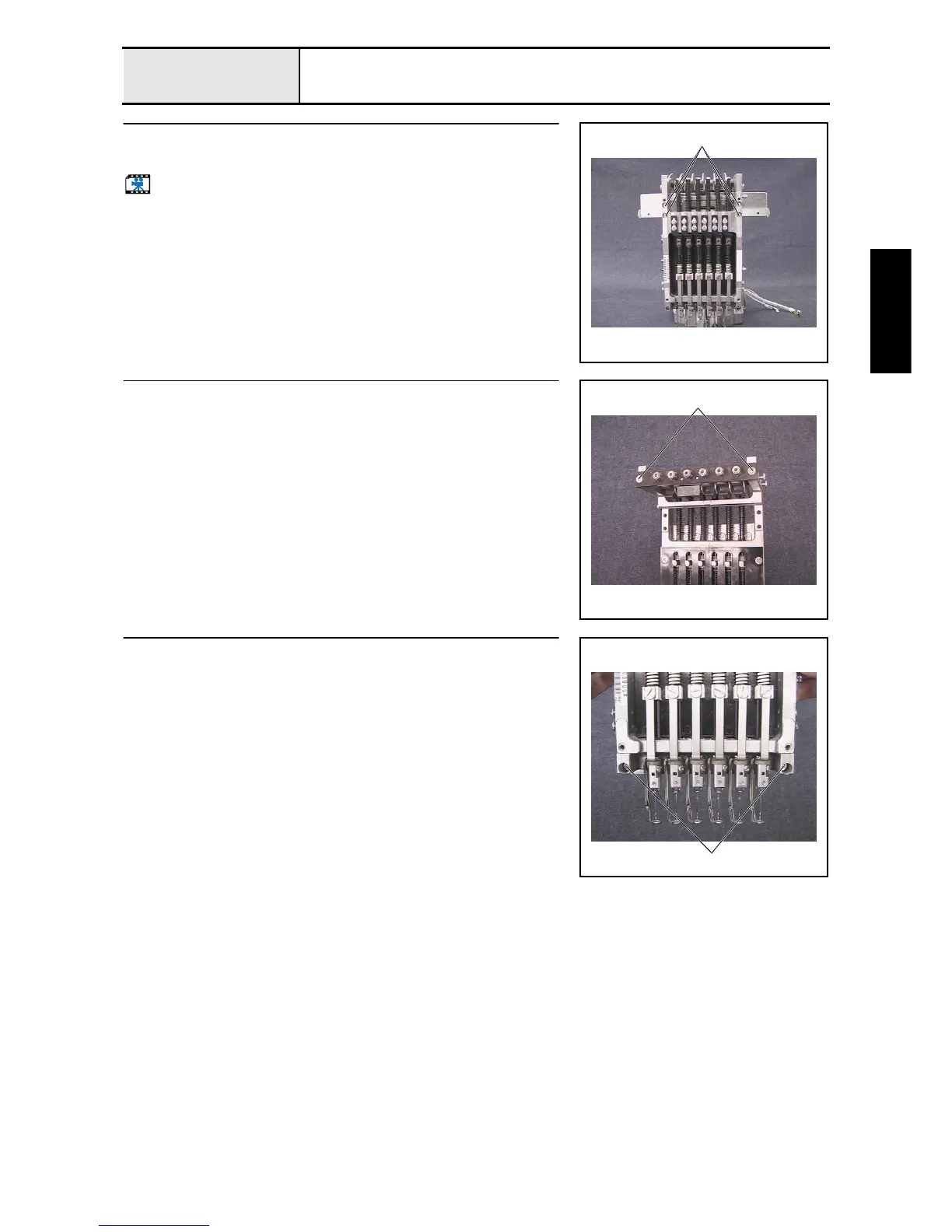

Needle bar case final assembly removal
1. Remove the 4 screws 1, and then remove the needle bar case assembly.
Start movie clip (CD-ROM version only)
1
2
Change roller base assembly removal
1. Remove the 2 screws 1, and then remove the change roller base assembly.
1
3
Case guide D removal
1. Remove the 2 screws 1, and then remove the case guide D.
1
