Brother PR600 - X-Belt Tension Adjustment

4 - 29
Inspection and
Adjustment

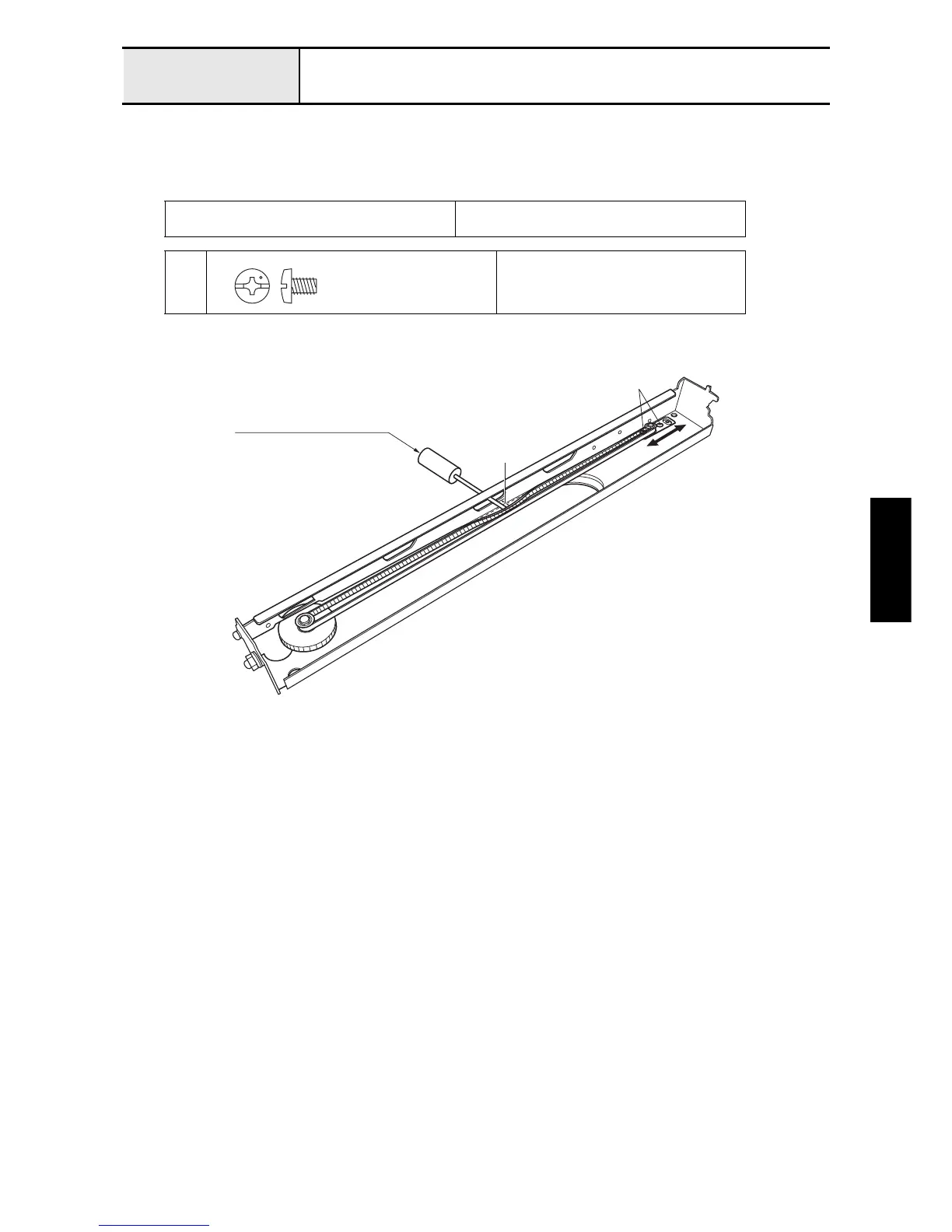

Adjustment X-belt tension adjustment
1. Loosen the 2 screws
1
.
2. Move the tension pulley plate assembly right and left to adjust the X-belt tension.
3. Tighten the 2 screws
1
.
Load when the center of the X-belt is deflected
6.1 mm
1.3 - 1.5 N (1.32 - 1.53g)
1
Torque
1.18 - 1.57 N-m
Screw, Bind
M4X6
Color; Silver
5.7mm
1.3 - 1.5N (1.32 - 1.53g)
1
