Brother PR600 - FD Assembly Removal; FD Disassembly (Step 1)

2 - 74
Operation panel
Main unit
1

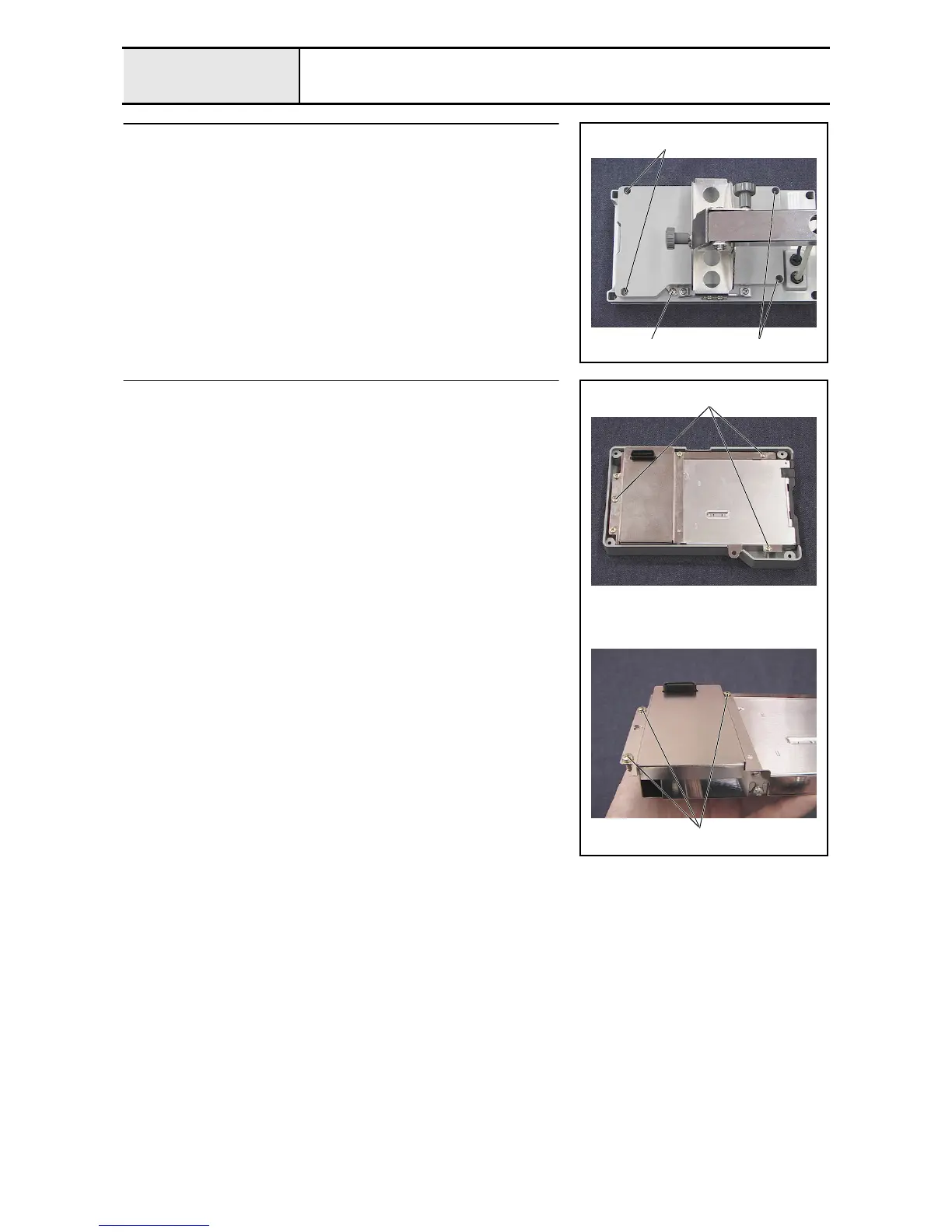

FD assembly removal
1. Remove the 4 screws 1 and the screw 2, and then remove the FD
assembly from the operation panel assembly.
1
2
1
2
FD disassembly (Step 1)
1. Remove the 3 screws 1, and then remove the FD case assembly from the
FD cover.
2. Remove the 3 screws 2, and then remove the FD case B.
1
2
