Brother PR600 - Power PCB Assembly Removal; Power PCB Disassembly

2 - 58
Power unit
Main unit
3

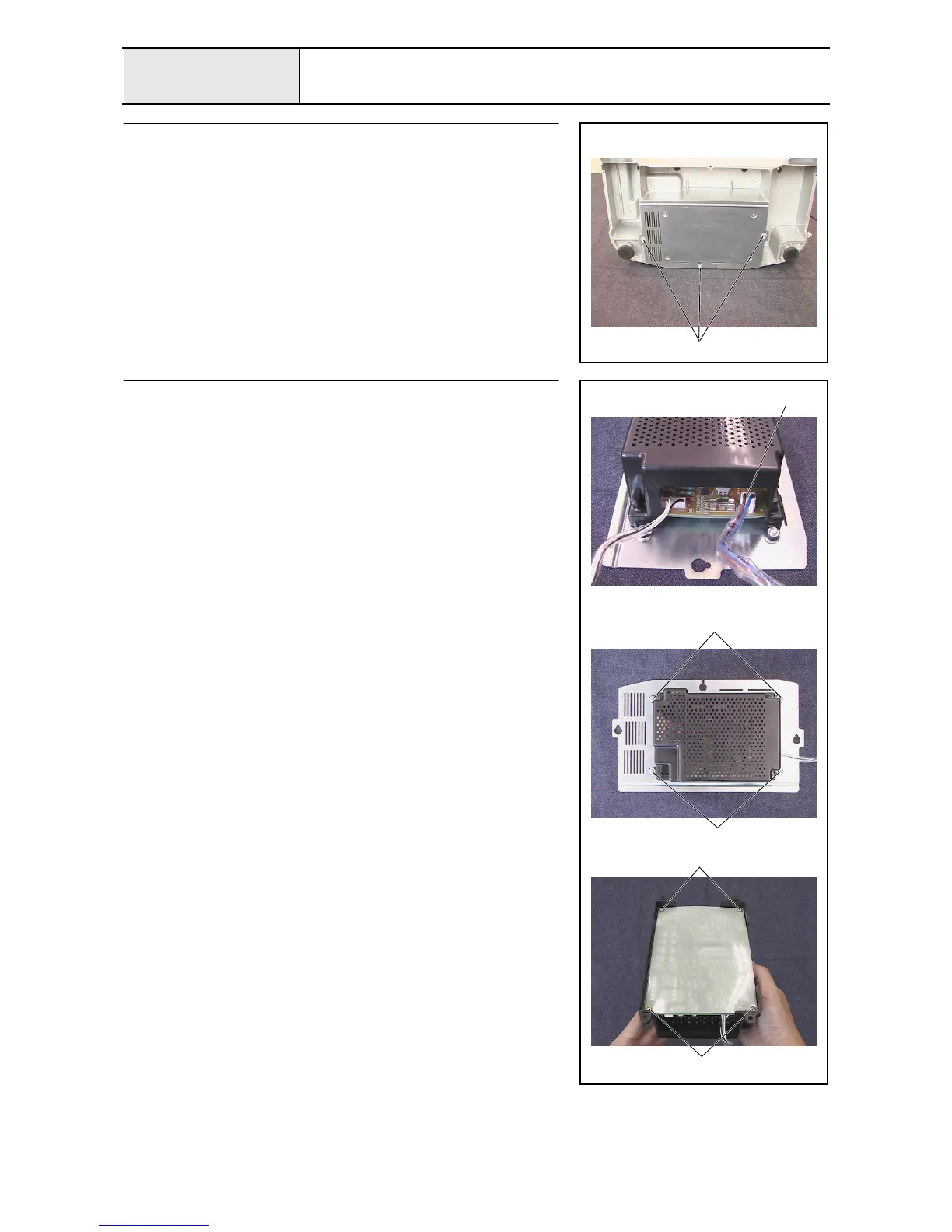

Power PCB assembly removal
1. Remove the 3 screws 1, and then remove the PCB holder final assembly.
1
4
Power PCB disassembly
1. Disconnect the power lead wire assembly 1 from the power PCB
assembly 100 (or 200).
2. Remove the 4 screws 1, and then remove the power unit cover assembly
from the power unit stay.
3. Remove the 4 screws 2, and then remove the insulation sheet and the
power PCB assembly from the power unit cover assembly.
1
1
1
2
2
