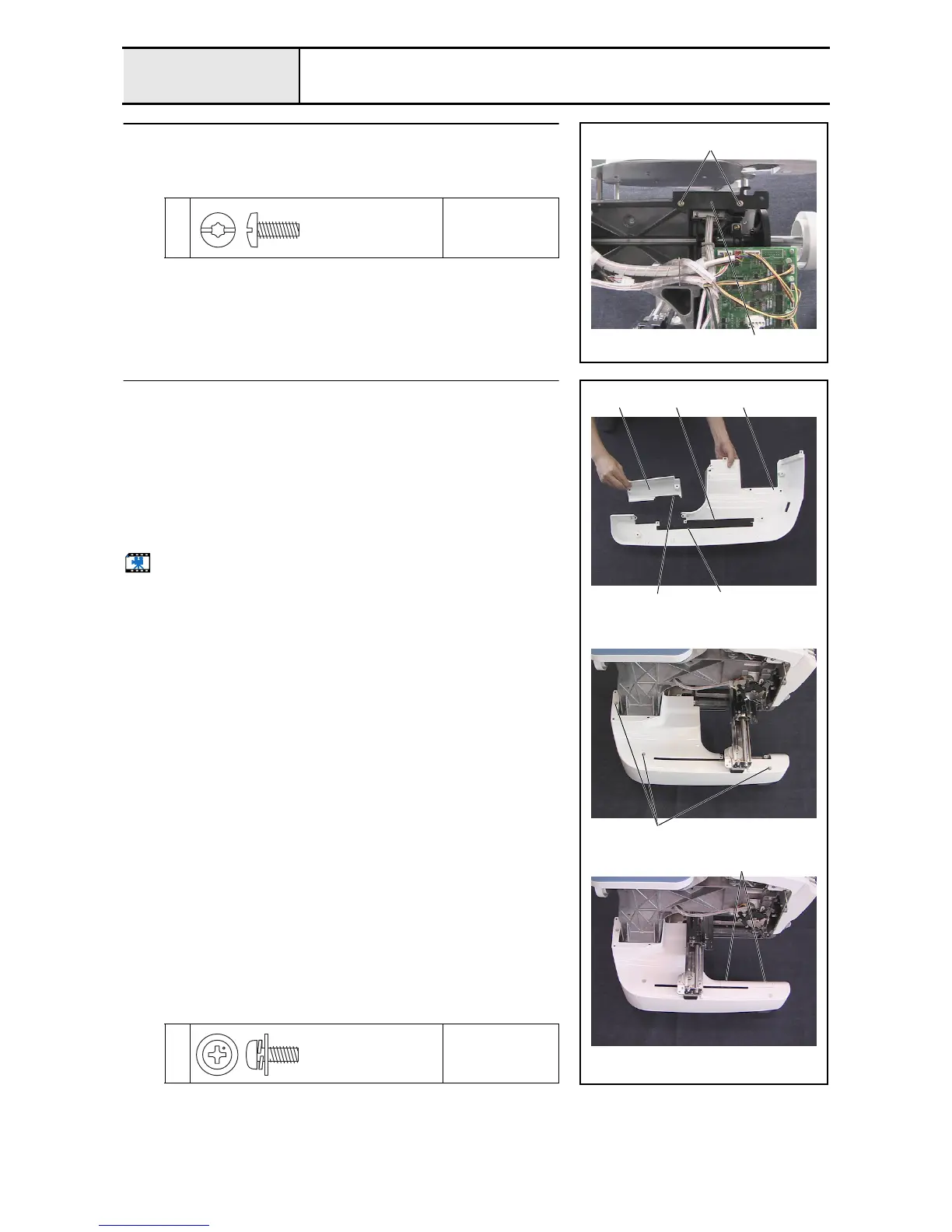

Brother PR600 - Oil Box Holder Attachment; Base Cover L Attachment

3 - 102
Main unit
Main unit
13
Oil box holder attachment
1. Attach the oil box holder 1 to the arm bed with the 2 screws 1.
1
Torque
1.47 – 1.96 N-m
1
1
Taptite, Bind S
M4X10
Color; Gold
14
Base cover L attachment
1. Attach the groove cover A 2 and the groove cover B 3 to the rear of the
base cover L 1.
2. Attach the groove cover C 5 to the rear of the base cover L lid 4.
3. Attach the base cover L with the 3 screws 1.
*Key point
• Fully draw the X-guide toward you before attachment.
4. Attach the base cover L lid to the base cover L with the 2 screws 2.
5. Attach the 2 screw covers.
Start movie clip (CD-ROM version only)
1
2
Torque
0.78 – 1.18 N-m
2
1
4
2
3 1
5
Screw, Pan (S/P washer)
M4X10DB
Color; Silver
