Brother PR600 Service Manual

3 - 65

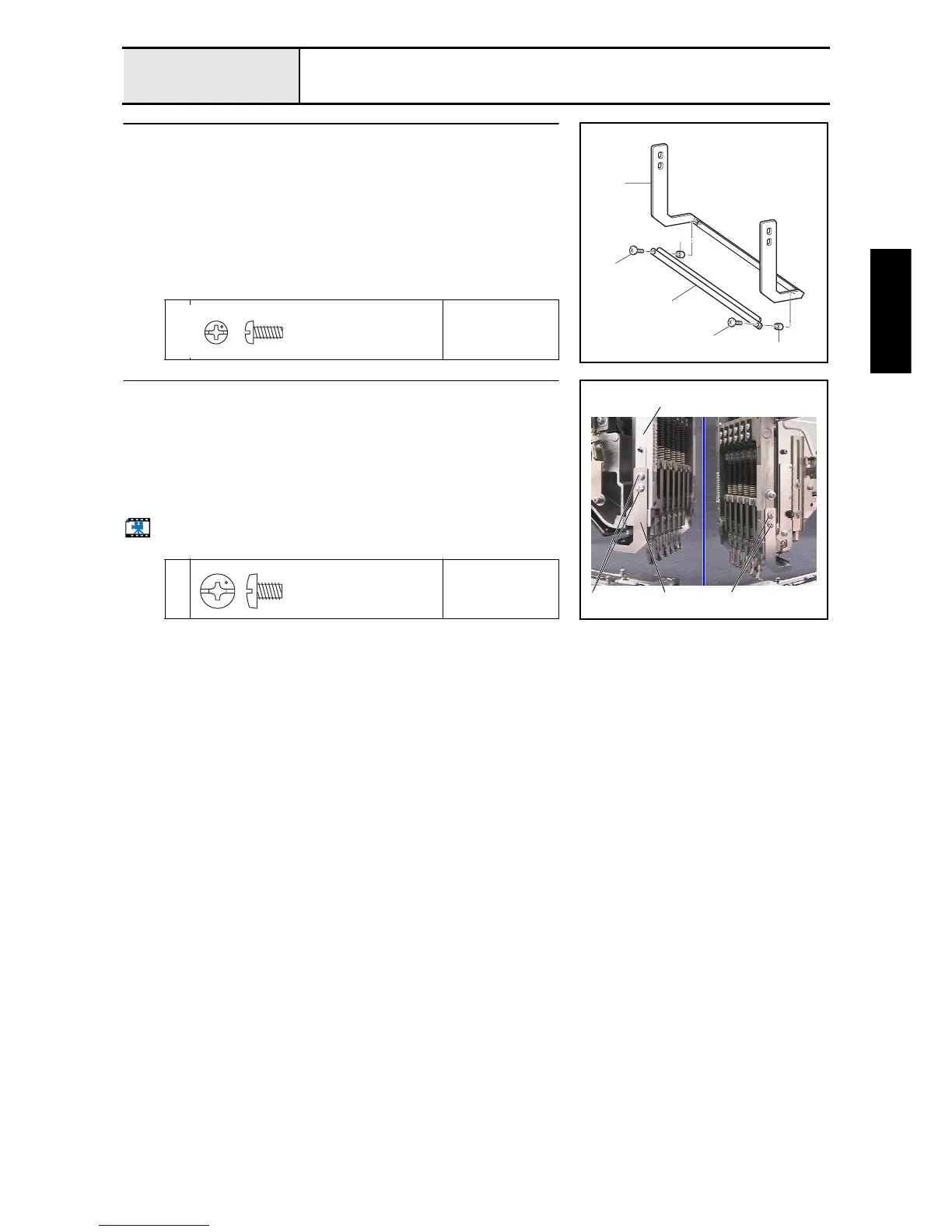

Thread wiper unit
Main unit
Assembly
4
Thread presser base assembly
1. Attach the 2 thread presser spacers 2 and the thread presser cover
assembly 3 to the thread presser base assembly 1 with the 2 screws 1.
1
Torque
0.78 – 1.18 N-m
1
3
1
1
2
2
Screw, Pan
M3X7
Color; Silver
5
Thread presser base attachment
1. Attach the thread presser base assembly 1 to the needle bar case 2 with
the 4 screws 1.
*Key point
• Temporarily tighten the screws 1 first. Firmly tighten them
after completing 4 - 32 "Thread presser base up/down position
adjustment."
Start movie clip (CD-ROM version only)
1
Torque
Hand start
2
1 11
Screw, Bind
M4X6
Color; Silver
