Brother PR600 - Spool Stand Frame Final Assembly Attachment

3 - 100
Main unit
Main unit
11

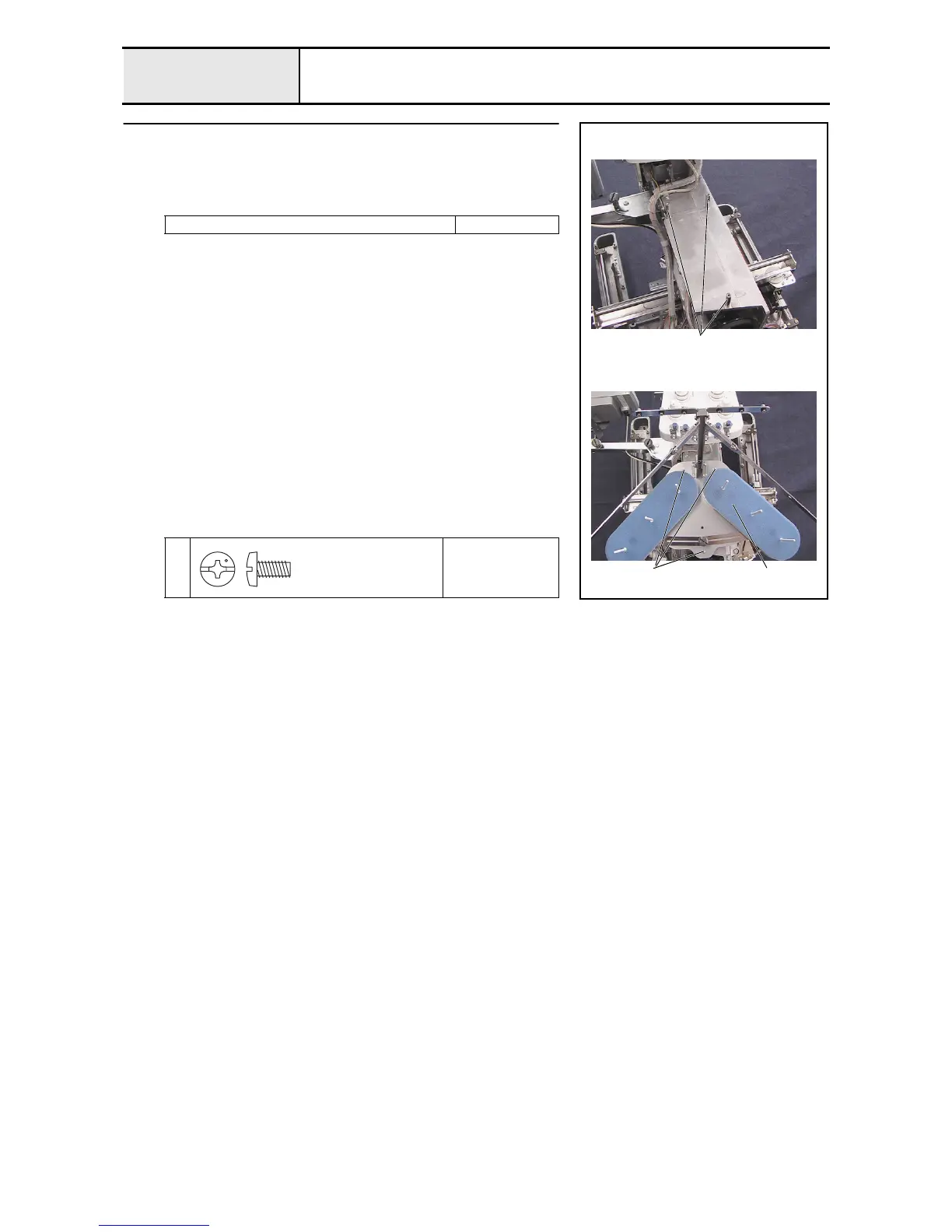

Spool stand frame final assembly attachment
1. Attach the 3 studs 1 to the top face of the arm bed.
2. Attach the spool stand frame final assembly 2 to the 3 studs with the 3
screws 1.
Tightening torque of stud: 1.18 - 1.57
1
Torque
1.18 – 1.57 N-m
1 2
1
Screw, Bind
M4X8
Color; Silver
