5 - 4

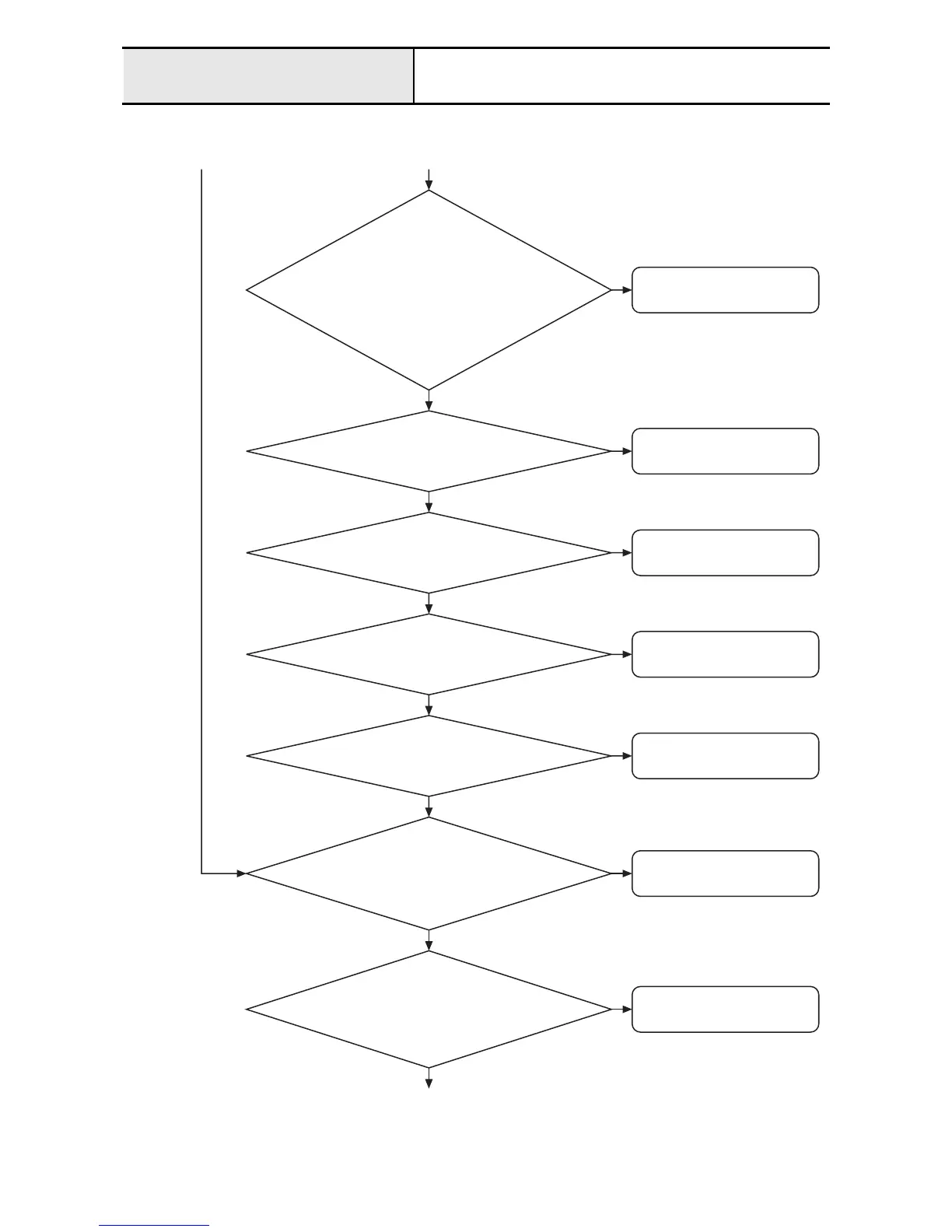

Failure Investigation for Electronic Parts
The power is not turned on.
Change power switch
assemblies and power leads.
When the power cord is removed from the inlet and
the power lead is removed from the power PCB, is
the resistance between the inlet and the power lead
connector 1Ω or below when the switch is ON and
when it is OFF (check both terminals)?
N
Y
From the previous page
Change power PCB.
Y
Does the machine function normally when the
power PCB is replaced with a reliable one?
N
Change main PCB.
Y
Does the machine function normally when
the main PCB is replaced with a reliable one?
N
Change panel PCB.
Y
Does the machine function normally when the
panel PCB is replaced with a reliable one?
N
Change inverter PCB.
Y
Does the machine function normally when the
inverter PCB is replaced with a reliable one?
N
To the next page
From the previous page
Change leads A and B on the panel.
N
Connect it properly.
N
Is lead A on the panel properly
connected to connector CN9 on the
panel PCB?
Y
Is the resistance between each pin at both ends
1Ω or below when leads A and B on the panel are
removed from the main PCB and the panel PCB?
Y
To Next Page
