INTRODUCTION

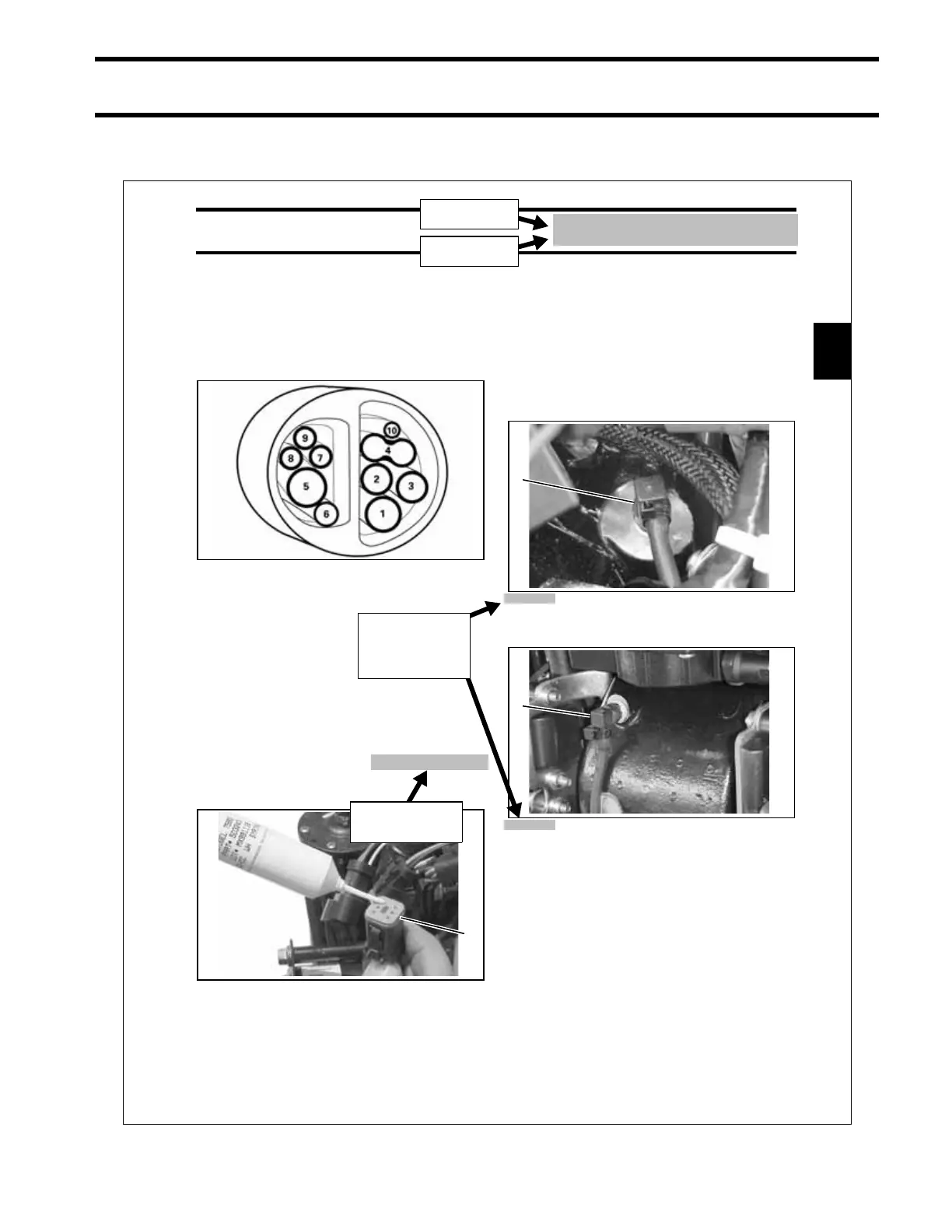

TYPICAL PAGE – B
9
TYPICAL PAGE – B
47
INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING PROCEDURE
2
Cable, Hose, and Wire Routing
Route all hoses, control cables, and wiring
through a protective sleeve or conduit into the
boat and through the grommet.
Refer to the following diagram to ensure proper
positioning of rigging components in grommet.
Connect outboard main wire harness to boat main
wire harness.
Before installing electrical connectors, check that
the seal is in place. Clean off any dirt from con-
nectors. Apply a light coat of
Electrical Greaseâ„¢
to the seal. Push connectors together until
latched.
If a water pressure gauge is to be used, install the
water pressure hose fitting in the cylinder block.
Use
Pipe Sealant with Teflon
(P/N 910048) on the
threads of the hose fitting. Refer to installation
instructions supplied with gauge.
Route the water pressure hose through cover
grommet with oil tank sending unit harness. Route
hose along battery cables toward the back of the
powerhead. Use tie straps to fasten in place.
If temperature gauge is to be used, route sending
unit wire through grommet with hose for water
pressure gauge. Follow the path of battery cables.
Provide adequate length to reach cylinder head.
Refer to installation instructions supplied with
gauge.
1. Fuel supply hose
2. Oil return hose
3. Oil supply hose
4. Battery cables
5. Main wire harness (MWS)
6. Throttle cable
7. Shift cable
8. Oil tank sending unit harness
9. Water pressure hose
10. Accessory charge wire
000084
1. Seal
DP0824
1
V4 Models
1. Water pressure fitting location: top, starboard side
of cylinder/crankcase assembly, below throttle
position sensor.
DP0827
V6 Models
1. Water pressure fitting location: rear of cylin-
der/crankcase assembly
DP0828
1
1
Section TitleSection Title
Section TitleSubsection Title
Model specific
illustrations
designated with
image captions
Products and
lubricants italicized
Products and
lubricants italicized
