BRP Evinrude E-TEC Series User Manual

262
POWERHEAD
INSTALLATION
Installation
Place mount assemblies in position, with flats fac-
ing away from each other.
Apply Moly Lube to all sides of retainer and install
between mounts.
Install the retainer screw and torque to 15 to 20 ft.
lbs. (20 to 27 N·m).
INSTALLATION
Apply Permatex No. 2 to both sides of a new base
gasket around the exhaust ports only. Install gas-
ket on adapter. To ensure proper sealing, mating
surfaces must be clean.
IMPORTANT: V4 and V6 base gaskets are
NOT interchangeable. Be sure to use the correct
part.
Coat the driveshaft splines with Moly Lube. Do not
apply lubricant to end of driveshaft.
Use Lifting Tool, P/N 342672, and hoist to slowly
lower powerhead onto exhaust housing. If neces-
sary, rotate flywheel in a clockwise direction to
align crankshaft and driveshaft splines.

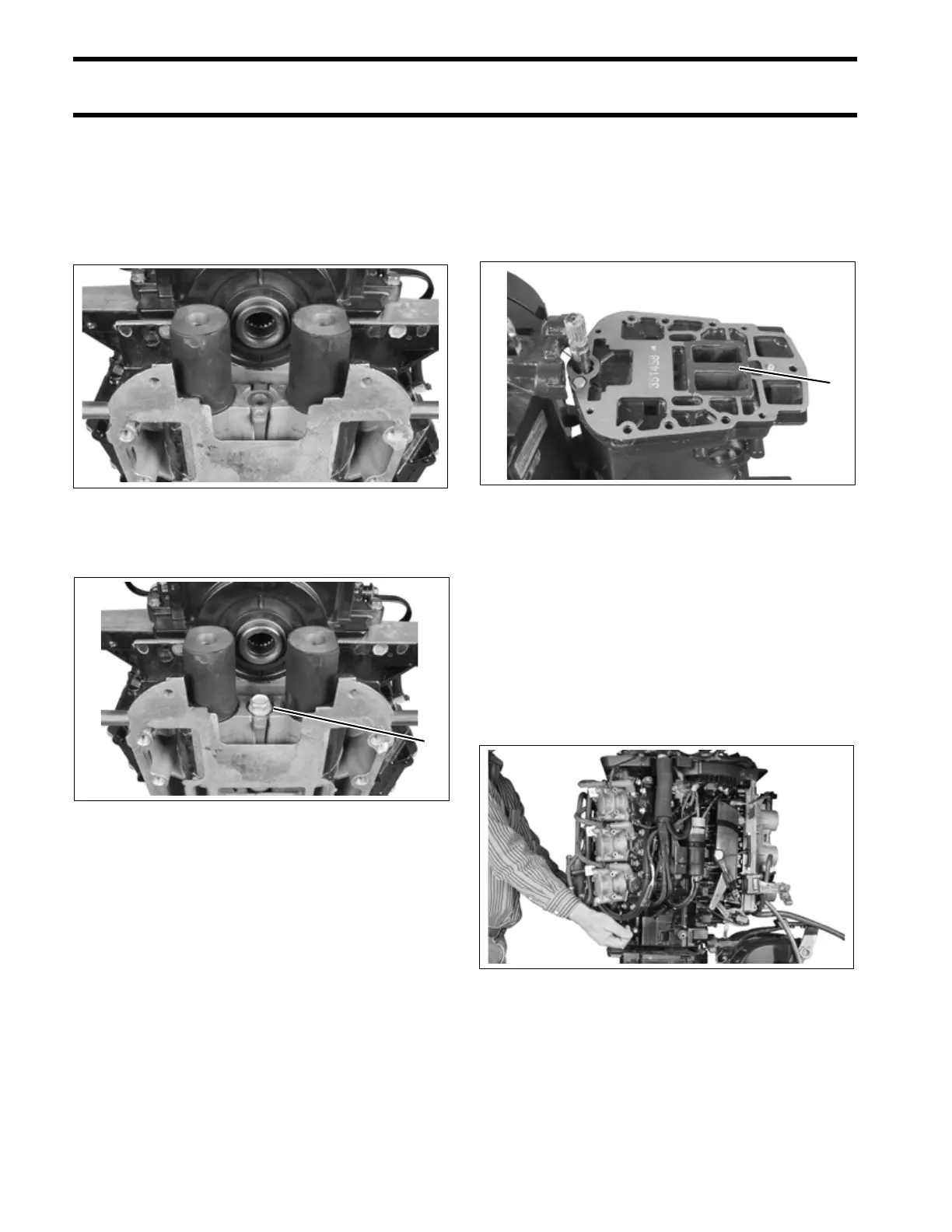

005310
1. Mount retainer screw 005309
1
1. Permatex No. 2 005258
005276
1
