345
GEARCASE
COUNTER ROTATION
12

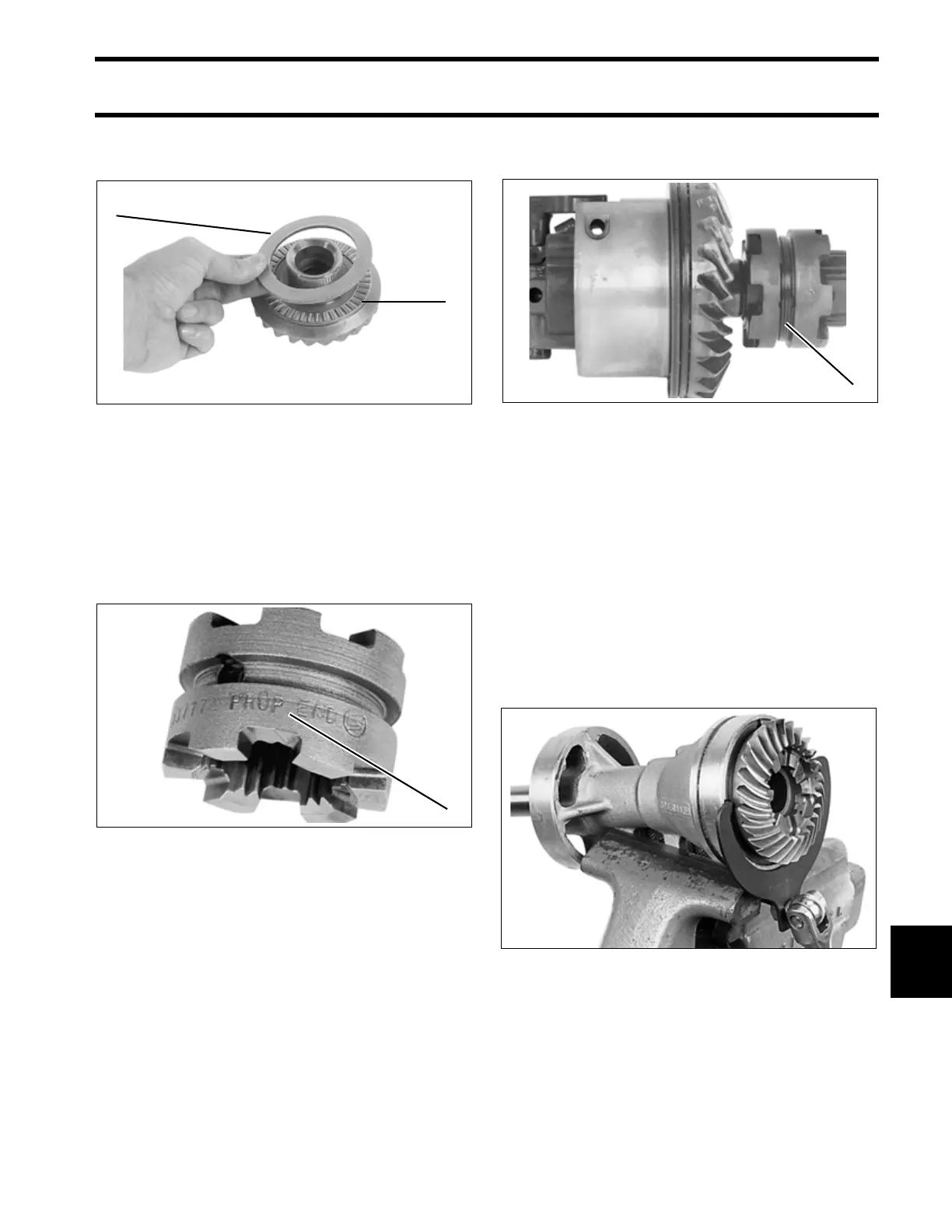

IMPORTANT: Bearing and washer must be
installed in the correct order.
Align holes in the clutch dog with slot in the pro-
peller shaft. Install the clutch dog on the shaft with
“PROP END” facing rear of the shaft.
IMPORTANT: The clutch dog is not symmetri-
cal. If installed backwards, it will not fully engage
and will immediately damage itself and the gears.
Slide the propeller shaft onto the shift shaft, align
the hole in the shaft with the hole in the clutch
dog, install the pin and then, a new clutch dog
retaining spring. Position three coils over each
end of the pin, MAKING SURE NONE OF THE
COILS OVERLAP OR ARE LOOSE.
Propeller Shaft Bearing
Housing and Forward Gear
Disassembly
Remove and discard the bearing housing O-ring.
Remove the anode and discard if more than two-
thirds deteriorated.
Clamp the bearing housing by the anode bosses
in a vise, as shown. Remove the forward gear
assembly by unscrewing it with Spanner Wrench,
P/N 432400.
1. Thrust bearing
2. Thrust washer
DSC02297
1. “PROP END” COB7581
1
2
1
1. Retaining spring COB3101
13491
1
