FUEL SYSTEM
DIRECT INJECTION ELECTRICAL CIRCUITS
7

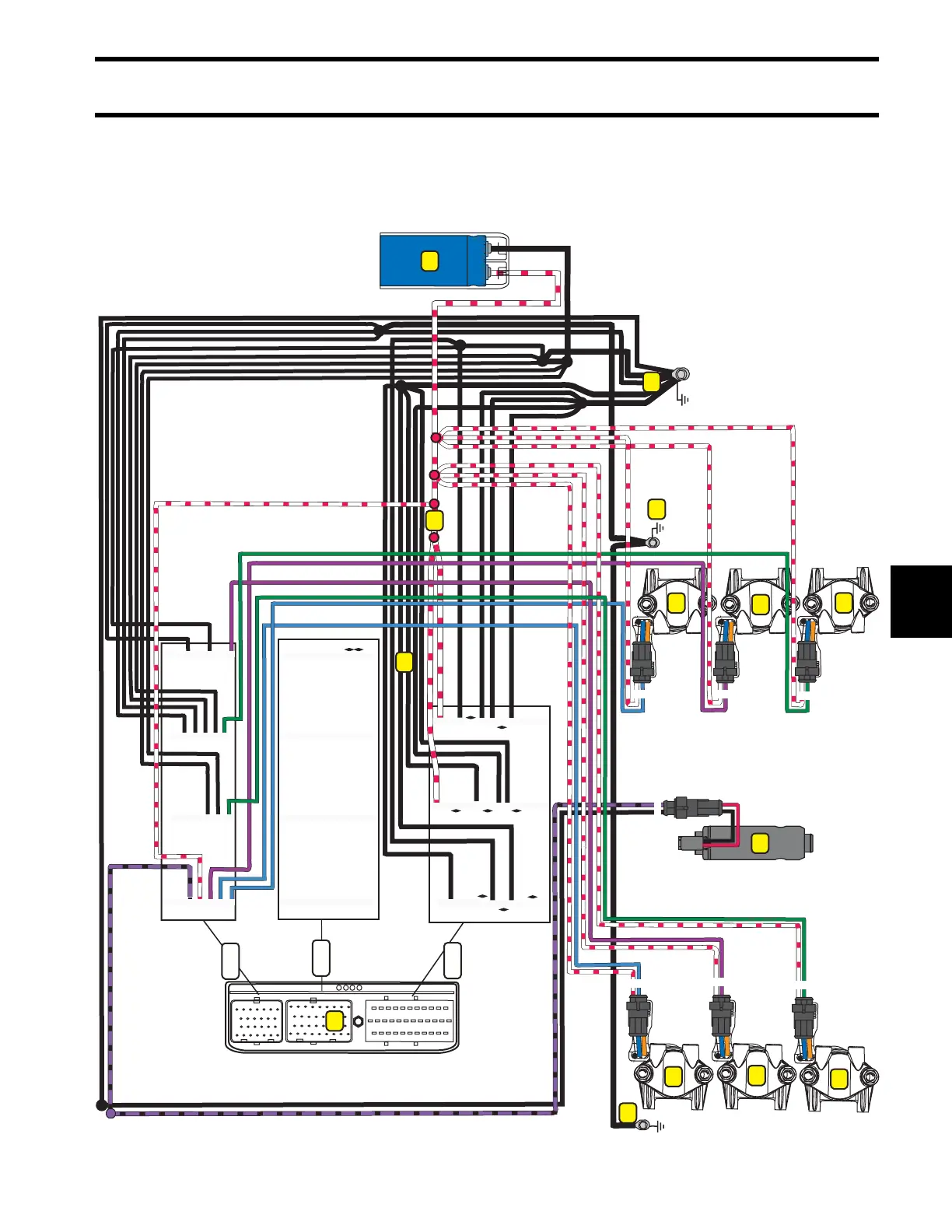

Injector / Circulation Pump Circuits Diagram
18 19 20 21 22 23 24 25
10 11 12 13 14 15 16 17
20 21 22 23 24 25 26 27 28 29
11 12 13 14 15 16 17 18 19
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9
9
20 21 22 23 24 25 26
26 27 28 29 30 31 32 33 34
2
4
1
3
J2
J1-B
J1-A
1 2 3 4 5 6 7
8 9 10 11 12 13
14 15 16 17 18 19
5
6
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
2 1
1. Injector No. 1
2. Injector No. 2
3. Injector No. 3
4. Injector No. 4
5. Injector No. 5
6. Injector No. 6
7. EMM
8. 55 Volt circuit, WHITE/RED
9. Capacitor
1
2
3
4
5
6
7
8
10
11
12
10
10
10. Grounds (NEG)
11.
Fuel injector grounds
12.
Fuel pump,
high pressure (12 V)
