74
INSTALLATION AND PREDELIVERY
PROPELLERS

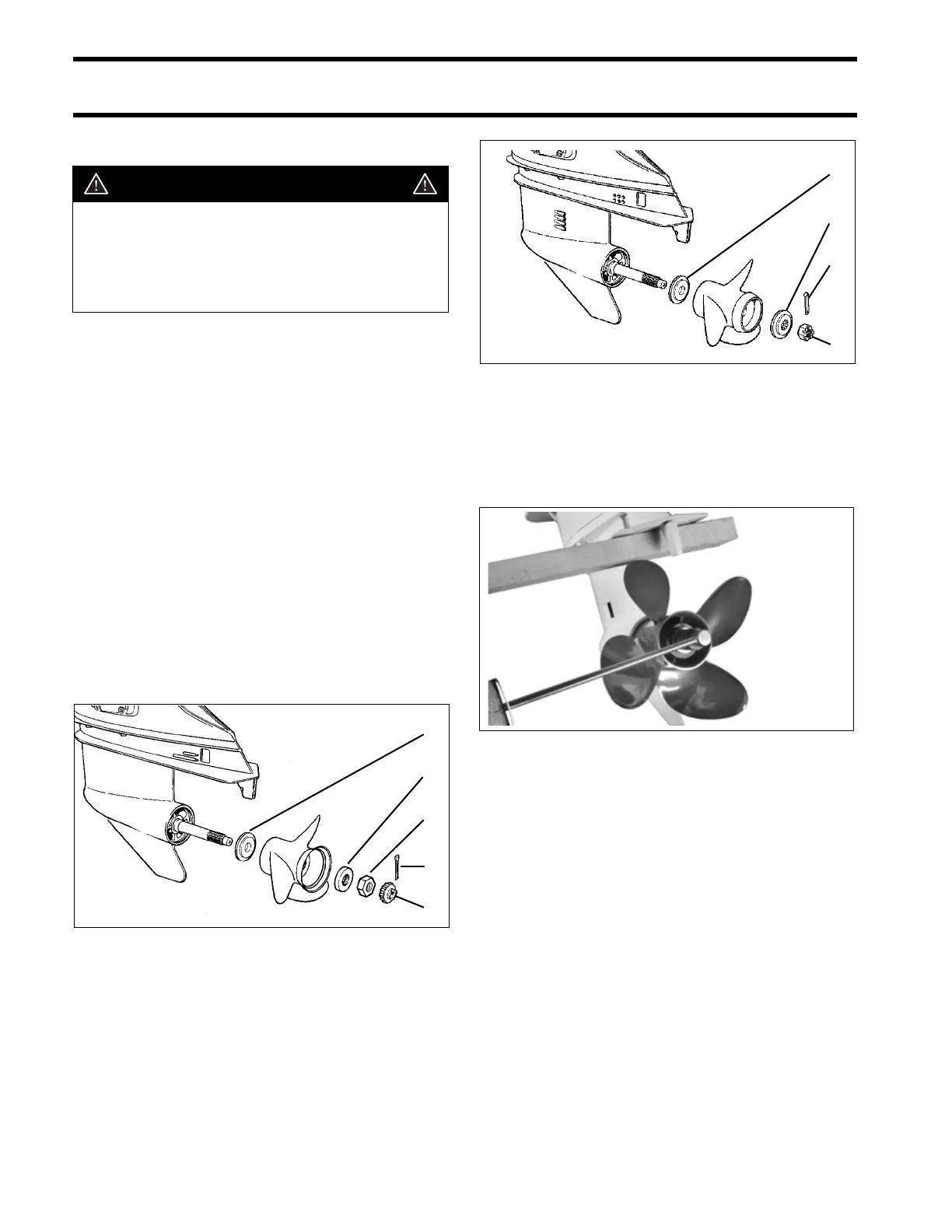

Propeller Hardware Installation
Apply Triple-Guard grease to the entire propeller
shaft before installing the propeller.
Install thrust bushing onto propeller shaft with
shoulder of thrust bushing facing aft. Taper of
bushing must match taper of propshaft.
Install propeller on propeller shaft by aligning
splines and pushing until seated on the thrust
bushing.
IMPORTANT: Depending on propeller style, dif-
ferent thrust bushings, spacers, and cotter pin
keepers are used. See the Evinrude/Johnson
Genuine Parts book for a complete listing and
descriptions.
Install the spacer, engaging the propeller shaft
splines.
Wedge a block of wood between propeller blade
and the anti-ventilation plate.
Install the propeller nut and torque to:
• With Keeper – 70 to 80 ft. lbs. (95 to 109 N·m)
• Without Keeper – 120 to 144 in. lbs. (13.6 to
16.3 N·m)
If cotter pin holes in the propeller nut (Without
Keeper) and propeller shaft are not aligned,
tighten the nut until they are in line. Do not loosen.
Insert a new cotter pin through the propeller nut
and shaft, or propeller nut keeper and shaft. Bend
its ends over the nut to secure the assembly.
IMPORTANT: After fastening propeller nut,
make sure outboard is in NEUTRAL and carefully
spin propeller. Propeller must turn freely and
should not spin off center. If propeller appears to
wobble, check for possible bent propeller shaft.
WARNING
When servicing the propeller, always shift
the outboard to NEUTRAL, turn the key
switch OFF, and twist and remove all spark
plug leads so the engine cannot be started
accidentally.
Models with cotter pin “keeper”
1. Thrust Bushing
2. Spacer
3. Propeller Nut
4. Cotter Pin
5. Keeper
DR4028
1
2
3
4
5
Models without cotter pin “keeper”
1. Thrust bushing
2. Spacer
3. Cotter pin
4. Propeller Nut
CO2917
001992
1
2
3
4
