219
OILING SYSTEM
OILING SYSTEM TESTS
8
pin 2 (blue wire) of oil injection pump connector.
Key switch must be ON.
Results:
• Approximately 30 V is acceptable, leave
adapter connected, proceed to STEP 4.
• No voltage, refer to Oil Injection Pump Circuit
Resistance Test on p. 219.
STEP 4
Activate oil injector using the Evinrude Diagnos-
tics Software program. Monitor the voltage on oil
injector pump circuit at pin 2 of oil injection pump
connector.
Oil Injection Pump Circuit
Resistance Test
The oil injection pump circuit includes the engine
wire harness, the injection pump winding and con-
nector, and the oil injection control circuit of the
EMM.
Disconnect the battery cables at the battery.
Use Electrical Test Probe Kit, P/N 342677, to
make a connection to pin 23 of the EMM J1-B
connector.
Calibrate ohmmeter to the LOW OHMS scale and
measure the resistance between pin 23 of the
EMM J1-B connector and pin 1 of oil injection
pump connector.
Results:
• An infinite reading (∞) indicates an open circuit.
Isolate the faulty wiring, connection, or injection
pump winding. Repair faulty wiring or replace
faulty component and retest.
• For a higher than expected reading, test resis-
tance of the injection pump. If injection pump
resistance reading is approximately 2-3 Ω,
injection pump winding is good. Isolate faulty
component. Repair faulty wiring or replace
faulty component and retest.

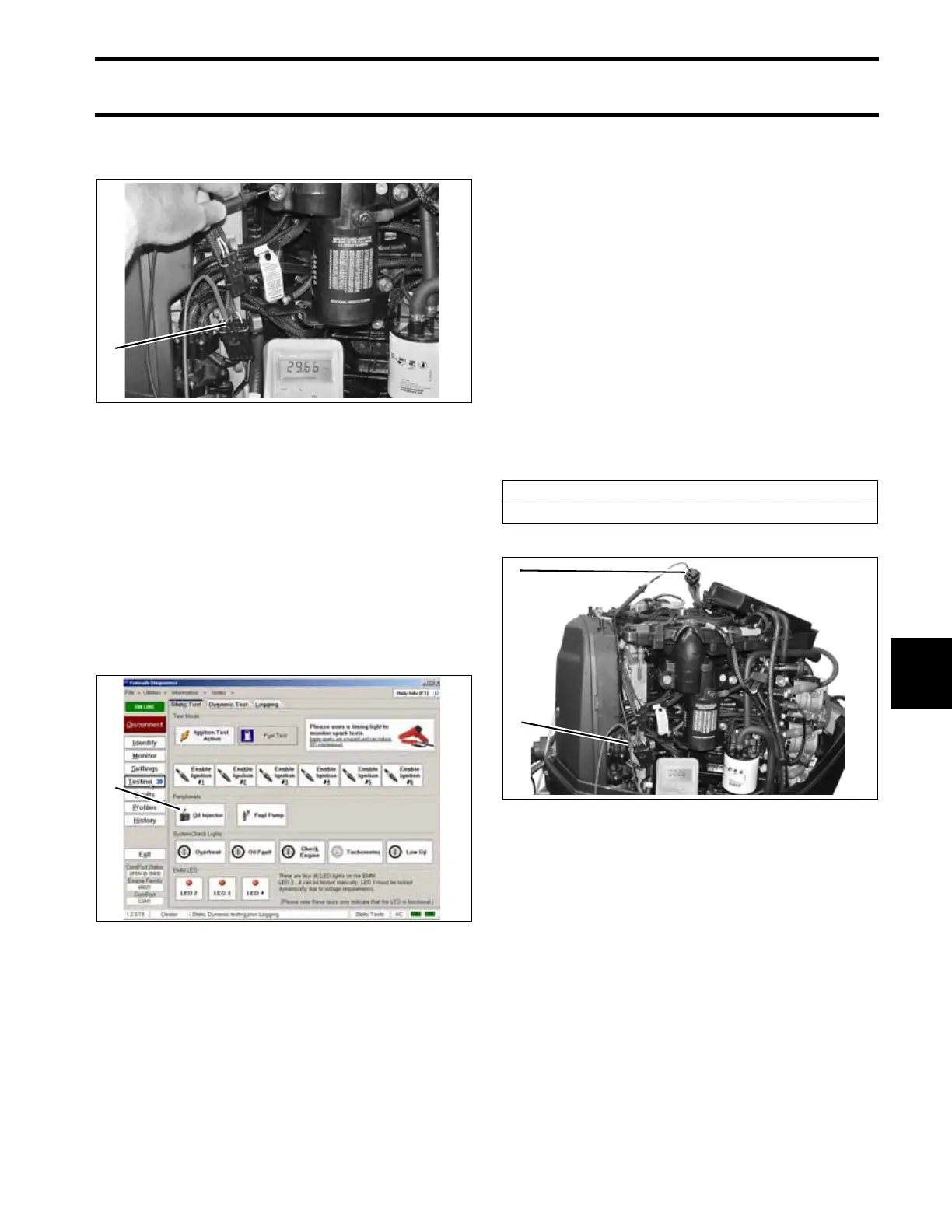

1. Oil injection pump connector (pin 2) 005442
Static Tests Screen
1. Oil injector test button
005146
1
1
Oil Injection Pump Circuit Resistance
2 to 3 Ω
1. EMM J1-B connector (pin 23)
2. Oil injection pump connector (pin 1)
005443
1
2
