386
TRIM AND TILT
SERVICING – THREE PISTON SYSTEM
P/N 912084. Torque cap to 58 to 87 ft. lbs. (79 to
118 N·m).

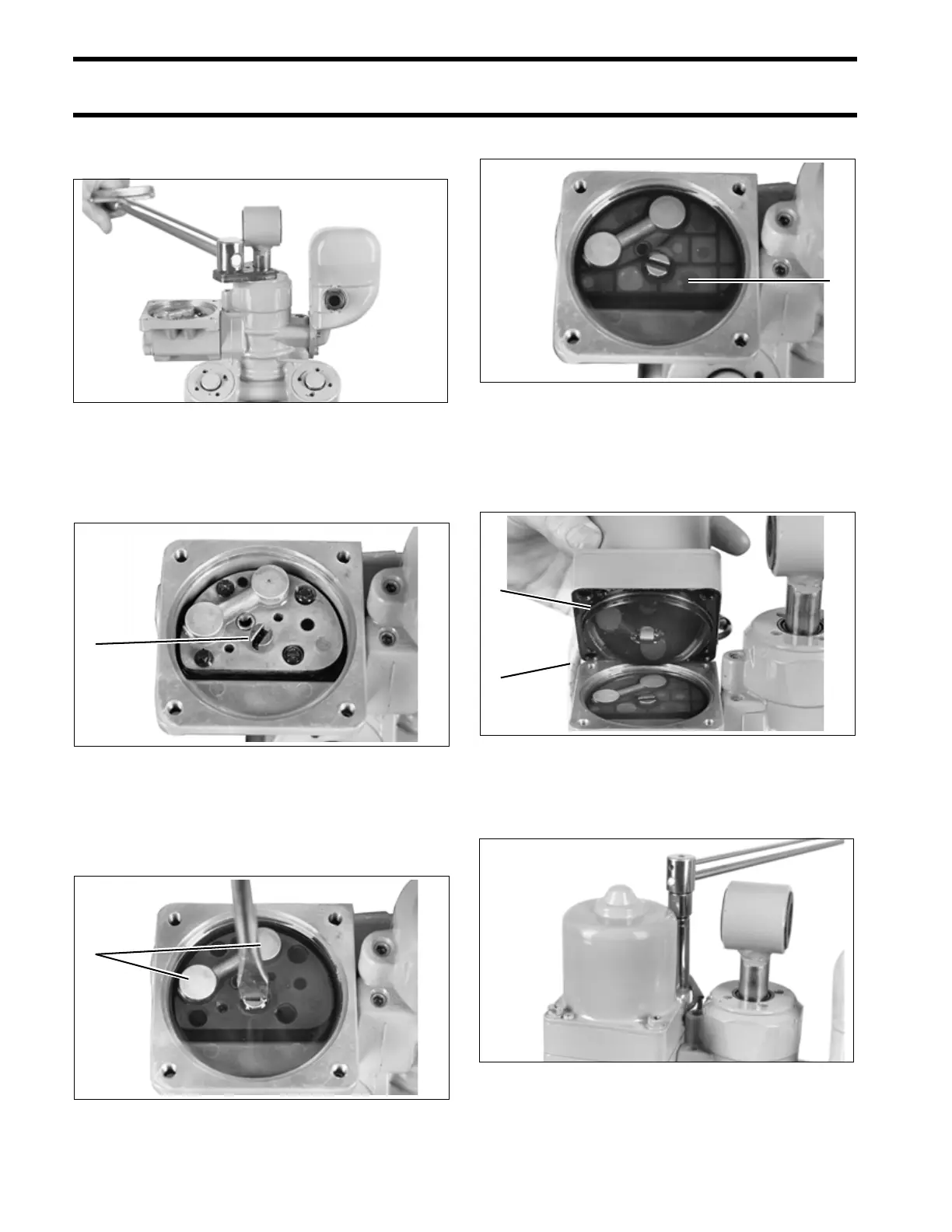

Motor Installation
Position the pump manifold so the pump mounting
surface is level. Install the coupler into the pump.
Fill the pump cavity with Power Trim/Tilt & Steer-
ing Fluid up to the top of the two bosses. Rotate
the coupler clockwise and then counterclockwise
until no more air bubbles come out of the pump.
Install the filter screen.
Lubricate and place a new O-ring on the motor.
Make sure the cable is on the transom side of the
unit; align the coupler slot with the motor shaft.
Place the motor on the pump manifold assembly.
Install the four motor screws. Torque the screws
to 35 to 52 in. lbs. (4.0 to 5.9 N·m).
41870
1. Coupler 41852
1. Bosses 41854
1
1
1. Filter screen 41856
1. O-ring
2. Cable
41857
41858
1
1
2
