46
INSTALLATION AND PREDELIVERY
BOAT RIGGING
Cable and Hose Installation
Before installation, identify all required wiring,
cables, and hoses:
• Throttle and shift cables
• Modular Wiring System (MWS) harness
• Battery cables and switches
• Fuel supply hose
• Primer bulb or primer pump
• Oil supply hose
• Oil tank sender harness
Determine whether any additional wiring or hoses
will be needed for accessory gauges or batteries:
• Speedometer pick-up hose
• Mechanical water pressure gauge hose
• Accessory battery charging kit
• CANbus adapter harnesses
• CANbus water pressure sensor kit
• CANbus oil level sensor kit
Cable and Wire Harness Routing
Remote control cables, wiring, and hoses must
follow a similar path into the lower motor covers.
Select the best routing possible for the specific
application. Proper remote control cable lengths
are essential. Installations must provide adequate
slack for all cables, wiring, and hoses. Check
clearances of routings at all trim angles, at all
steering positions, and at all possible combina-
tions of outboard positioning.

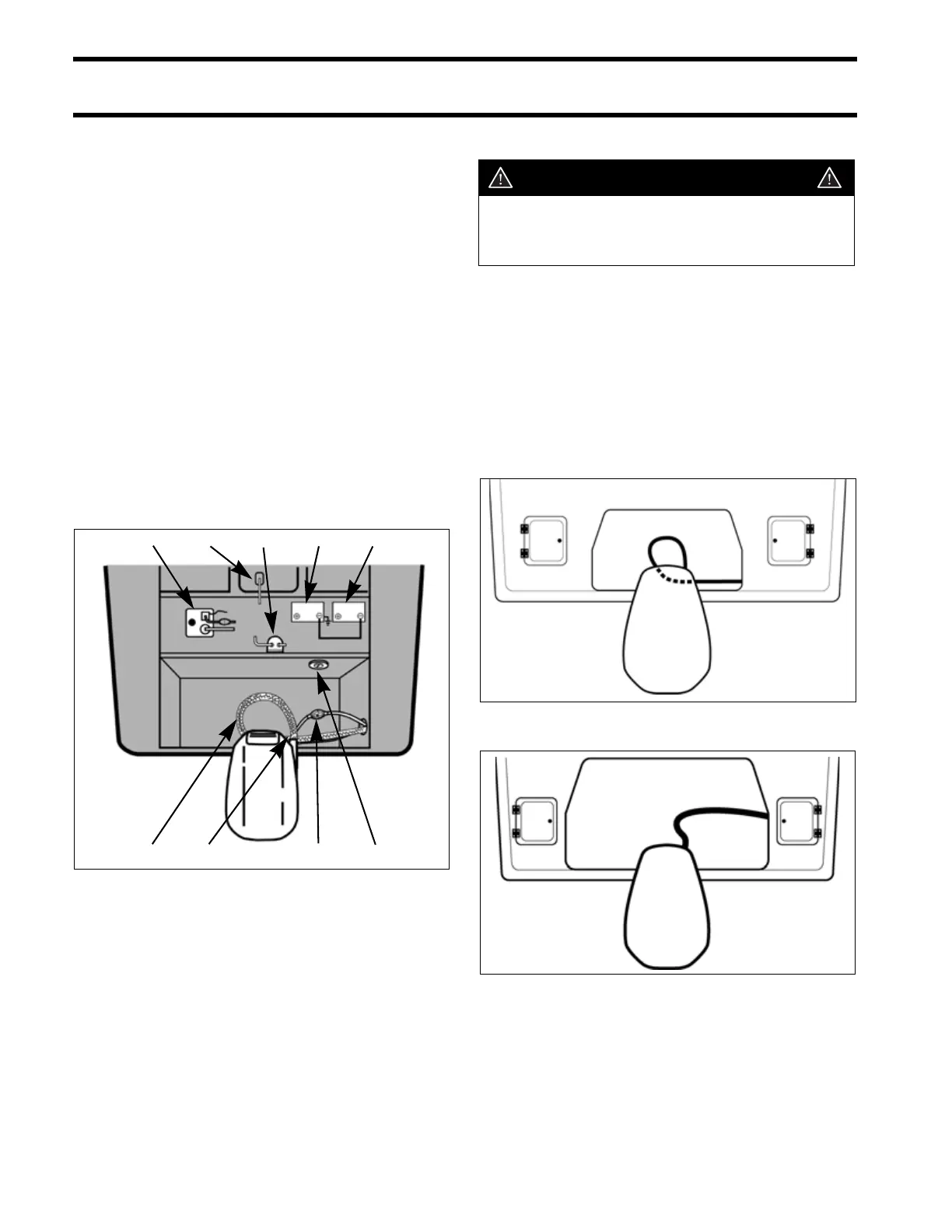

Typical outboard installation
1. Oil tank
2. Anti-siphon valve
3. Water separating fuel filter
4. Starting battery
5. Accessory battery
6. Flexweave protective sleeve
7. Access cover
8. Primer bulb
9. Battery switch
DRC6487
12345
6 7 8 9
WARNING
Improper installation and routing of out-
board controls could wear, bind, and dam-
age components, causing loss of control.
Typical Small Splash Well DRC7799
Typical Large Splash Well DRC7797
