OILING SYSTEM
COMPONENTS
8
COMPONENTS
The oiling system consists of the following compo-
nents:
• Oil tank
• Oil injection pump and manifold assembly
• Oil pressure sensor
• Electrical circuit
• LOW OIL (SystemCheck) and NO OIL warning
signals (EMM LED’s, SystemCheck and I-Com-
mand)
• Cylinder and crankcase
• Rear oil manifold assembly
• Oil recirculation system
Oil Tank
The oil tank must be properly positioned and the
oil supply must be properly monitored. Refer to
installation instructions provided with oil tank and
Oiling System Set-Up on p. 43 for additional
information.
Oil Tank Components
• Tank, 1.8 or 3.0 gallon capacity
• Oil pickup assembly (included with tank)
• Fill cap (included with tank)
• Mounting bracket and hardware
• Protective cover (1.8 gallon tank only)
• Hose clamp
• Hose plug
Oil Pick-up Components
• Pickup hose
• Sending unit, LOW OIL warning, and oil pickup
• Filter
• Primer bulb and supply hose
Oil Injection Pump
The oil injection pump is an electric (55 V) actua-
tor style pump. It draws oil from the oil tank
through the oil supply hose [25 ft. (7.6 m) maxi-
mum] and supplies pressurized oil to the oil mani-
fold. The EMM supplies 55 V and controls
activation of the pump.
The oil manifold distributes the oil supplied by the
oil injection pump. A pressure-sensor monitors the
oil injection pressure. Refer to Oil Injection Pump
Diagram on p. 203

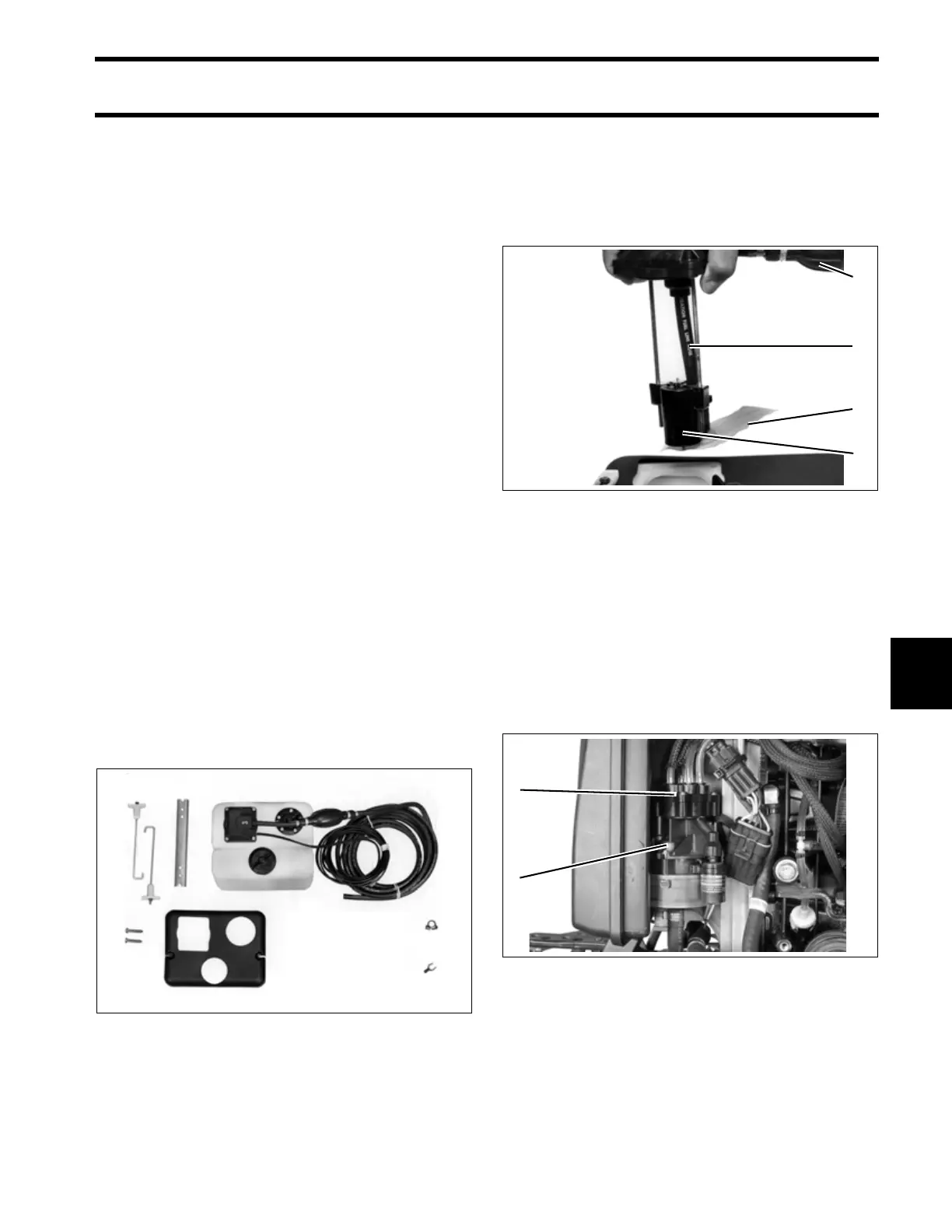

1.8 Gallon Oil Tank Kit 44839B
1. Pickup hose
2. Sending unit
3. Filter
4. Primer bulb and oil supply hose
42785
1. Oil injection pump
2. Oil manifold
005371
