342
GEARCASE
COUNTER ROTATION
shaft assembly. Remove propeller shaft assembly
from the gearcase.
Shift Housing Service
Disassembly
IMPORTANT: The shift housing and forward
gear bearing are serviced as an assembly. If
either are worn or damaged, replace the complete
assembly.

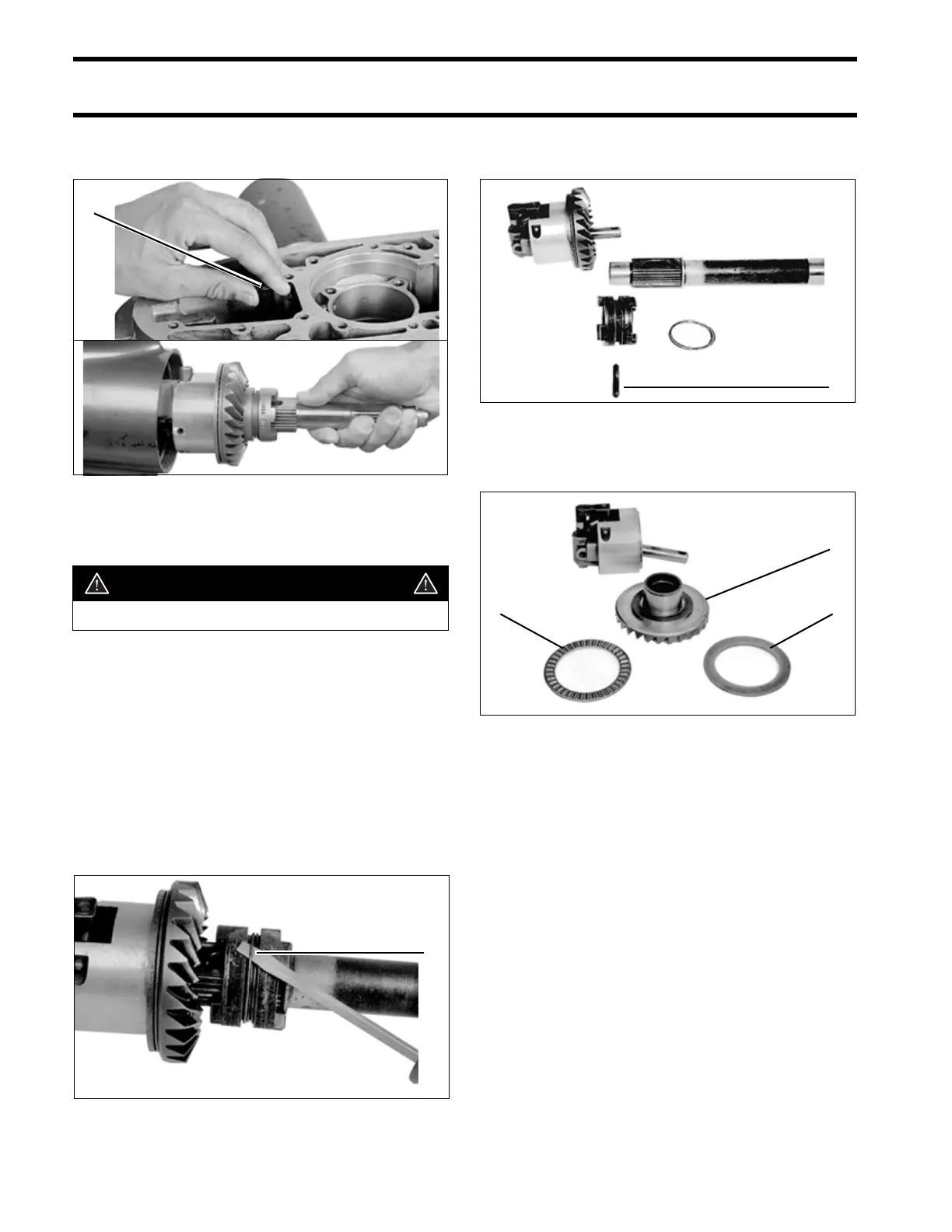

Insert a suitable tool under one end of the clutch
dog spring and remove it from its groove by
unwrapping it from around the clutch dog. Dis-
card the spring.
Push the pin out of the clutch dog. Remove all
components.
Remove the gear, thrust bearing, and thrust
washer from the shift housing.
IMPORTANT: The shift housing supports the
reverse gear on counter rotation gearcases.
Remove the shift lever pin from the housing.
Remove shift shaft, cradle and shift lever. Move
Counter Rotation Models
1. Tool
14038
13489
WARNING
Wear safety glasses to avoid injury.
1. Clutch dog spring COA3560
1
1
1. Pin COA3561
1. Gear
2. Thrust bearing
3. Thrust washer
COA3562
1
1
32
