70
INSTALLATION AND PREDELIVERY
BEFORE START-UP
BEFORE START-UP

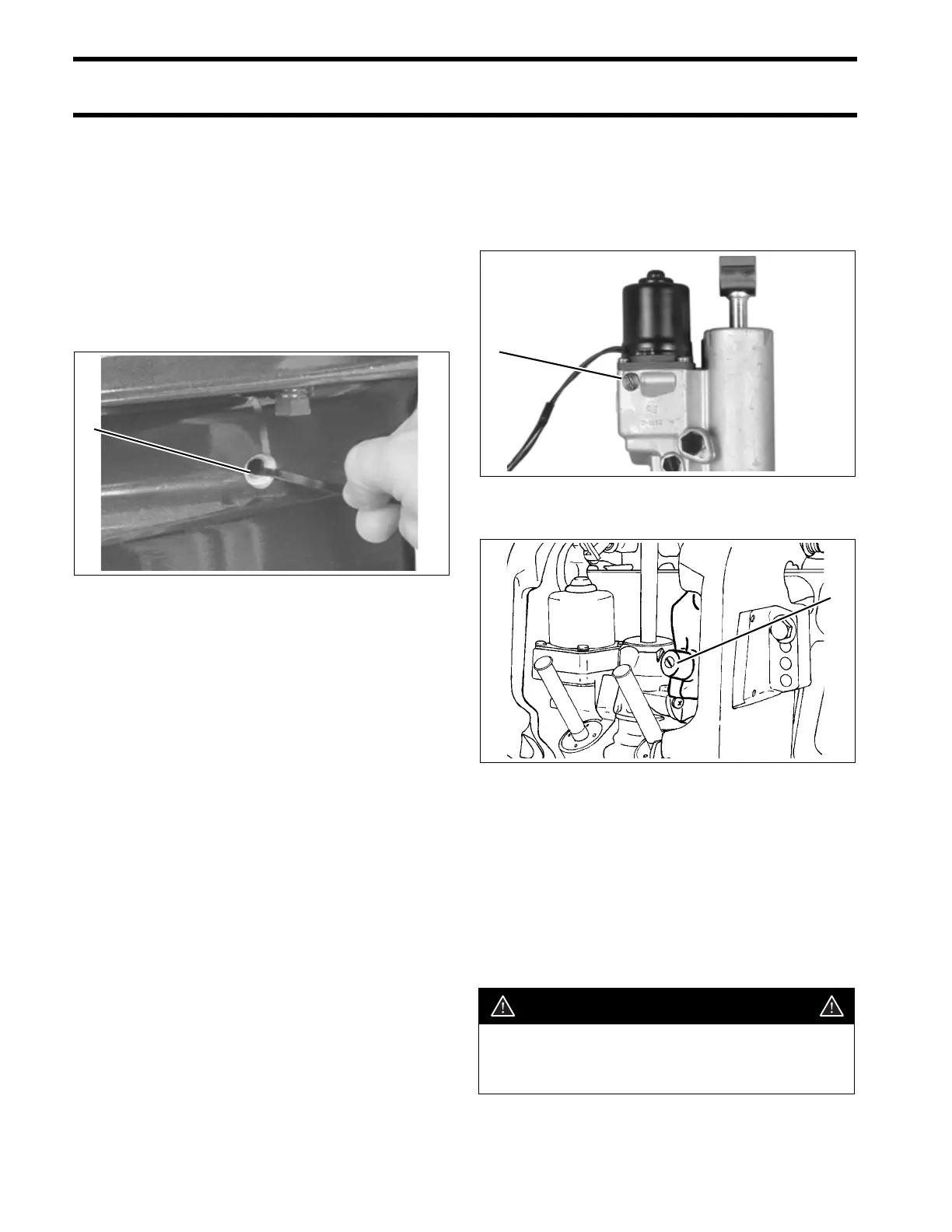

Gearcase Lubricant
With outboard in vertical position, check the gear-
case lubricant level:
• Remove the lubricant level plug. Lubricant must
be even with the bottom of the threaded hole.
• A clean tie strap can be used as a “dip stick” if
the lubricant level is not obvious.
• Add HPF XR gearcase lubricant as needed.
Oil Level
Make sure oil tank contains an adequate supply of
the correct lubricant for the outboard and that the
SystemCheck Low Oil Warning test has been
performed.
When starting the outboard for the first time, refer
to Oil Supply Priming on p. 68.
Trim and Tilt Fluid
Make sure trim and tilt reservoir is full before run-
ning outboard:
• Tilt the motor up and engage the tilt support.
• Remove filler cap and check fluid level.
• Single Piston System–Add Evinrude/Johnson
Biodegradable TNT Fluid, as needed, to bring
level to the bottom of the fill plug threads.
• Three Piston System–Add Power Trim/Tilt
Fluid or GM Dexron II, as needed, to bring level
to the bottom of the fill plug threads.
Install the fill plug and torque 45 to 55 in. lbs. (5 to
6 N·m).
1. Gearcase lubricant level 000072
1
Single Piston Trim System
1. Fill cap
004278
1. Filler cap DR22834
WARNING
Correct fluid level must be maintained to
ensure operation of the impact protection
built into the unit.
1
1
