62
INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING

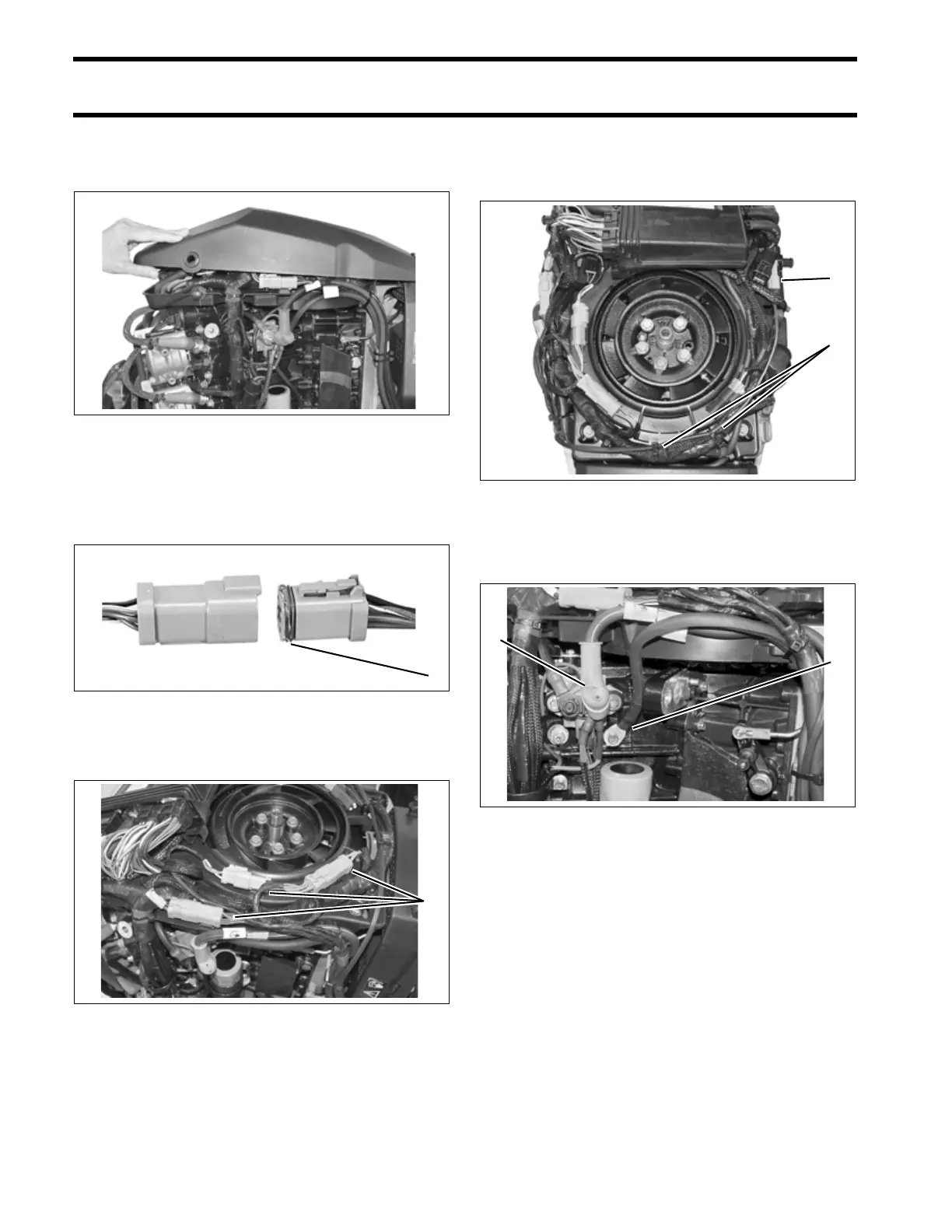

Electrical Harness Connections
Remove flywheel/harness connector cover.
Before installing electrical connectors, check that
the seal is in place. Clean off any dirt from con-
nectors. Apply a light coat of Electrical Grease
â„¢
to the seal.
Connect outboard main wire harness to boat wire
harness. Secure connectors in brackets.
Route oil tank sending unit harness around the
front to the port side. Secure all cables with tie
straps.
Install battery cables on starter solenoid and main
ground stud.
Replace flywheel/harness connector cover.
004954
1. Seal 42079A
1. Harness connections 004951
1
1
1. Low oil sender connection
2. Tie straps
004952
1. Positive (+) battery connection
2. Ground (–) connection
004953
1
2
2
1
