263
POWERHEAD
INSTALLATION
10

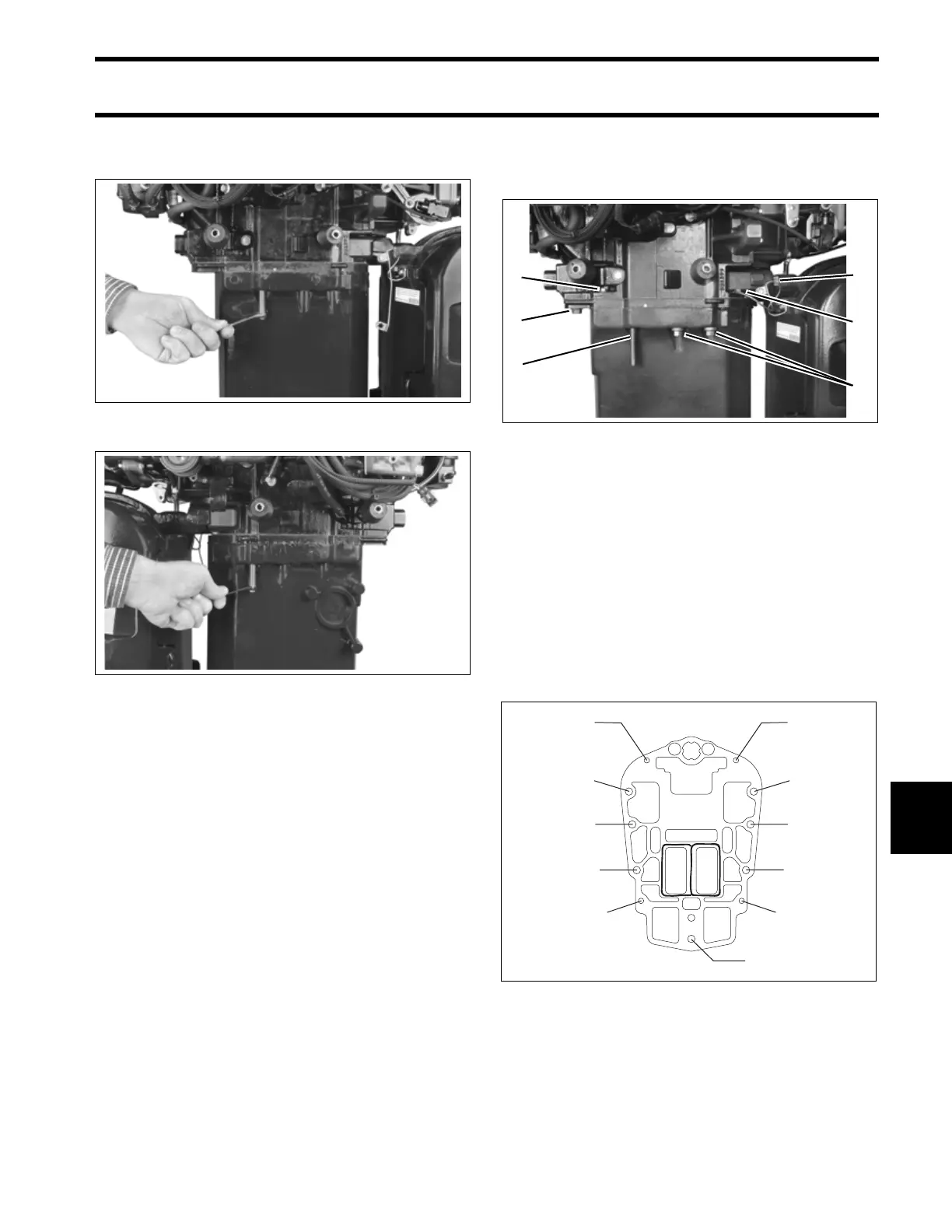

Install pins from Alignment Pin Kit, P/N 5007167,
as shown. Tighten pins until fully seated.
Apply Triple-Guard grease to the threads, and
Gasket Sealing Compound to the shank of the
powerhead screws.
Apply Triple-Guard grease to upper mount screw
threads.
With alignment pins in place, loosely install
remaining powerhead screws and upper mount
screws.
• Torque the large powerhead screws 1 through 4
to 20 to 22 ft. lbs (27 to 30 N·m).
• Remove Alignment Pins and torque screws 5
through 7 to 20 to 22 ft. lbs (27 to 30 N·m).
• Torque the four small powerhead screws to 60
to 84 in. lbs. (7 to 9.5 N·m).
• Torque upper mount screws to 110 to 130 ft.
lbs. (149 to 176 N·m). Confirm that screw heads
are tight against steering arm.
IMPORTANT: Retorque powerhead mounting
screws after outboard has been run at full operat-
ing temperature.
005274
005275
1. Large powerhead screws
2. Small powerhead screws
3. Upper mount screws
4. Alignment pin tool
005277
Large screw torque sequence, 1–7
Small screw torque sequence, A–D
005244
3
2
1
2
1
4
1
2
3
4
5
6
7
Alignment
Pin here
A
B
CD
Alignment
Pin here
