BRP Evinrude E-TEC Series User Manual

163
ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING
6

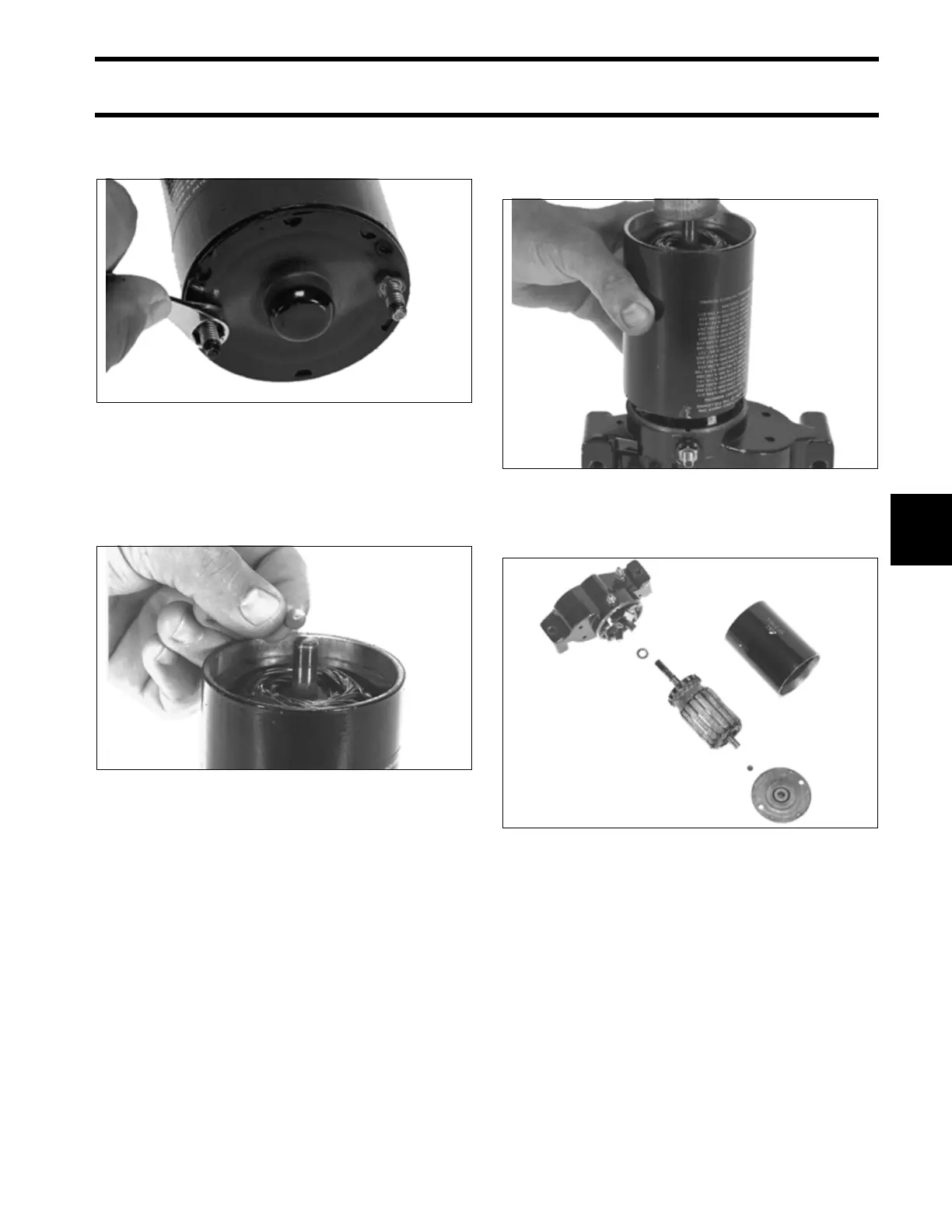

Remove the two thru-bolts. Mark the end cap ori-
entation, and remove the cap.
Gently tap the starter frame with a rubber mallet to
loosen it.
Find the insulator cap (end of the shaft or inside
the end cap). Inspect and replace, if necessary.
Note the alignment marks by the positive terminal
stud. Hold the armature in place, and slide the
frame away from the gear housing.
Slowly remove the armature and thrust washer.
Do not lose the brush springs.
30365
30354B
30352
30351
