240
POWERHEAD
REMOVAL
Disconnect power trim connectors.
V4 MODELS
Disconnect electrical harness from exhaust valve
actuator. It is not necessary to remove actuator
from exhaust housing.
ALL MODELS
Disconnect water overflow hose from vapor sepa-
rator. Remove clamps and muffler assembly from
rear of powerhead.
Remove the four small powerhead screws, seven
large powerhead screws, and the upper mount
screws.
Install Lifting Tool, P/N 342672, on crankshaft.
Tighten mounting screw securely using an

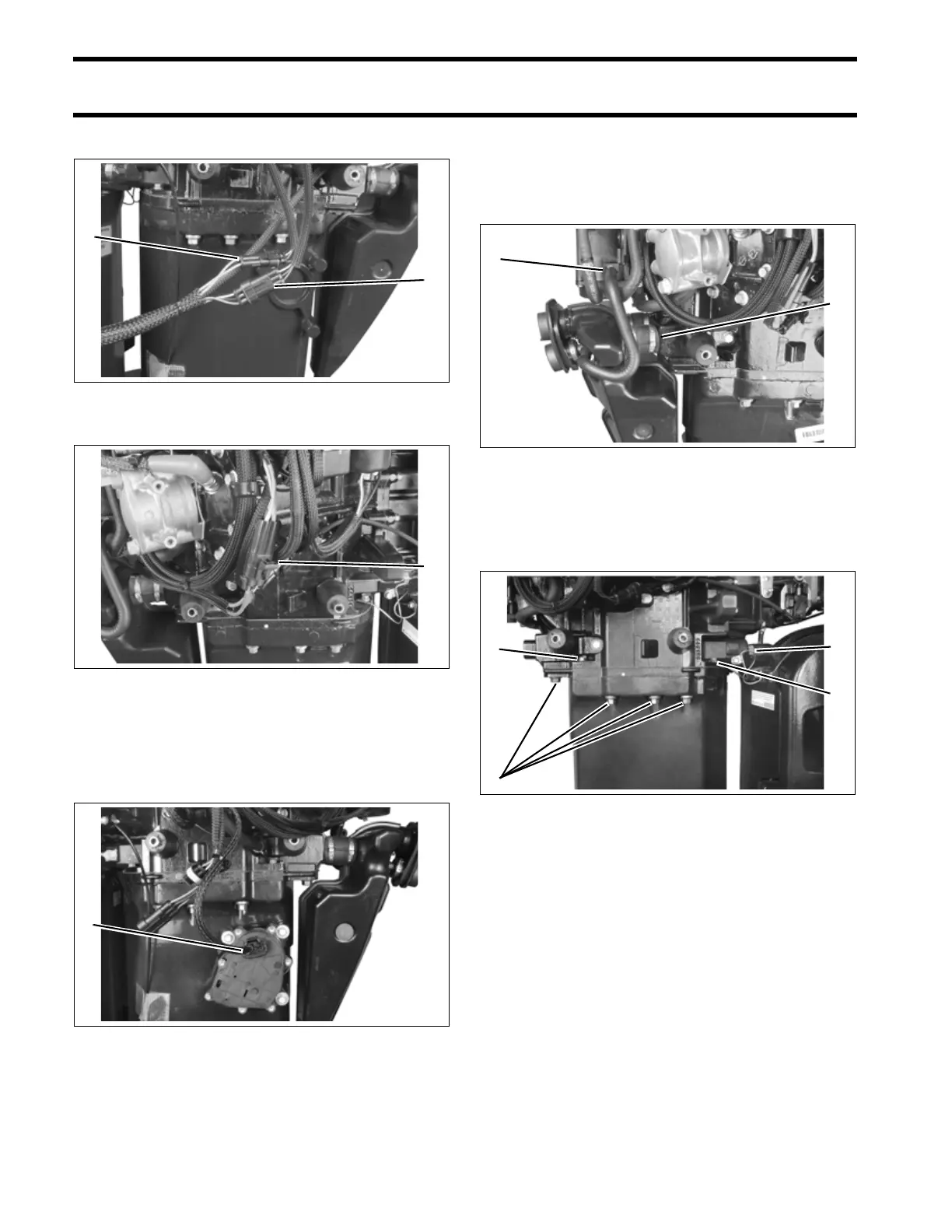

1. Tilt limit switch connector
2. Sending unit connector
005254
1. Tilt relay connector 005255
1. Actuator connector 005247
2
1
1
1
1. Overflow indicator hose
2. Muffler clamps
005243
1. Large powerhead screws
2. Small powerhead screws
3. Upper mount screws
005273
2
1
3
2
2
1
