337
GEARCASE
ASSEMBLY
12

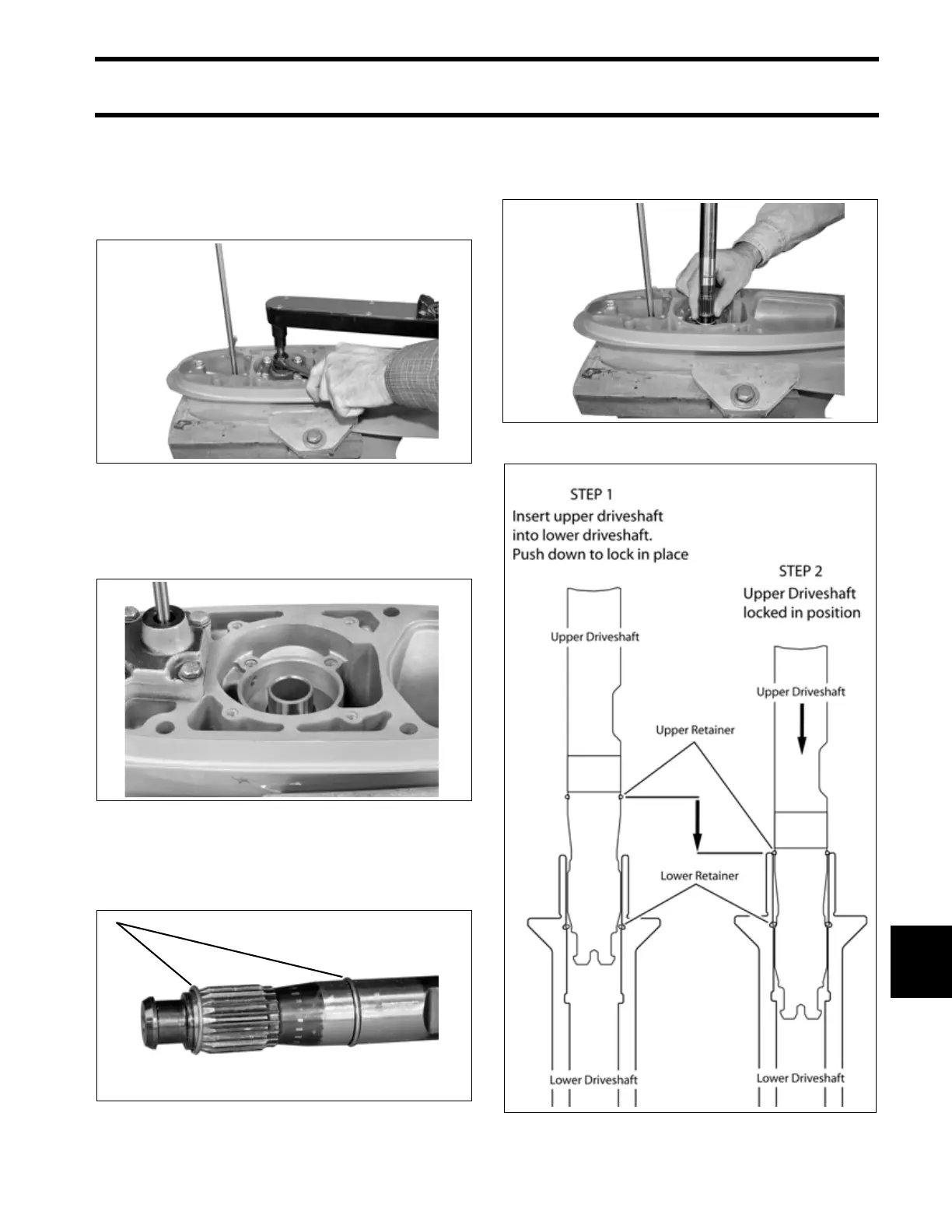

Use a long 3/4 in. combination wrench to hold
Driveshaft Spline Tool and a 1/2” drive torque
wrench to turn the Lower Driveshaft Wrench in a
clockwise direction. Torque pinion screw to 37 to
41 ft. lbs. (50 to 56 N·m).
Temporarily remove the four driveshaft bearing
housing screws with washers and bearing hous-
ing.
To install upper driveshaft into lower driveshaft,
position new retainers (circlip type) on upper
driveshaft as shown.
Hold lower retainer and align upper driveshaft with
lower driveshaft. Force upper driveshaft down
until seated. Driveshaft should lock in place.
005409
005421
1. Retainer(s) 005412
1
005413
Upper Driveshaft Installation 0054
To Next Page
