TRIM AND TILT
SERVICING – THREE PISTON SYSTEM
13

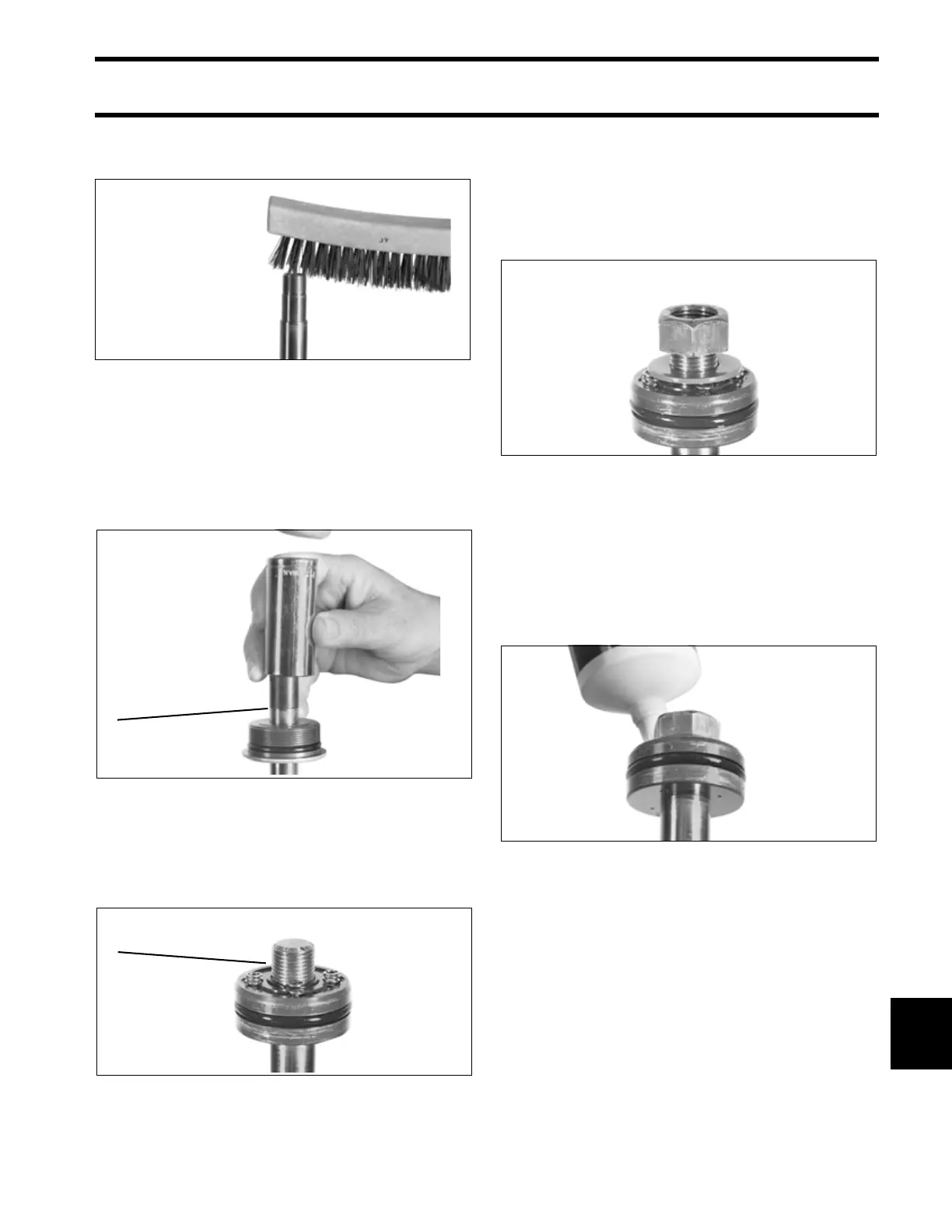

Use a wire brush to clean all thread-locking mate-
rial from the threads on the tilt rod.
Lubricate the inside surface of the end cap. Lubri-
cate and install Tilt Cylinder Seal Protector,
P/N 326005. Use a deep-well socket and a plastic
mallet to drive the end cap onto the rod, then
remove the seal protector. Slide the end cap down
the tilt rod.
Remove any lubricant from the threads on the tilt
rod, prime with Locquic Primer, and let dry. Slide
the piston assembly onto the tilt rod. Place a new
rod O-ring over the threads.
Clean any thread-locking material from the
threads on the inside of the nut. Spray threads of
with Locquic Primer and let dry. Apply a small
amount of Nut Lock to the threads. Slide the
washer over the threads and install the nut.
Torque to 58 to 87 ft. lbs. (79 to 118 N·m).
To ensure that the tilt piston has been properly
assembled and the impact relief balls are properly
seated, apply Power Trim/Tilt & Steering Fluid on
top of the tilt piston. Fluid should not leak past the
impact relief balls while seated. If fluid does leak,
disassemble the piston assembly and inspect the
relief ball seats. Set the tilt rod assembly aside.
