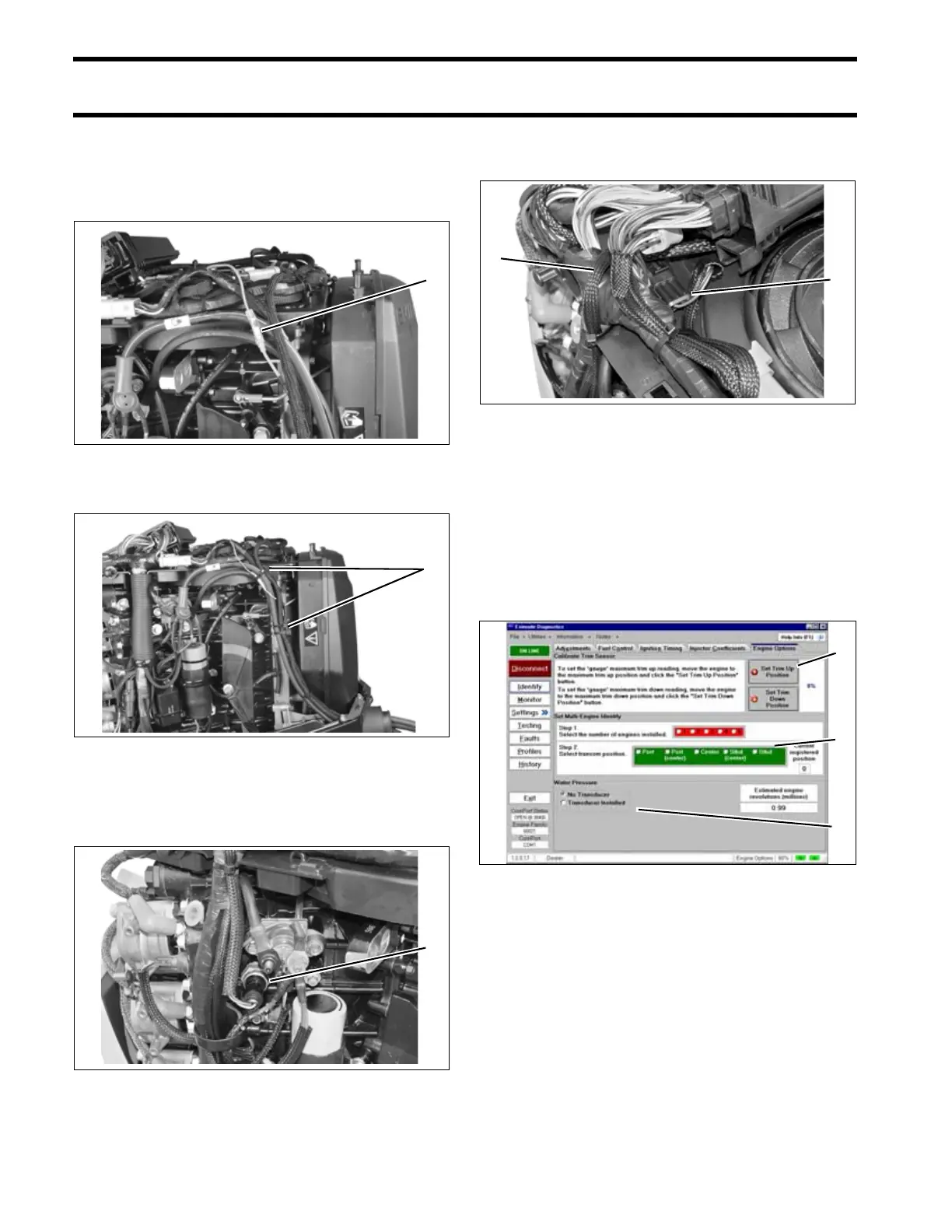

64
INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING
Connect the purple wire from the CANbus Ignition
Harness to the CANbus Network Harness. This
connection supplies power to the network when
the keyswitch is on.
Secure all cables to anchor points with tie-straps.
If a CANbus water pressure gauge is used, install
Water Pressure Transducer Kit, P/N 5006214, in
the cylinder block.
install the transducer lead in the engine wiring har-
ness connector and secure in bracket.
If a CANbus oil level gauge is used, an optional
CANbus oil level sender must be installed in the
oil tank. Connect the oil level sensor harness to
the boat CANbus network.
Use the Evinrude Diagnostics Software program
to activate CANbus control functions in the EMM.
From the Settings screen, select Engine Options.
1. CANbus power supply connector 005269
1. Anchor points 005270
1. Water pressure transducer 004961
1
1
1
1. Water pressure transducer lead
2. Engine harness connector
004962
Engine Options Screen
1. Trim gauge calibration
2. Multi-engine setup
3. Water pressure gauge setup
005136
2
1
1
2
3
