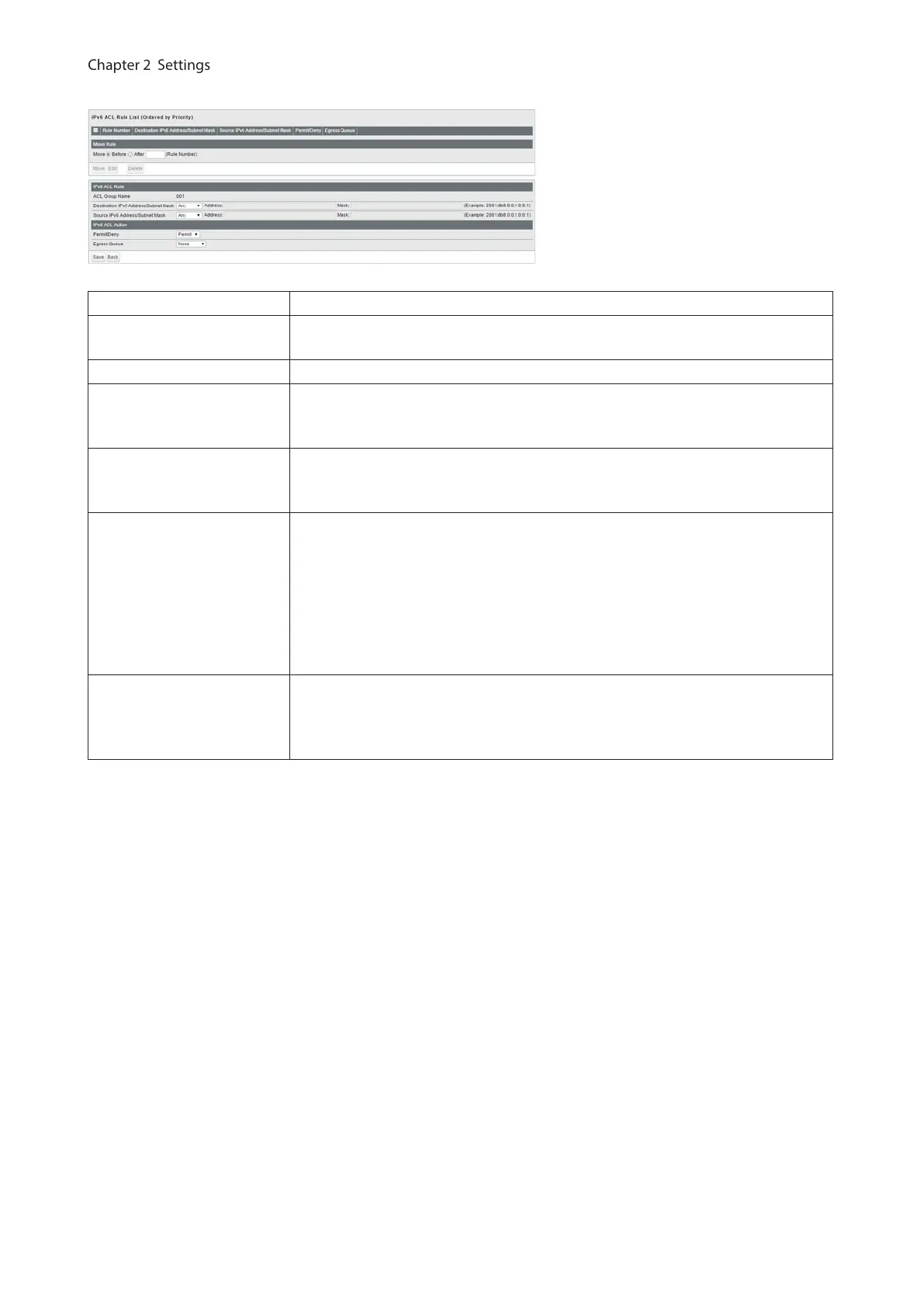

The following screen is displayed when [Show Detail] is clicked. Up to 10 rules can be configured per group.
IPv6 ACL Rule List Displays the list of rules in the ACL group. Rules are listed in priority order.
Move Rule
Select a rule and enter the rule number that the selected rule moves to before (or
after). Select [Before] or [After] and click [Move] to move the priority of the rule.
ACL Group Name Displays the selected ACL group name.
Destination IPv6 Address/
Subnet Mask
Configure the filtering rule based on the frame’s destination IPv6 address. For
instructions on how to enter the address, refer to “About Address and Mask”
section below.
Source IPv6 Address/
Subnet Mask
Configure the filtering rule based on the frame’s source IPv6 address. For
instructions on how to enter the address, refer to “About Address and Mask”
section below.
Permit/Deny
Select if the frames that satisfy the requirement can be forwarded to the other
port or not.
Permit
Forwards the incoming frames to the other port. Any packets or frames out of the
range of permitted IP addresses will be dropped.
Deny
Drops the incoming frames.
Egress Queue
Apply the scheduling to the frames satisfy the requirement and configure the
priority. Select the priority from 0 (lowest) to 7 (highest).
The scheduling is executed based on strict or WRR. It depends on the settings on
the [Advanced] - [QoS] page. If QoS is disabled, it will be based on WRR.
About Address and Mask
This product adopts “wildcard masks”. To configure the source IPv6 address or destination IPv6 address, refer to the
following example.
• To specify the range of “2001:db8::” to “2001:db8::ffff”
Enter “2001:db8::” in the address field and also enter “::ffff” in the mask field.
• To specify only “2001:db8::”
Enter “2001:db8::” in the address field and also enter “::” in the mask field.
67
