CAB SQUIX Configuration Manual

17
6 Conguration
6.1.7 Labelling

If applicator is not installed, access only with service key inserted.
 Start menu.
 Select Setup > Labelling.

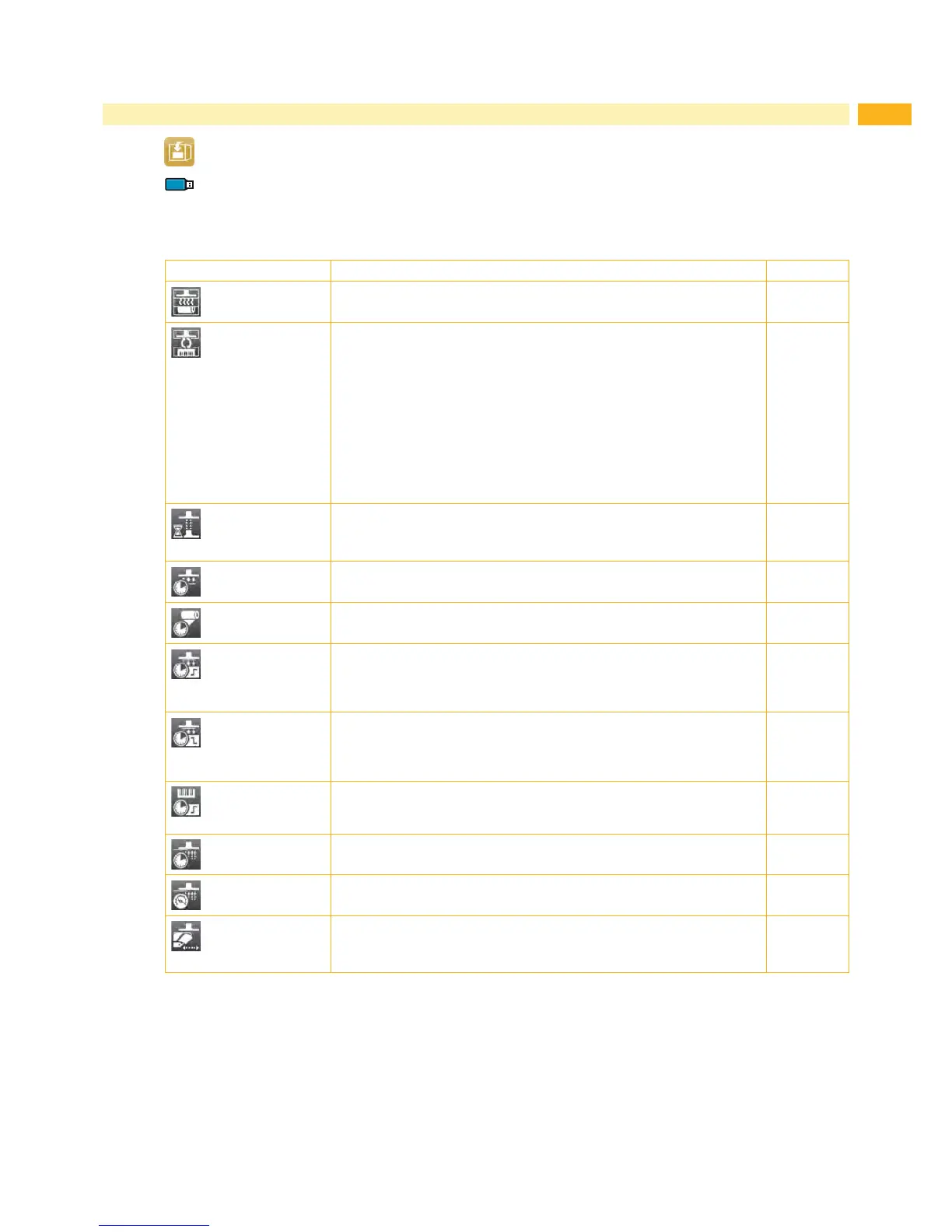

Parameter Meaning Default
Transfer mode Setting the operation mode Stamp on, Roll on, Blow on Stamp on
Cycle sequence Setting the application mode Print-Apply / Apply-Print
Print-Apply:
An external start signal releases the print of a label and following the
application of the label. After a cycle is complete, the pad without label
waits in the start position.
Apply-Print:
Anextrasignalstartstheprintoftherstlabelandthetransferofthe
label to the pad. The external start signal releases the application of the
label and following the print and transfer of the next label.
After a cycle is complete, the pad with a label is in the waiting position.
Print-Apply
Waiting position up: Pad waits in the start position for the start signal
down: Pad waits in the labelling position for the start signal
Only at Transfer mode = Blow on and Cycle sequence = Apply-Print
up
Blow time
Switch-on time (max. 2,5 s) of the blowing air for the label transfer
Only at Transfer mode = Blow on
1000 ms
Roll-on time
Dwell time (max. 5 s) of the pad in the labelling position
Only at Transfer mode = Roll on
1000 ms
Support delay on
Setting the switch-on delay (max. 2,5 s) for the supporting air between
print start and switching on the supporting air. The delay prevents
swirling at the front of the label and, consequently, avoids faults when
the label is being picked up from the printer.
0 ms
Support delay off
Setting the switch-off delay (max. 2,5 s) for the supporting air between
the end of label forwarding and switching on the supporting air. The
delay can be useful to separate the rear edge of the label from the
carrier to avoid errors and to improve the accuracy of label positioning
0 ms
Start delay
Delay (max. 2,5 s) between start signal and the start of an labelling
cycle.
Allows e.g. the use of product sensors at conveyors.
0 ms
Vacuum delay
On - The vacuum will be switched on after the label feed is completed.
Off - The vacuum will be switched on when the label feed starts.
Off
Vacuum control
Setting the label transfer check from printer to pad and from pad to
product by the vacuum sensor
On
Peel-off position
Shift the position of the dispensed label relative to the dispensing edge.
The setting can also be adjusted by the software.
Thesettingsofconguration and software are added together.
0.0 mm
Table 11 Parameters of the Setup > Labelling menu

CAB SQUIX Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi
Max Print Speed	300 mm/s
Display	LCD
Interfaces	USB, Ethernet, Serial (RS232), USB Host
Memory	64 MB RAM
Media Sensors	Reflective, transmissive
Label Length	5 to 4000 mm
Keyboard	Optional
Supported Materials	Paper, plastic, textile
