CAB SQUIX Configuration Manual

31
7 Test Functions

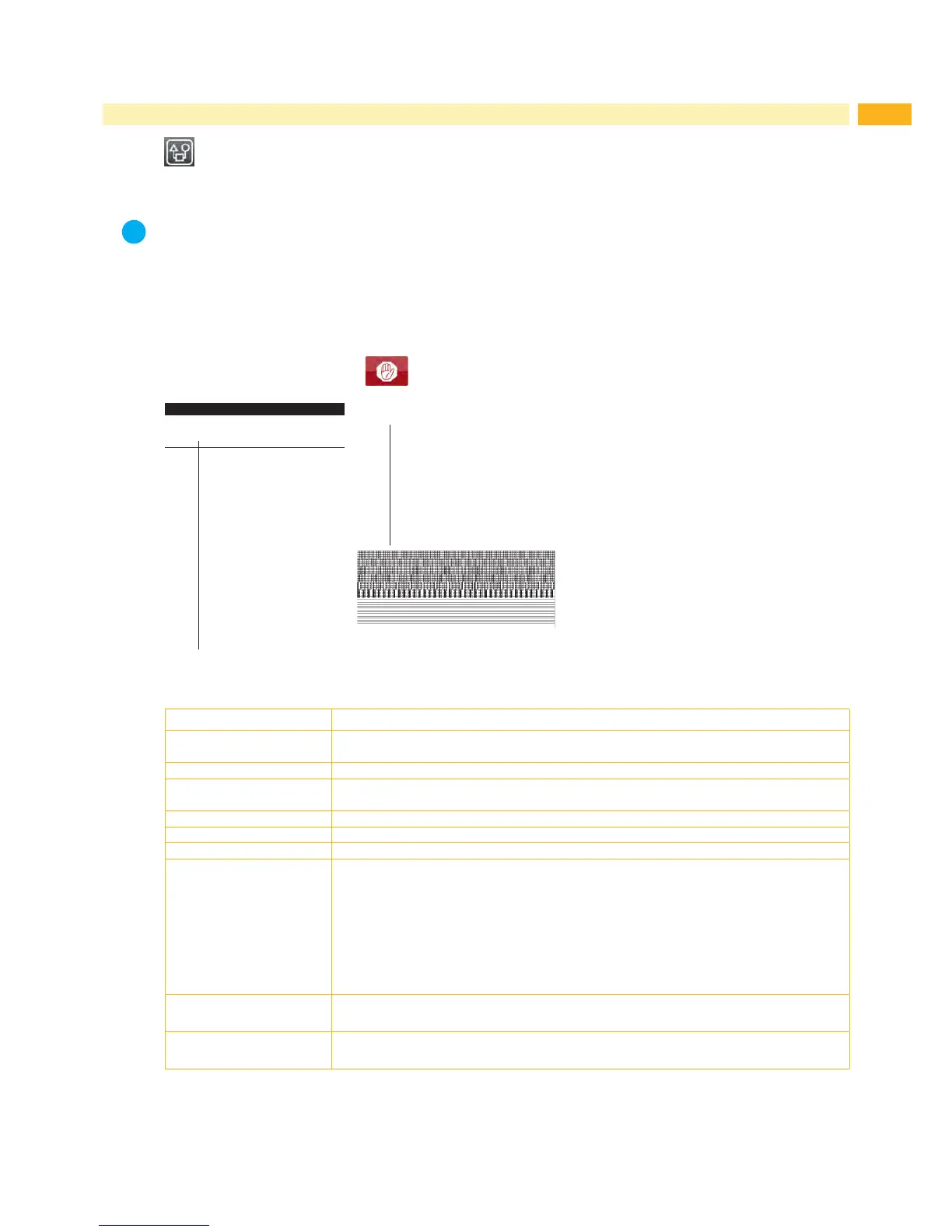

7.4 Device List
The Device list function prints out the most important information on hardware components of the printer and connected
devices.TheprintoutoccursusingtheheatlevelandprintspeedspeciedintheSetup > Printing menu.
i
Notice!
The printout occurs without taking the label gaps into consideration. This is why endless media are most
suitable for this purpose.
 Insert printable medium (labels, endless paper) which extends across the entire printing width.
 If the printout is to occur using thermal transfer printing, insert transfer ribbon with the maximum width.
 Start menu.
 Select Test > Device list.
The printout can be canceled with
.
Device list
Thu Aug 11 10:06:29 2016
cab SQUIX 4/300MP
Firmware V5.00 (Jul 28, 2016) - #164162031171
Name Description
CPU
TPH
I/F 1
I/F 2
I/F 3
IFFS
USBMEM
SD
USB [1]
High
USB [2]
High
USB [3]
Full
USB [4]
Full
X4, #164162031171
PCB-Rev. 0, FPGA-Rev. 12
105.7mm 11.806dots/mm X4 V59-0051, #59-0059
Resistance: 1154R
Manf. Fri Apr 8 10:03:42 2016
First: Thu Jun 2 16:07:12 2016
Last: Thu Aug 11 08:37:08 2016
Ethernet 10/100 MBit/s
MAC: 70:82:0e:99:91:63
USB 2.0 Device
RS-232
45 MByte
3928 MByte
3465 MByte
Linux 3.10.4 ehci_hcd/EHCI Host Controller
#ci_hdrc.1,Rev. 3.10
Mfr. 1D6B, ID: 0002, Class: 09/00, Protocol: 01
Driver: hub
Cypress Semiconductor Corp./USB2.0 Hub
Rev. 32.99
Mfr. 04B4, ID: 6570, Class: 09/00, Protocol: 01
Driver: hub
Cambridge Silicon Radio, Ltd.
Rev. 52.76
Mfr. 0A12, ID: 0001, Class: E0/01, Protocol: 01
Driver: btusb
cab/Service-Key
#11-10296933,Rev. 1.06
Mfr. 0985, ID: 0BD8, Class: FF/00, Protocol: FF
Driver: cab_key
USB [5] Microchip Technology Inc./AR1100 HID-DIGITIZER
Full Rev. 1.01
Mfr. 04D8, ID: 0C03, Class: 00/00, Protocol: 00
Driver: usbhid
USB [6] Ralink/802.11 n WLAN
High #1.0,Rev. 1.01
Mfr. 148F, ID: 5370, Class: 00/00, Protocol: 00
Driver: rt2800usb
USB [7] USB /Flash Disk
High #90730B001E66,Rev. 1.10
Mfr. 13FE, ID: 1D00, Class: 00/00, Protocol: 00
Driver: usb-storage
USB [8] Cypress Semiconductor Corp./USB2.0 Hub
High Rev. 32.99
Mfr. 04B4, ID: 6570, Class: 09/00, Protocol: 01
Driver: hub
HEALTH PS 23,8V, BATT OK, TPH 27,9°C
Figure 14 Device list
Parameters marked italic are only printed when the service key is inserted
Name Information
CPU Type and serial number of the PCB CPU
Revision of PCB CPU and FPGA
TPH Print width and resolution of the installed thermal printhead
IF [x] Type of interfaces installed
x: Number of interface
IFFS Size of the Internal Flash File System
USBMEM Size and type of an installed USB storage device
SD Size and type of an installed SD card
USB [a]
Speed
Type and revision of installed USB devices
a: number of USB device
Speed: data transfer speed (low, full, high)
The following properties are only displayed when the service key is inserted:
Mfr.
:ManufacturerID.ThisidentiesthemanufactureroftheUSBdevice
Class: Code for the USB device class
Protocol: Code for the type of communication with the USB device
Phase: Internal value for troubleshooting
HEALTH Printhead voltage, charge state of the lithium battery on the PCB CPU,
temperature of CPU and printhead
Line pattern Lines differing in thickness at various distances. They are used to evaluate the print
quality.
Table 24 Parameters of the Device list

CAB SQUIX Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi
Max Print Speed	300 mm/s
Display	LCD
Interfaces	USB, Ethernet, Serial (RS232), USB Host
Memory	64 MB RAM
Media Sensors	Reflective, transmissive
Label Length	5 to 4000 mm
Keyboard	Optional
Supported Materials	Paper, plastic, textile
