CAB SQUIX Configuration Manual

49
12 I/O Interface
12.3.2 Peeling-off on Demand without Present Sensor
In the peel-off mode with PS800 or PS900 the label removal from the peel position is detected by an optical sensor.
UsingtheI/OinterfacethelabelremovalcanbeconrmedbytheexternalsignalLBLREM. That way it is possible to
operate the printer in peel-off mode without present sensor.
Starting Print and Conrming Label Removal with Two Signals
Requirements:
• Operation without present sensor.
• External circuit as shown in Figure 29
• Setting Printing > Print on Demand = "On".
• Setting Interfaces > I/O > Automatic LBLREM = "Off"
Operation:
 Send a print job.
 Activate START.
Therstlabelwillbeprintedantransportedtothepeelposition.
 Remove the label.
 ConrmthelabelremovalwithsignalLBLREM.
 Activate START to start the next cycle.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Pin
-
-
-
FEEDON
-
GND_INT
-
-
JOBRDY
READY
-
REPRINT
START
PAUSE
RIBWARN
LBLREM
JOBDEL
RSTERR
P24_INT
P24_EXT
PEELPOS
ERROR
STOP
-
GND_EXT
P24
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Pin
-
-
-
FEEDON
-
GND_INT
-
-
JOBRDY
READY
-
REPRINT
START
PAUSE
RIBWARN
LBLREM
JOBDEL
RSTERR
P24_INT
P24_EXT
PEELPOS
ERROR
STOP
-
GND_EXT
Operation with external voltage supply Operation using the internal voltage

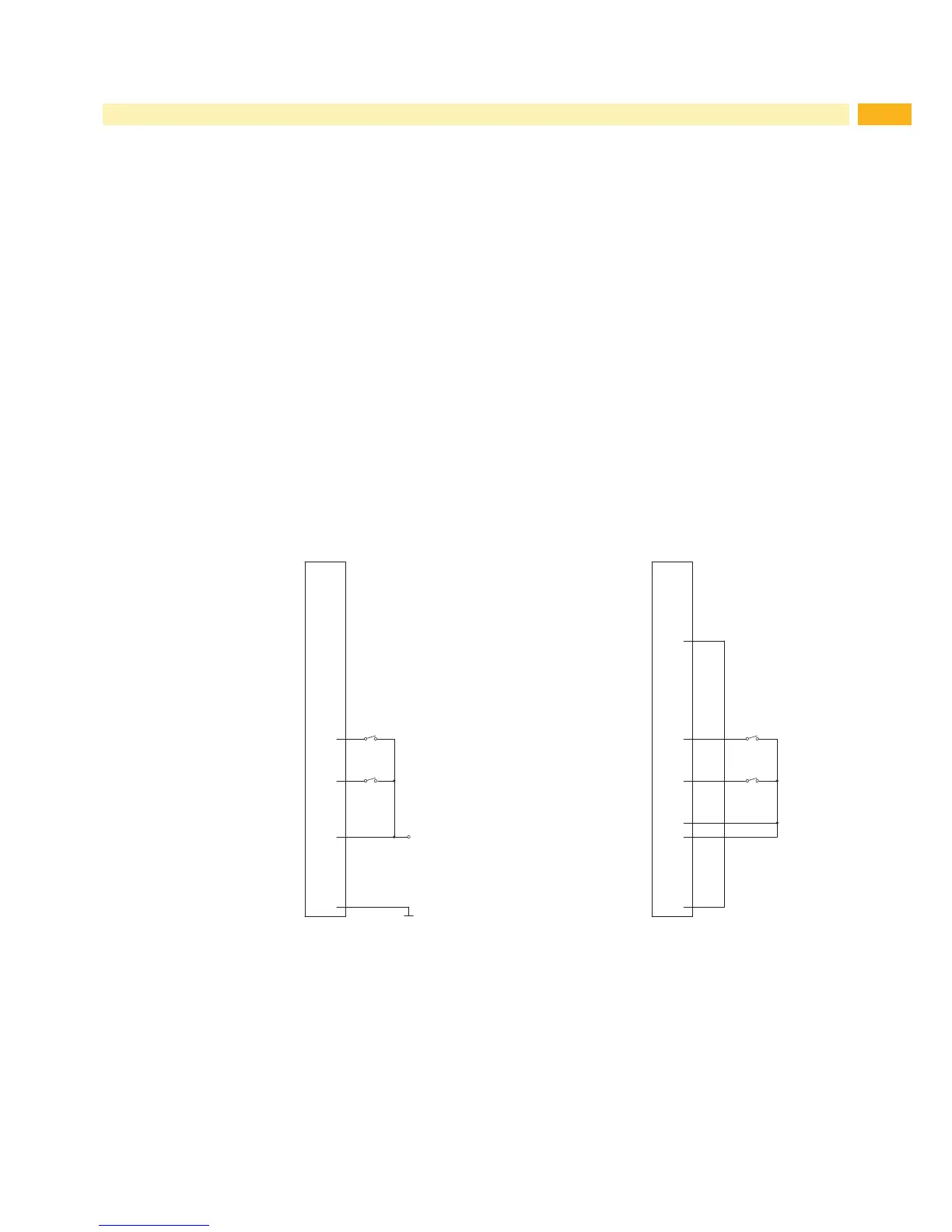

Figure 29 External circuit for peeling-off on demand without present sensor with two signals

CAB SQUIX Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi
Max Print Speed	300 mm/s
Display	LCD
Interfaces	USB, Ethernet, Serial (RS232), USB Host
Memory	64 MB RAM
Media Sensors	Reflective, transmissive
Label Length	5 to 4000 mm
Keyboard	Optional
Supported Materials	Paper, plastic, textile
