12 I/O Interface
12.3.4 Pausing and Continuing a Print Job
In the standard operation without a peripheral device connected all labels of a print job will be printed without
interruption.
To adapt the label output of the printer e.g. to an external device with a lower transport speed the print job can be
interrupted meanwhile.
Requirements:
• Operation without peripheral device.
• External circuit as shown in Figure 33.
• Setting Printing > Print on Demand = "Off".
Operation:
 Send a print job.
The labels of the print job will be printed one after the other.
 Activate the signal PAUSE.
After completion of the current label the print job will be paused.
 Deactivate the signal PAUSE.
The print job will be continued.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Pin
-
-
-
FEEDON
-
GND_INT
-
-
JOBRDY
READY
-
REPRINT
START
PAUSE
RIBWARN
LBLREM
JOBDEL
RSTERR
P24_INT
P24_EXT
PEELPOS
ERROR
STOP
-
GND_EXT
P24
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Pin
-
-
-
FEEDON
-
GND_INT
-
-
JOBRDY
READY
-
REPRINT
START
PAUSE
RIBWARN
LBLREM
JOBDEL
RSTERR
P24_INT
P24_EXT
PEELPOS
ERROR
STOP
-
GND_EXT
Operation with external voltage supply Operation using the internal voltage

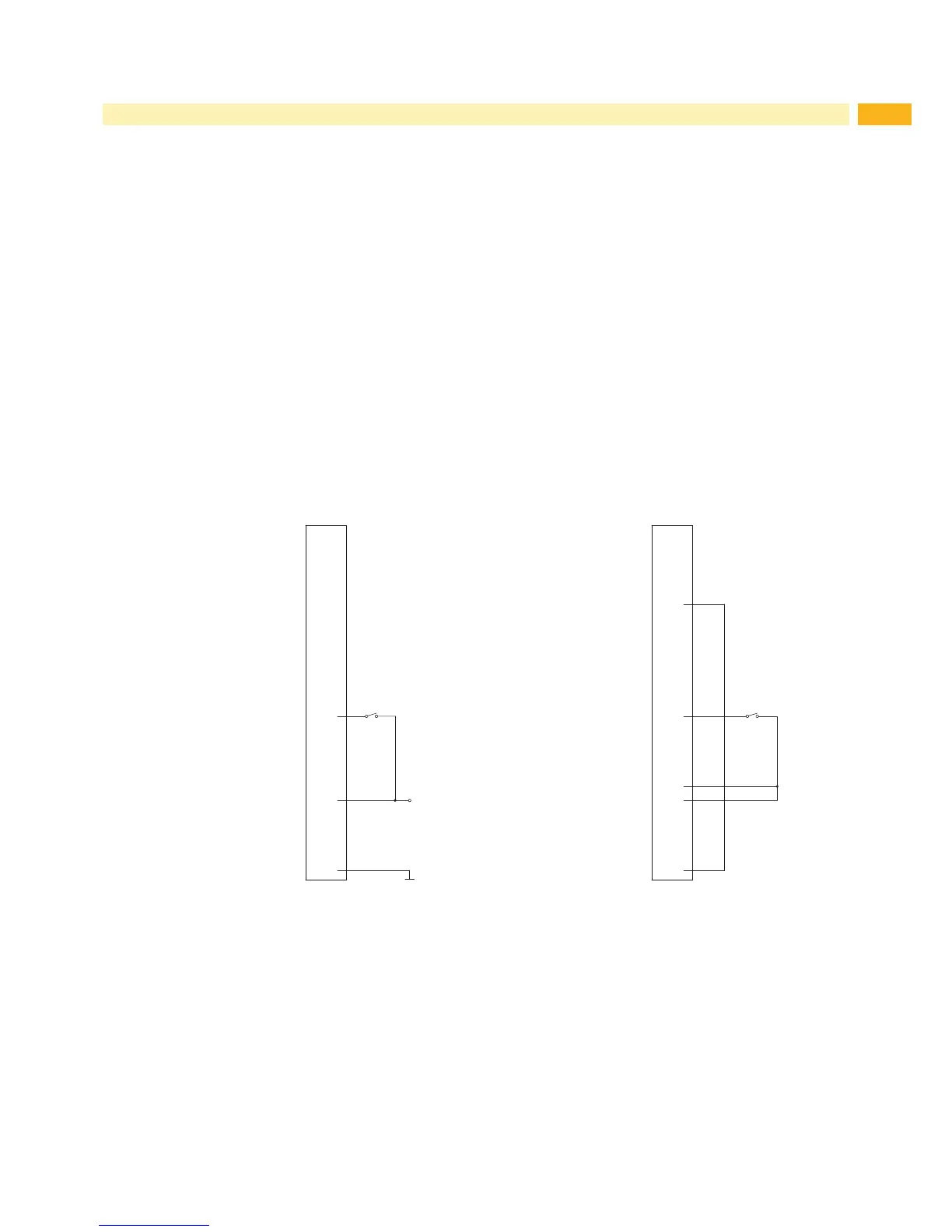

Figure 33 External circuit for pausing and continuing a print job

CAB SQUIX Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi
Max Print Speed	300 mm/s
Display	LCD
Interfaces	USB, Ethernet, Serial (RS232), USB Host
Memory	64 MB RAM
Media Sensors	Reflective, transmissive
Label Length	5 to 4000 mm
Keyboard	Optional
Supported Materials	Paper, plastic, textile
