CAB SQUIX Configuration Manual

25
6 Conguration
6.2.2 Setup Tab
Onthe"Setup"taballthecongurationparameterscanbesetwhicharealsoaccessibleviathecontrolpanelinthe
Setup menu.

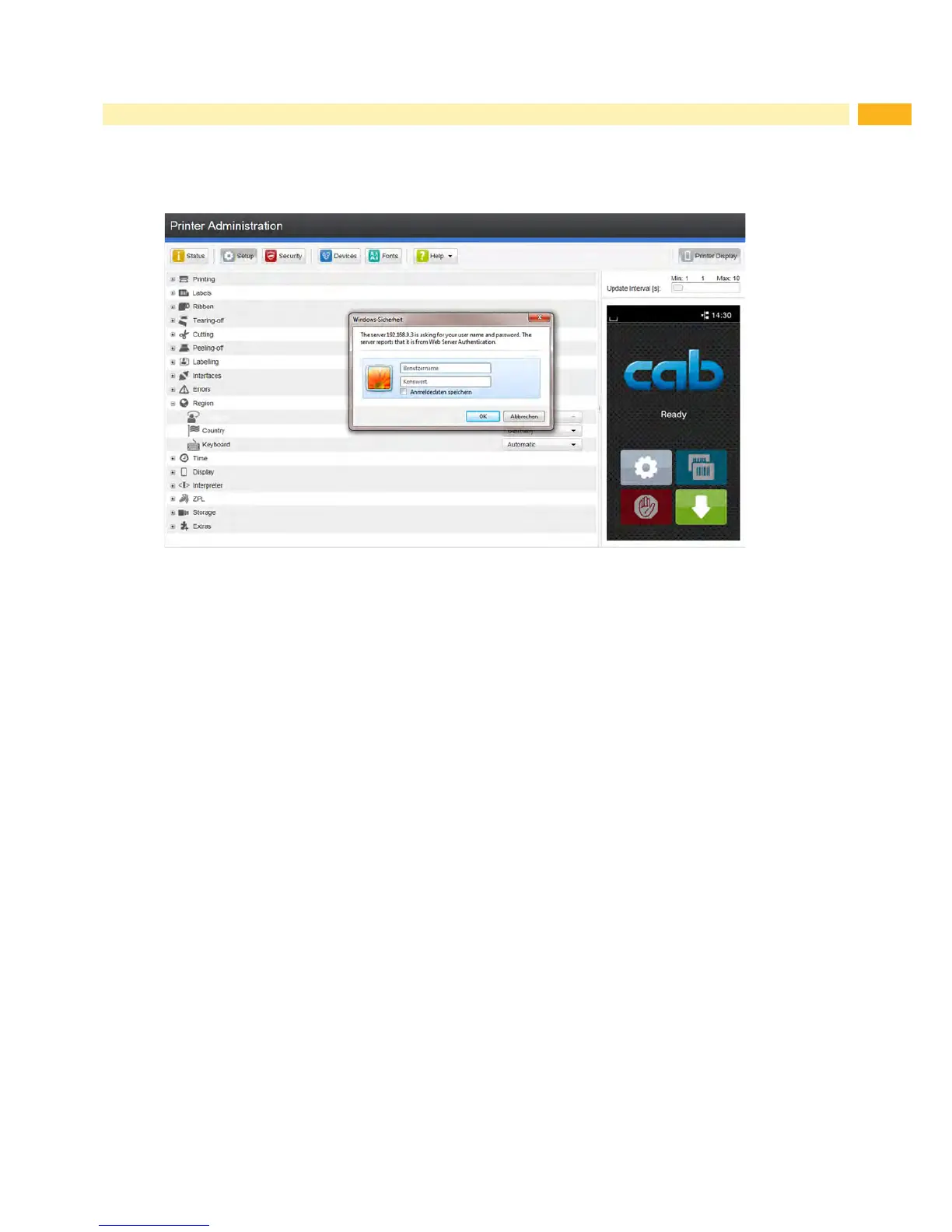

Figure 7 "Setup" tab on the printer web interface
To change a parameter:
1. Locate parameter in the tree structure.
2. Set the value of the parameter at the right end of the concerning line.
A prompt to enter user name and password appears  page 13.
3. Enter user name and password and click OK.

CAB SQUIX Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi
Max Print Speed	300 mm/s
Display	LCD
Interfaces	USB, Ethernet, Serial (RS232), USB Host
Memory	64 MB RAM
Media Sensors	Reflective, transmissive
Label Length	5 to 4000 mm
Keyboard	Optional
Supported Materials	Paper, plastic, textile
