12 I/O Interface
12.3.3 Cutting on Demand with Cutter CU400
In the standard cut mode all labels of a print job will be printed and cut one after another without interruption.
Using the I/O interface the print job can be split into single steps with printing and cutting each one label.
Requirements:
• Operation with Cutter CU400.
• External circuit as shown in Figure 32.
• Setting Printing > Print on Demand = "On".
Operation:
 Send a print job.
 Activate START.
Therstlabelwillbeprintedandcut
 Activate START to start the next cycle.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Pin
-
-
-
FEEDON
-
GND_INT
-
-
JOBRDY
READY
-
REPRINT
START
PAUSE
RIBWARN
LBLREM
JOBDEL
RSTERR
P24_INT
P24_EXT
PEELPOS
ERROR
STOP
-
GND_EXT
P24
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Pin
-
-
-
FEEDON
-
GND_INT
-
-
JOBRDY
READY
-
REPRINT
START
PAUSE
RIBWARN
LBLREM
JOBDEL
RSTERR
P24_INT
P24_EXT
PEELPOS
ERROR
STOP
-
GND_EXT
Operation with external voltage supply Operation using the internal voltage

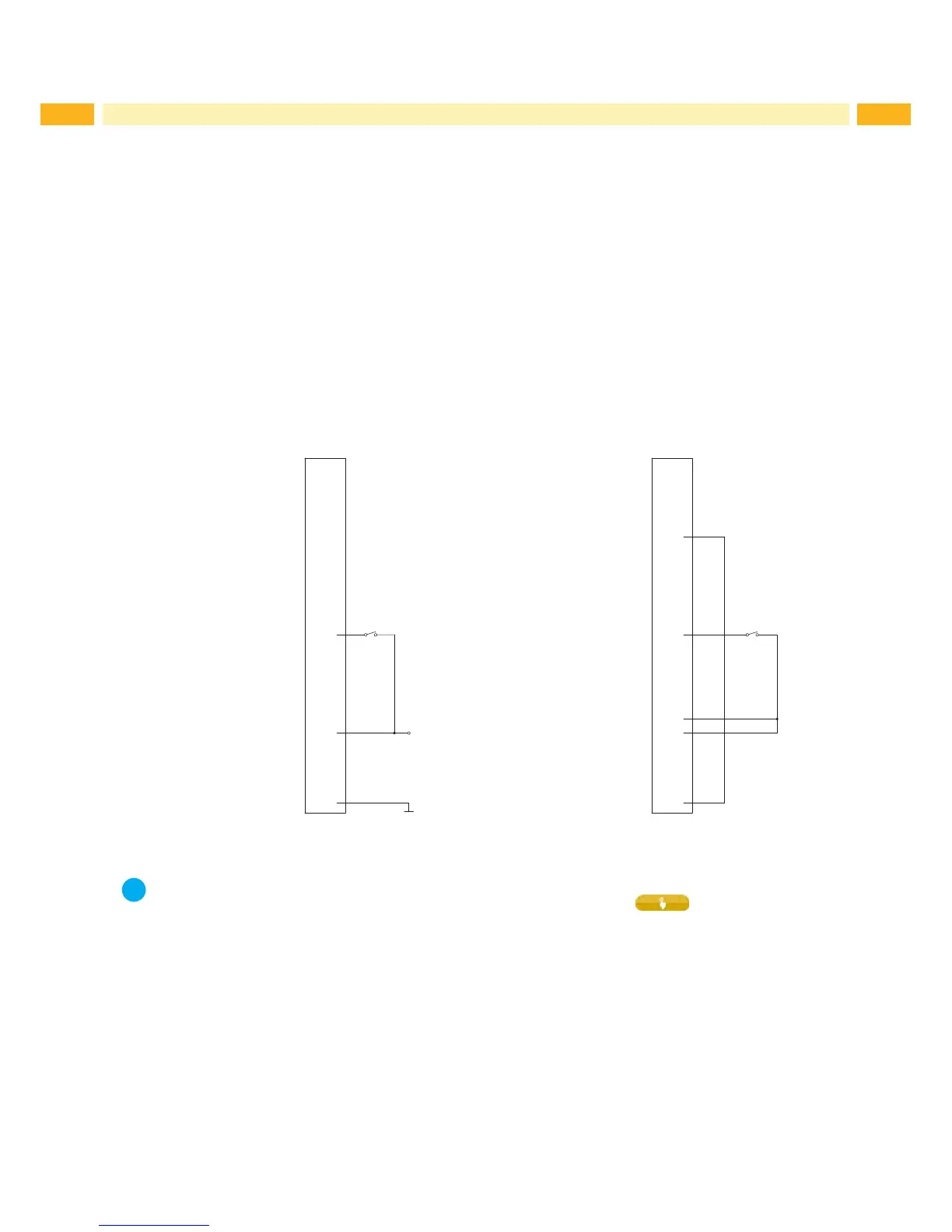

Figure 32 External circuit for cutting on demand with Cutter CU400
i
Notes!
The function of the signal START can be released alternatively by pressing on the touchscreen
display.

CAB SQUIX Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi
Max Print Speed	300 mm/s
Display	LCD
Interfaces	USB, Ethernet, Serial (RS232), USB Host
Memory	64 MB RAM
Media Sensors	Reflective, transmissive
Label Length	5 to 4000 mm
Keyboard	Optional
Supported Materials	Paper, plastic, textile
