Section 7. Creating and Editing Datalogger Programs
• *.TXT – Printer output files created by Edlog are saved with a TXT
extension. These files can be sent to a printer or viewed with a text editor.
A TXT file is created by selecting File | Print to File.
7.4.2.3 Inserting Instructions into the Program
Instructions are entered into the program table in the order that they should be
executed in the program. There are four ways to insert an instruction:
• Select Edit | Insert Instruction from the Edlog menu.
• Press <Shift>+<Insert> on the keyboard.
• Right click a blank line and select Insert Instruction from the pop-up
menu.
• Type the instruction number onto a blank line and press enter.

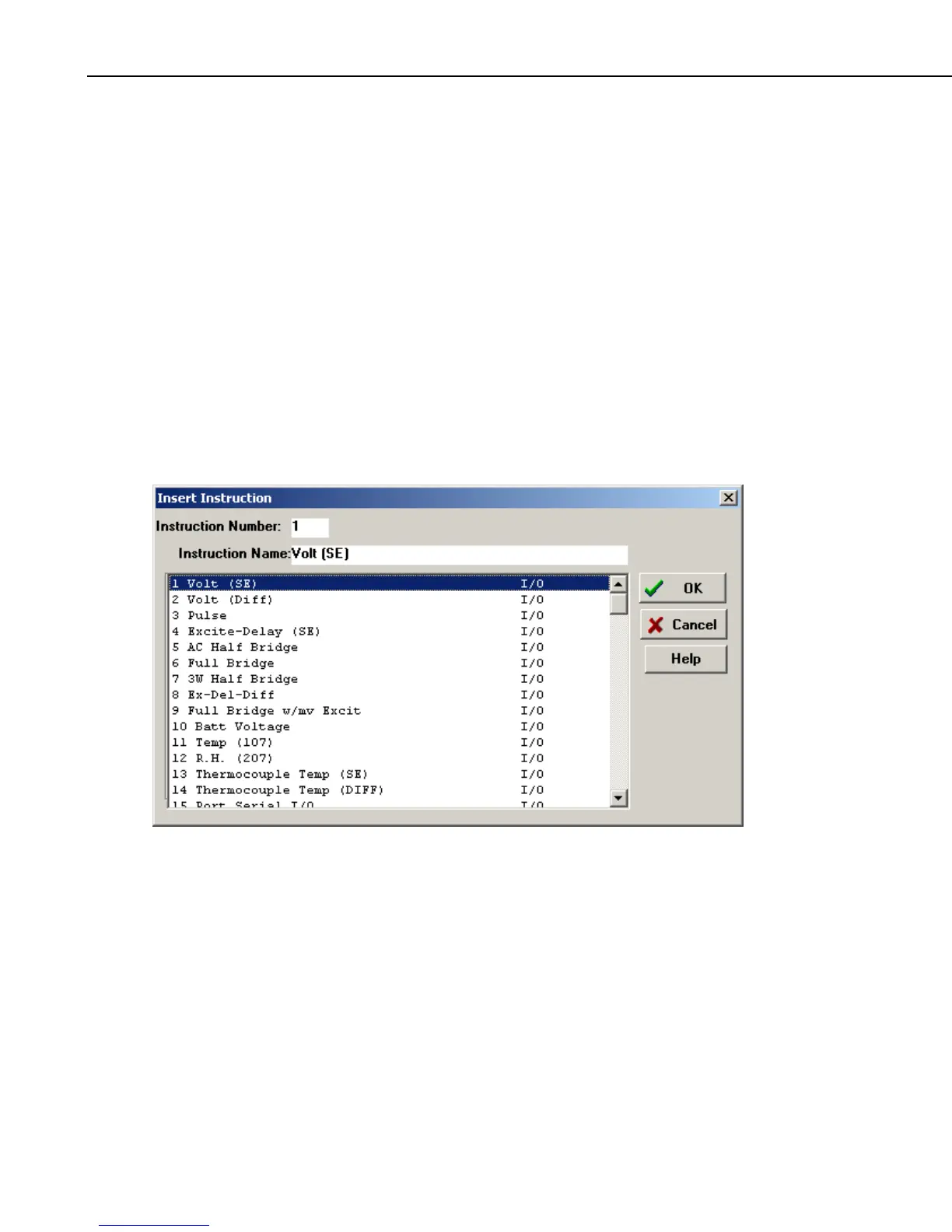

The first three options will open the Insert Instruction dialog box.
To insert an instruction into the program, select it and then choose OK, or
double click the entry in the list. If you need more information on an
instruction, select the instruction and click the Help button.
Note that to the right of each instruction name is a code for the instruction type:
I/O for input/output, Process for instructions that calculate new values, Output
for instructions that write to final storage, or Control for instructions that affect
program flow.
7-56
