Section 10. Utilities Installed with LoggerNet
from device to device as it is a setting but the default value of public is
probably sufficient for most cases.
SNMP Private Community – Enter the “community” string that will be sent
with SNMP SET requests. Like the public community string, this value may
vary between devices but the default value of private will be sufficient for most
cases.
FTP User Name/Password – Enter the authentication parameters for the FTP
server on the RWIS station. These parameters will be used when snapshots are
retrieved.
FTP Port – Enter the TCP port number that the LoggerNet server will use
when downloading snapshots from the RWIS station. In most cases, the
default value of 21 should be adequate.
FTP Passive – Specify whether active or passive mode should be used for FTP
transfers. The default value of passive should be sufficient in most cases and is
particularly recommended when connecting to the station via a firewall. Select
the check box for passive mode. Clear the check box for active mode.

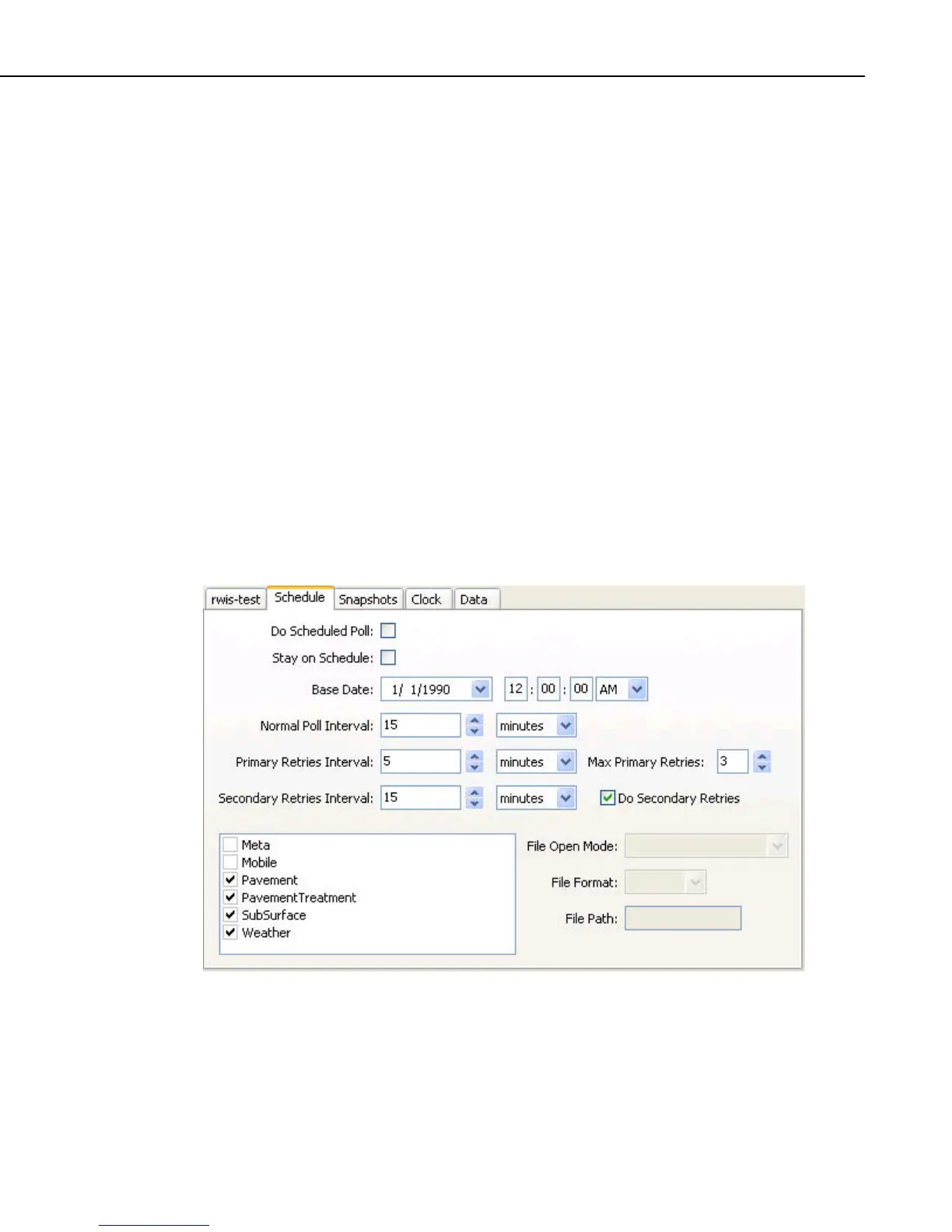

10.3.3.2 Schedule Settings
The Schedule tab is used to control scheduled data collection from the selected
RWIS station. This tab is shown below:
Controls on this panel include the following:
Do Scheduled Poll – Select this check box to enable the data collection
schedule that has been set up for the device. Clearing the check box suspends
the schedule.
10-13
