Section 7. Creating and Editing Datalogger Programs
Programs created with the DOS versions of Edlog earlier than 6.0 were stored
with the instruction description and comments in a *.DOC file instead of a
*.CSI file. The DLD version of these programs can be imported into current
versions of Edlog by using this Document DLD feature, though any comments
will be lost.
7.4.5 Display Options
7.4.5.1 Graphical Toolbar

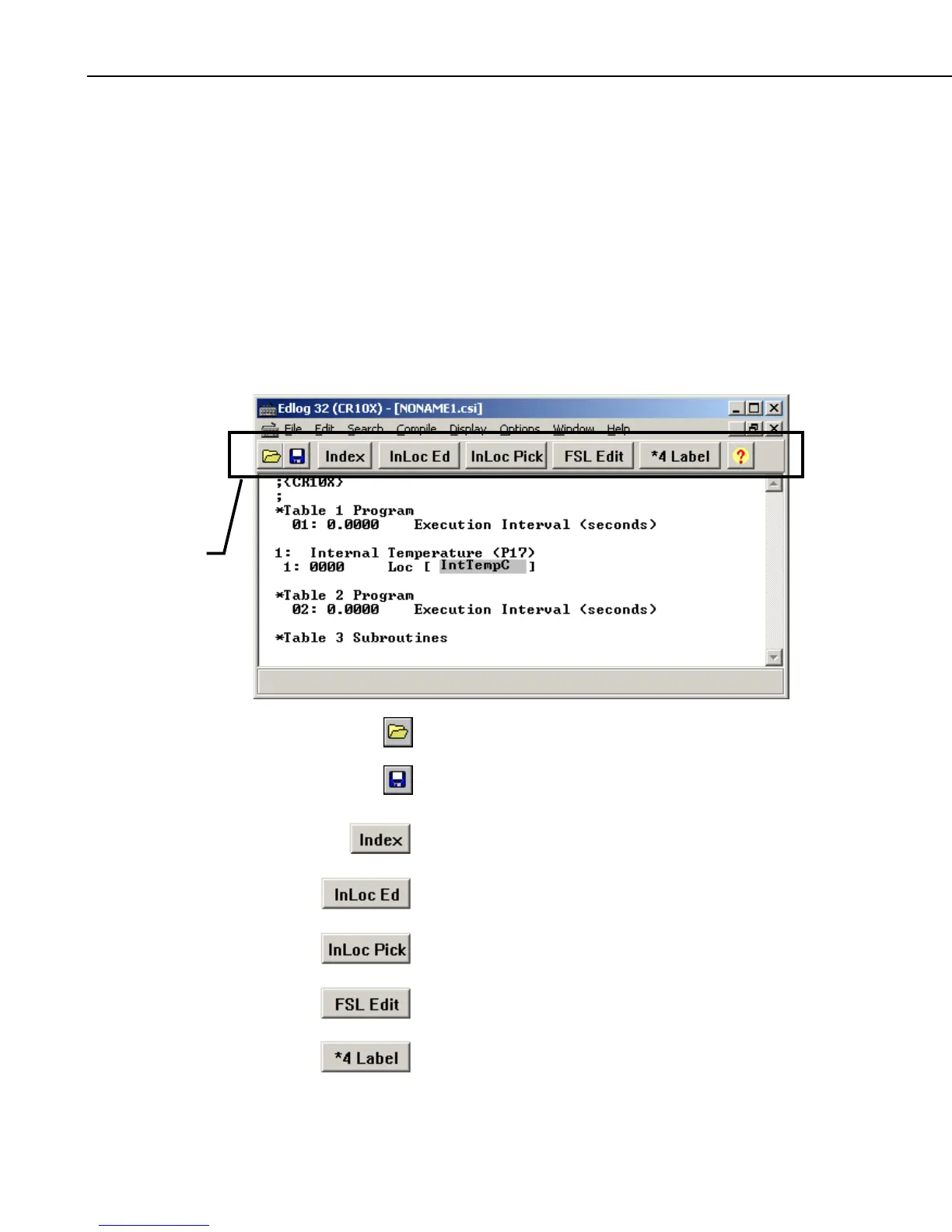

A graphical toolbar provides buttons for some of the more frequently used
menu items in Edlog. The toolbar is made visible by choosing Options | Show
Toolbar from the Edlog menu. Conversely, it is removed from the screen by
choosing Options | Hide Toolbar.
Toolbar
Open a new file.
Save the current file to disk and optionally precompile the
program.
Index the parameter that is selected (for information on
indexing, refer to your datalogger operator’s manual).
Open the input location editor.
Display the input location list; allows the user to select and
insert an input location automatically into a parameter.
Open the final storage label editor
Assign a parameter a star 4 value (for information on star 4
values, refer to your datalogger operator’s manual).
7-66
