Section 4. Setting up Datalogger Networks
The number of tabs will vary, based upon the type of device that is selected.
Some devices may have only hardware and notes tabs, while other devices,
such as dataloggers, have several tabs.
4.2.1 Adding Devices to the Network
Devices are added to the device map in the order that they appear in your
communications link. Let’s assume that your server computer is connected to
the datalogger via a telephone modem. You would first add a ComPort, then
the telephone modem, the remote phone modem, and the datalogger.
To add a ComPort to the network map either right click in the blank area of the
network map or click the Add Root button. Once the ComPort is in place you

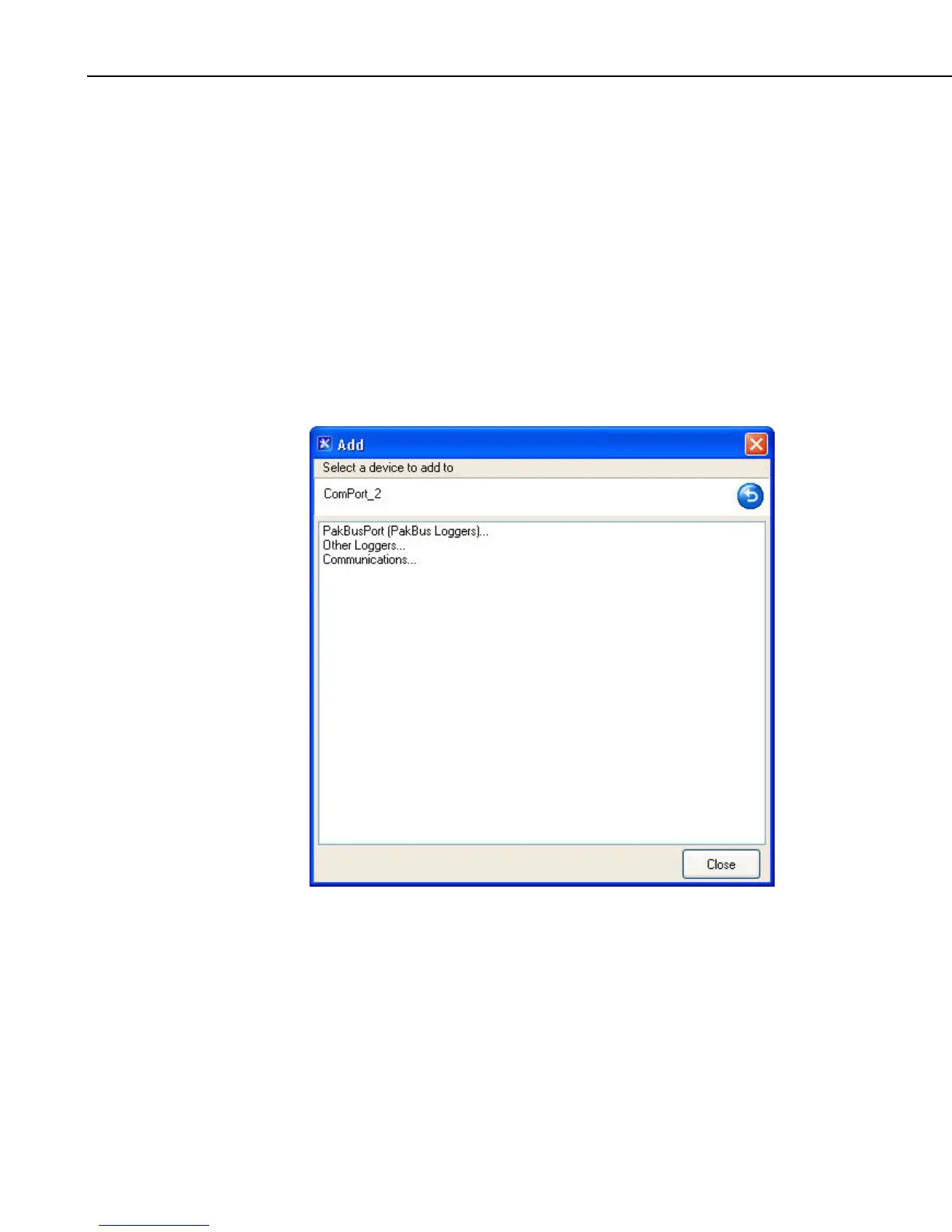

can click the Add button to bring up the Add window. If you used the Add
Root button to add the ComPort, the Add window will automatically be
displayed.
Select Communications to see all communication devices that can be added to
a ComPort.
4-4
