CHAPTER 9 EXTERNAL/AUXILIARY MECHANISM
9-24
6) Remove the 3 installation screws [7],
and remove the main motor [8] from
the driver PCB.

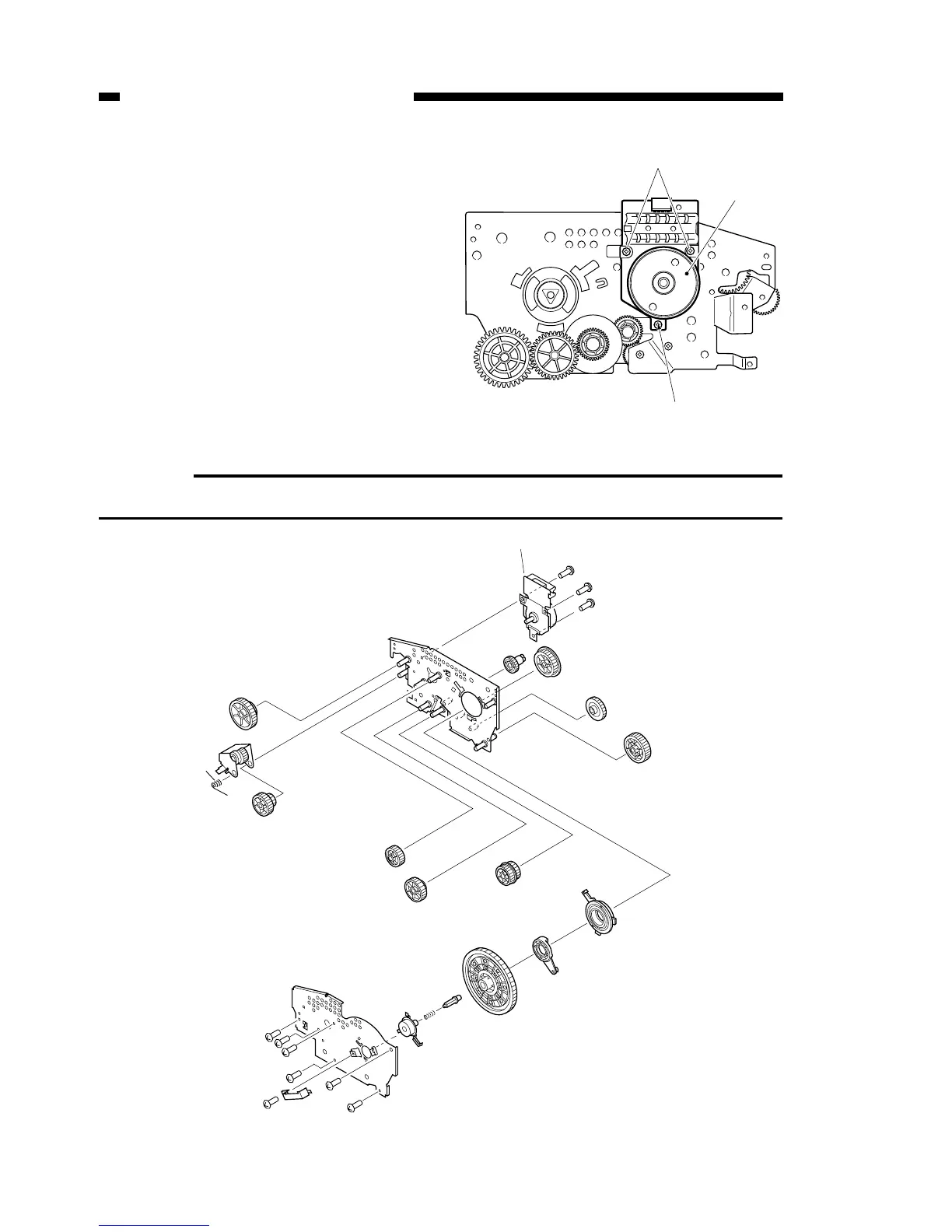

Figure 9-514
Reference:
The structure of the main drive unit is depicted below.
Figure 9-515
[7]
[8]
[7]
Main motor
