CHAPTER 9 EXTERNAL/AUXILIARY MECHANISM
9-23
3. Removing the main motor
1) Remove the printer unit from the
main unit (see page 9-19 for further
information).
2) While pressing the tab, remove the
release lever [1].
3) Remove the 3 installation screws [2],
and remove the drive assembly cover
[3].
4) Remove the connector [4] from the
main motor driver PCB.
5) Remove the 5 installation screws [5]
and remove the main drive assembly
[6].

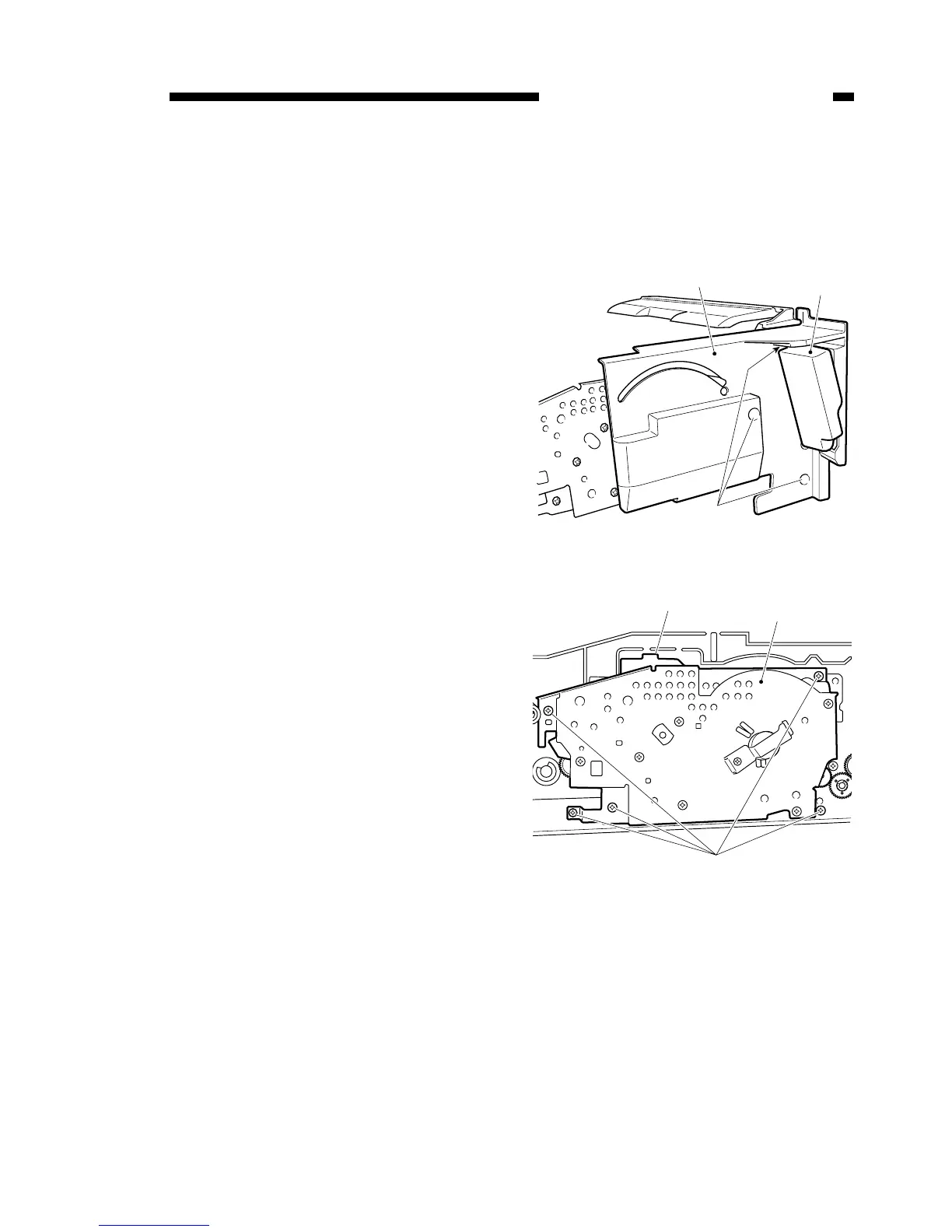

Figure 9-512
Figure 9-513
