CHAPTER 13 TROUBLESHOOTING
13-5

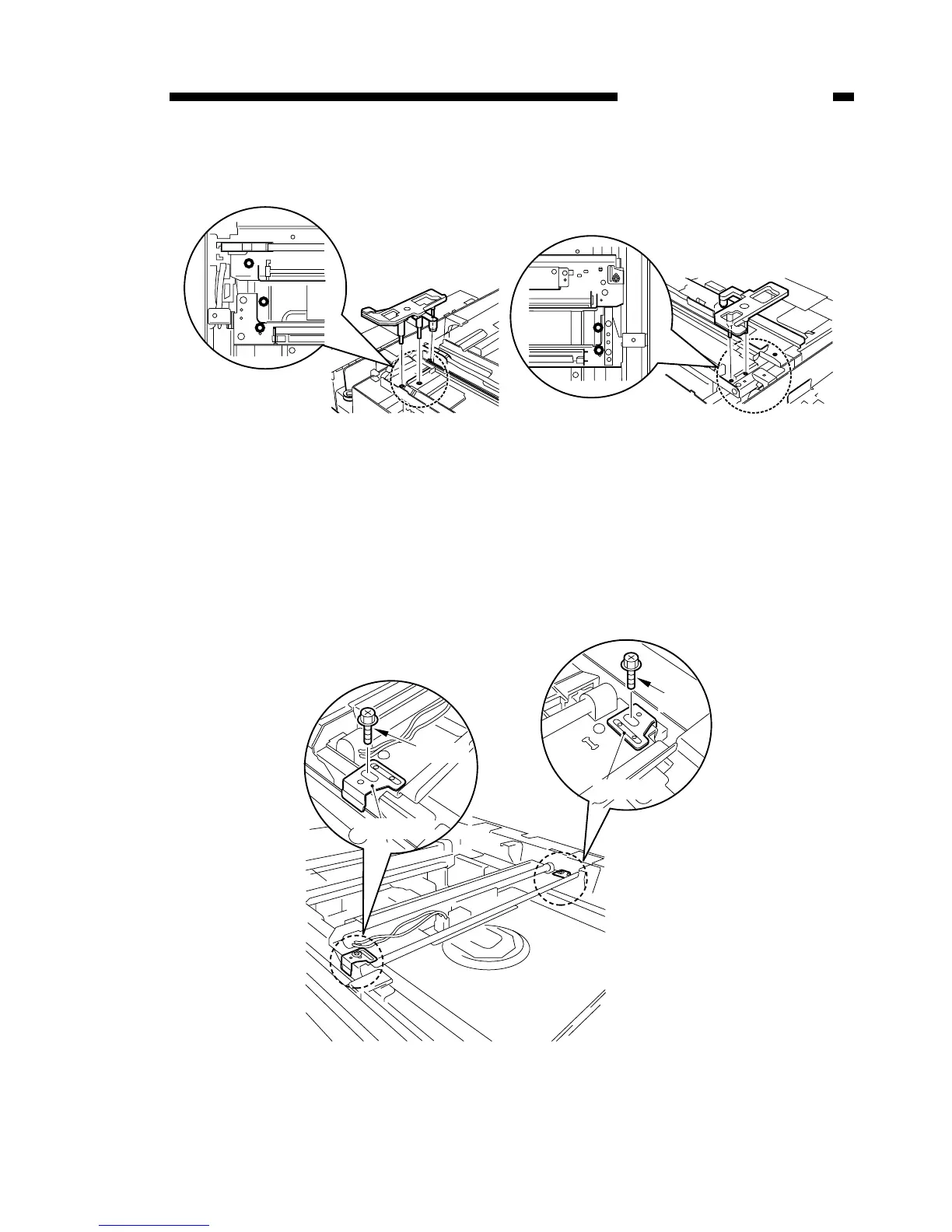

With the mirror positioning tool fitted in the holes shown below, tighten the optical
unit wire pulley’s hexagonal fixing nut.
Figure 13-106
b) Adjustment of distance between No. 1 and No. 2 mirror mounts
With the optical system wire fixing tool for No. 1 mirror mount loosened, follow the
procedures described below to adjust the distance between No. 1 and No. 2 mirror
mounts, and then tighten the fixing tool.
This adjustment should be performed after the operation to adjust the position of No.
2 mirror mount, as described above.
Figure 13-107
To Next Page
