CHAPTER 13 TROUBLESHOOTING
13-6

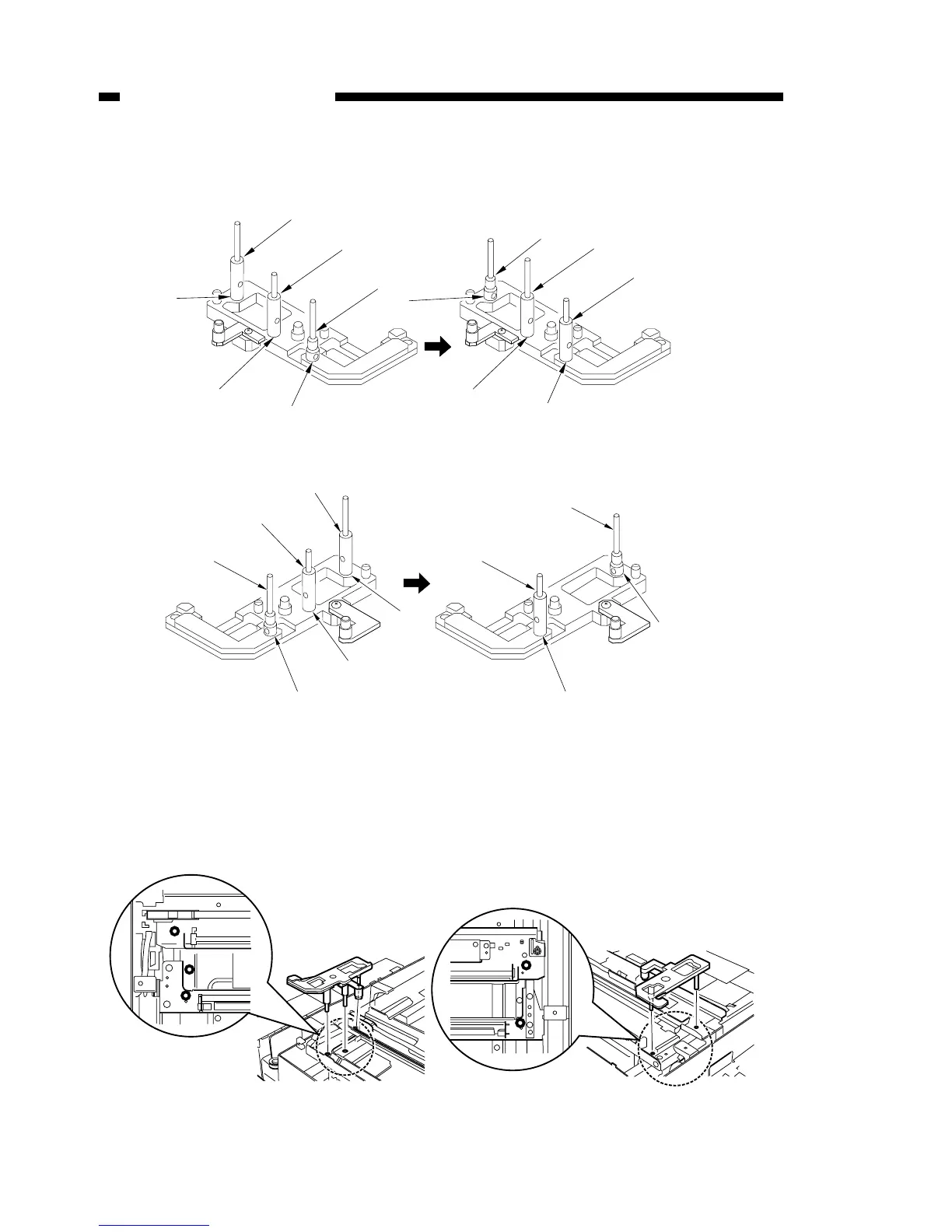

The mirror positioning tool used in the adjustment of the distance between No. 1 and
No. 2 mirror mounts is illustrated below.
Figure 13-108
With the mirror positioning tool fitted in the holes shown below, attach the optical unit
wire hexagonal fixing tool.
Figure 13-109
[1]
[1]
[2]
[2]
[3]
[3]
[1]
[2]
[3]
[1]
[3]
[A]
[A]
[A]
[B]
[B]
[B]
[B]
[C]
[C]
[C]
[A]
FY9-3009-040 (for rear use)
When used to adjust the distance between
No. 1 and No. 2 mirror mounts (for rear use)
FY9-3009-040 (for front use)
When used to adjust the distance between
No. 1 and No. 2 mirror mounts (for front use)
for front use
for rear use
To Next Page
