Canon GP405 - Page 116

CHAPTER 5 LASER EXPOSURE SYSTEM
5-2
COPYRIGHT © 1999 CANON INC. CANON 405/335 REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)

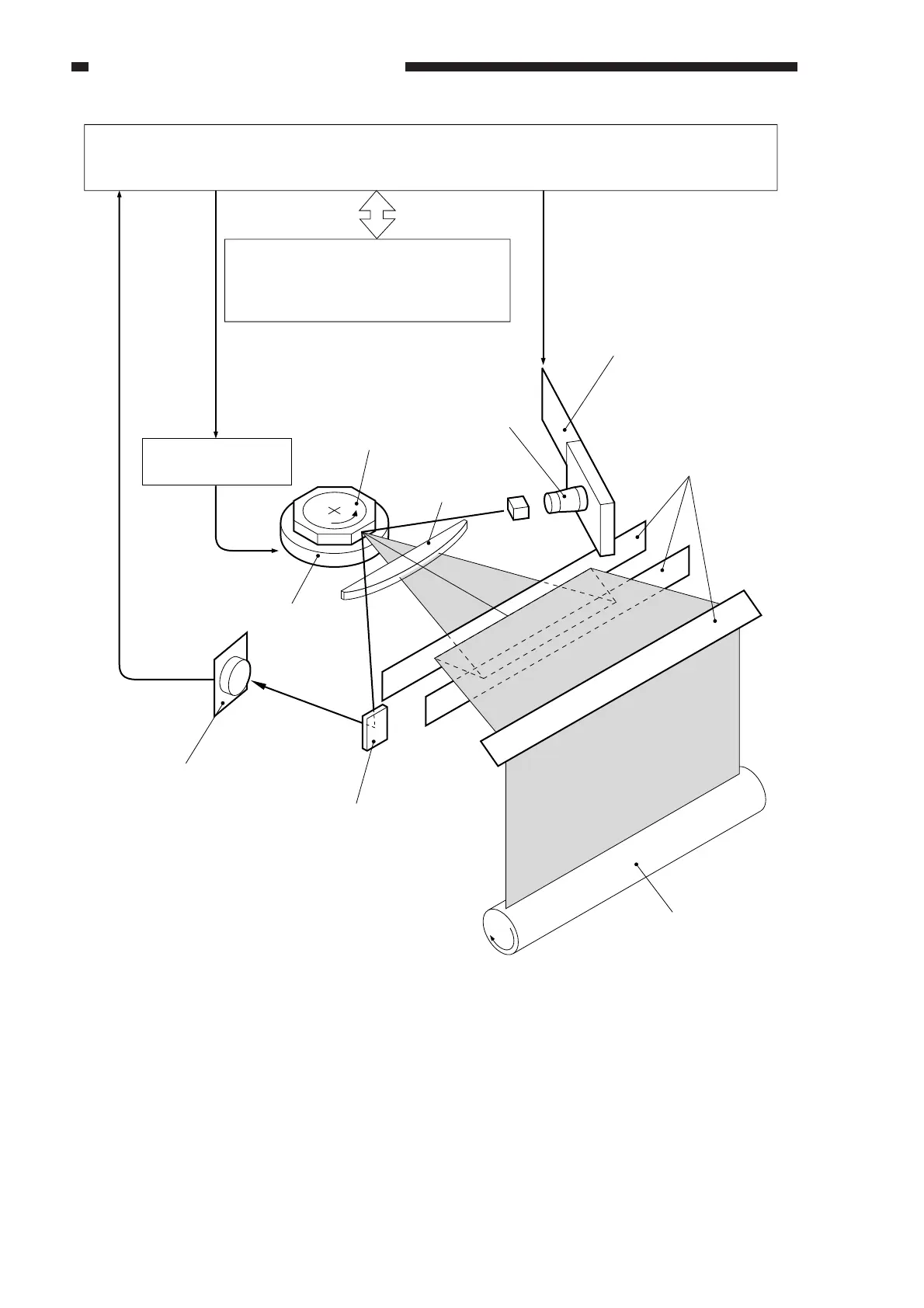

Figure 5-101
Image processor PCB
Laser driver PCB
DC controller PCB
Photosensitive drum
BD PCB
Laser mirrors
BD mirror
8-facet mirror
Laser scanner motor
Collimating lens
Laser unit
BD signal
Laser scanner motor drive signal
Laser scanner drive PCB
Laser drive signal
