CHAPTER 6 IMAGE FORMATION SYSTEM
III. DRUM CLEANER
A. Outline
The drum cleaner consists of the cleaning blade, waste toner sensor (PS14), and waste toner
feeding blade.
The waste toner scarped off the drum is moved to the rear of the cleaner case by the feeding
blade, which is driven by the main motor. The waste toner case is monitored by the waste toner
sensor (PS14).

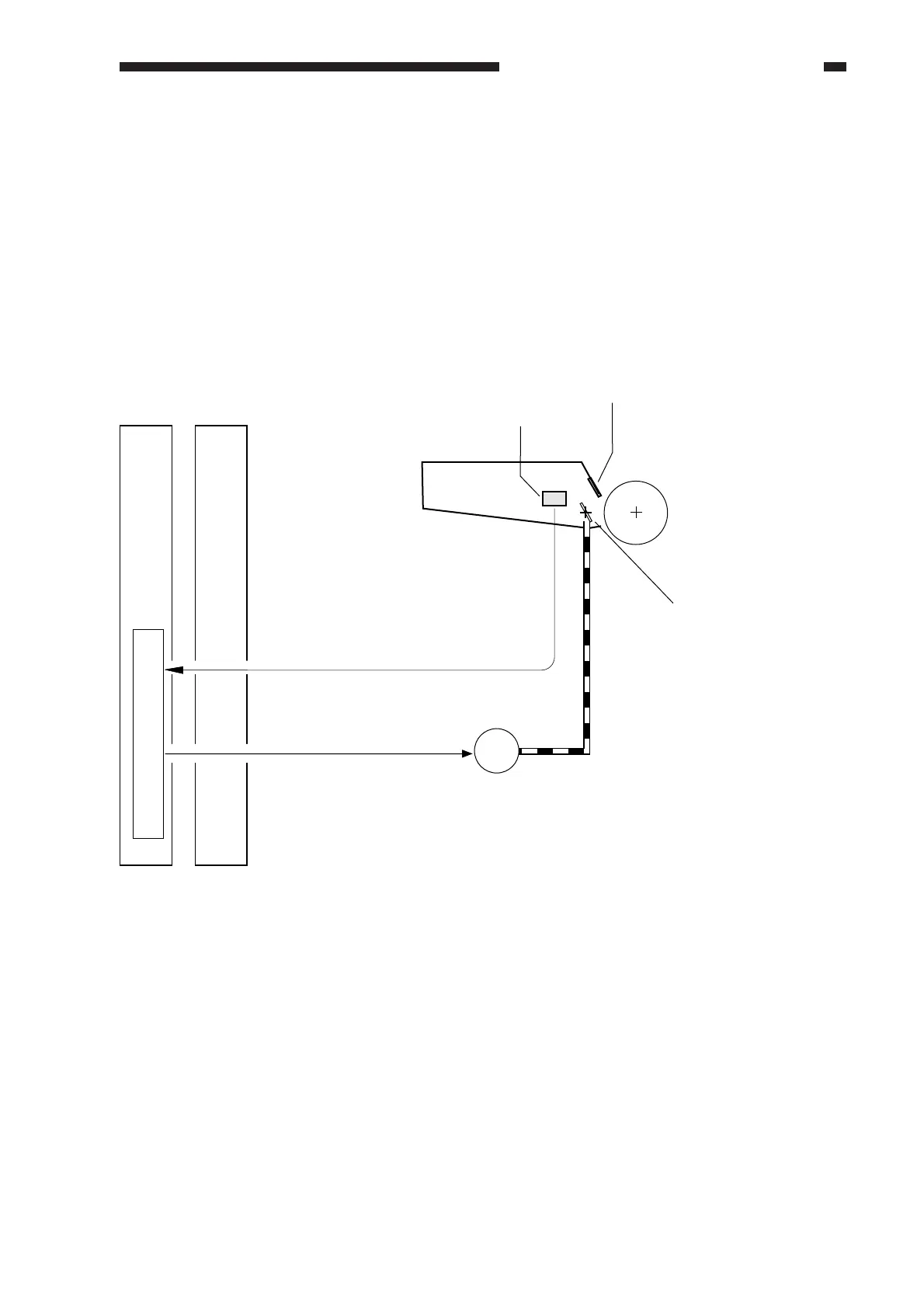

Figure 6-301
Waste toner
sensor (PS14)
Waste toner feeding blade
Photosensitive drum
Main motor
DC controller PCB
Image processor PCB
DC-CPU
Cleaning blade
M1
J102
J102
Waste toner case full detection
signal (PS14S)
Main motor drive signal (M1D)
